Wire around the cockpit.

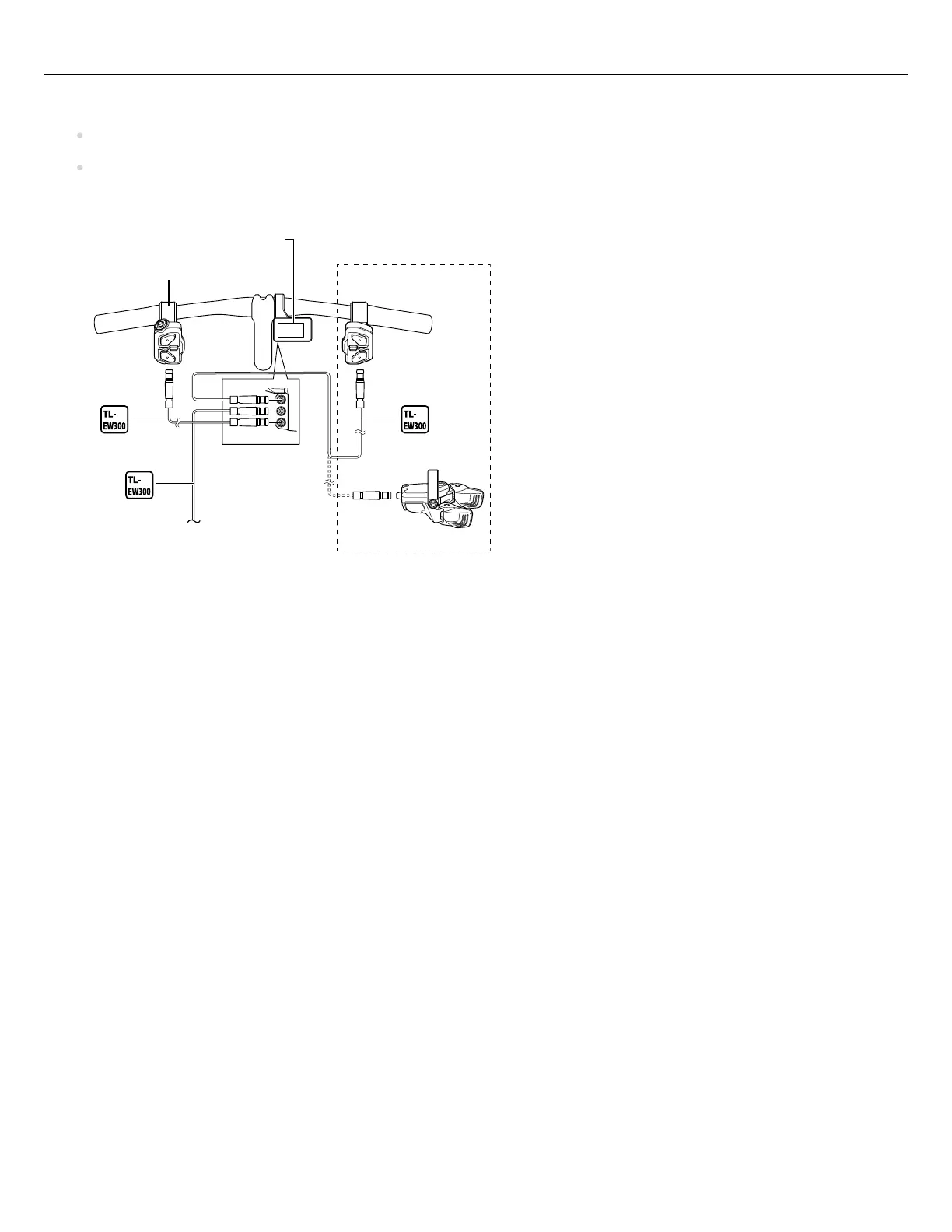

Connect the cycle computer and the switch units using the electric wires.
A switch unit, satellite system ON/OFF switch, or drive unit can be connected to any of the E-TUBE ports on
the cycle computer. However, it is recommended to connect as shown in the figure.
Left switch
Right switch
Cycle computer
To drive unit or satellite
system ON/OFF switch
1.
Prepare to wire to the drive unit.
Refer to the “ SHIMANO STEPS Dealer's Manual ” when directly connecting to a drive unit.
When connecting to a satellite system ON/OFF switch, refer to the “ SHIMANO STEPS Special Battery Parts
Dealer's Manual .”
2.
Installation/removal
Wiring around the cockpit (clamp band type cycle computer)
34
To Next Page
