Example: Routing the electric wire
When using cord bands, the electric wire connected to the cycle computer can be secured along the handlebar.
The same applies when connecting the switch unit to the right side of the handlebar.

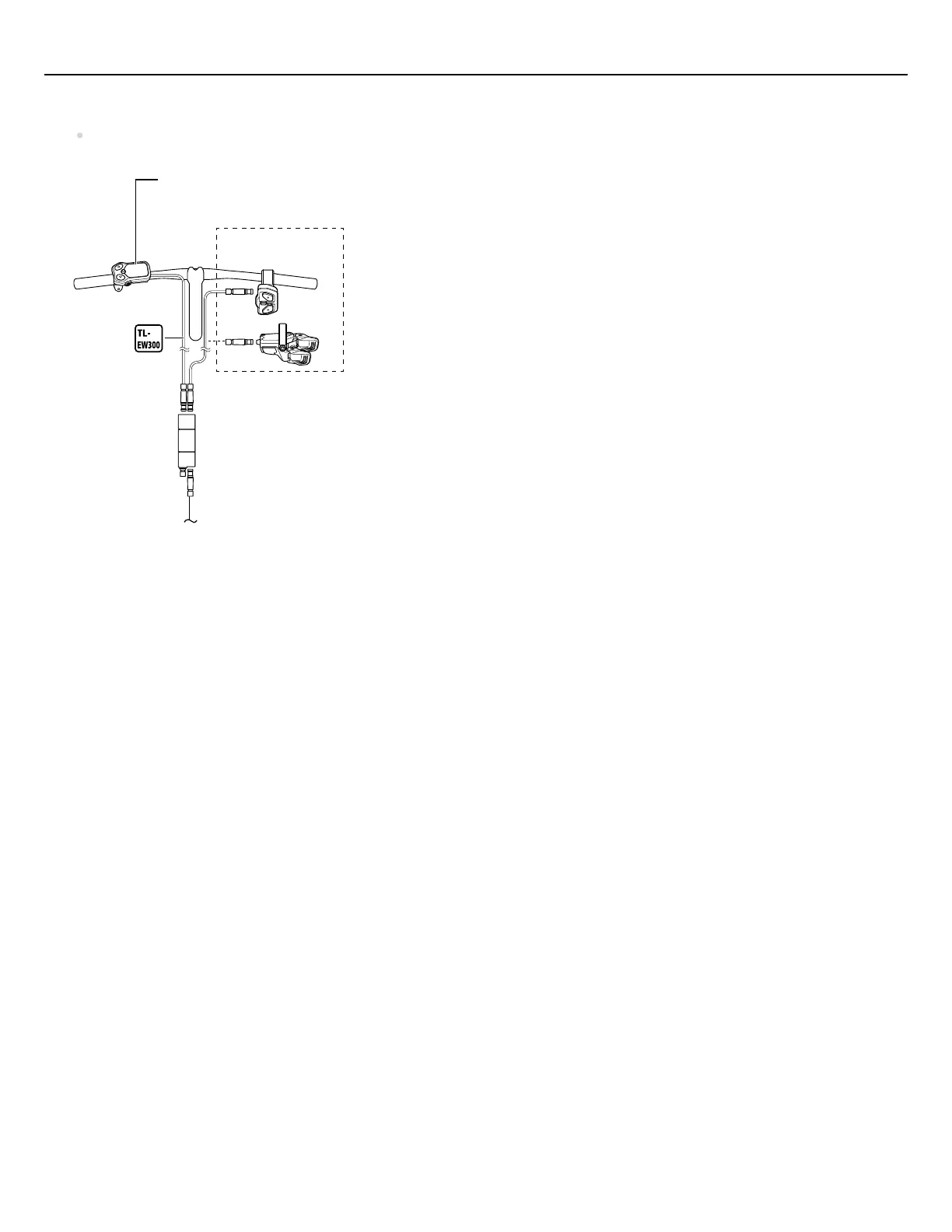

Wire around the cockpit.
Cycle computer
Right switch
To drive unit
Connect the cycle computer and the switch units using the electric wires.
1.
Prepare to wire to the drive unit.
Refer to the “ SHIMANO STEPS Dealer's Manual ” when directly connecting to a drive unit.
When connecting to a satellite system ON/OFF switch, refer to the “ SHIMANO STEPS Special Battery Parts
Dealer's Manual .”
2.
Installation/removal
Wiring around the cockpit (switch unit integrated type cycle computer)
38
