12(29)
2. Structure Characteristics and Working Principle
2.1 Working Principle

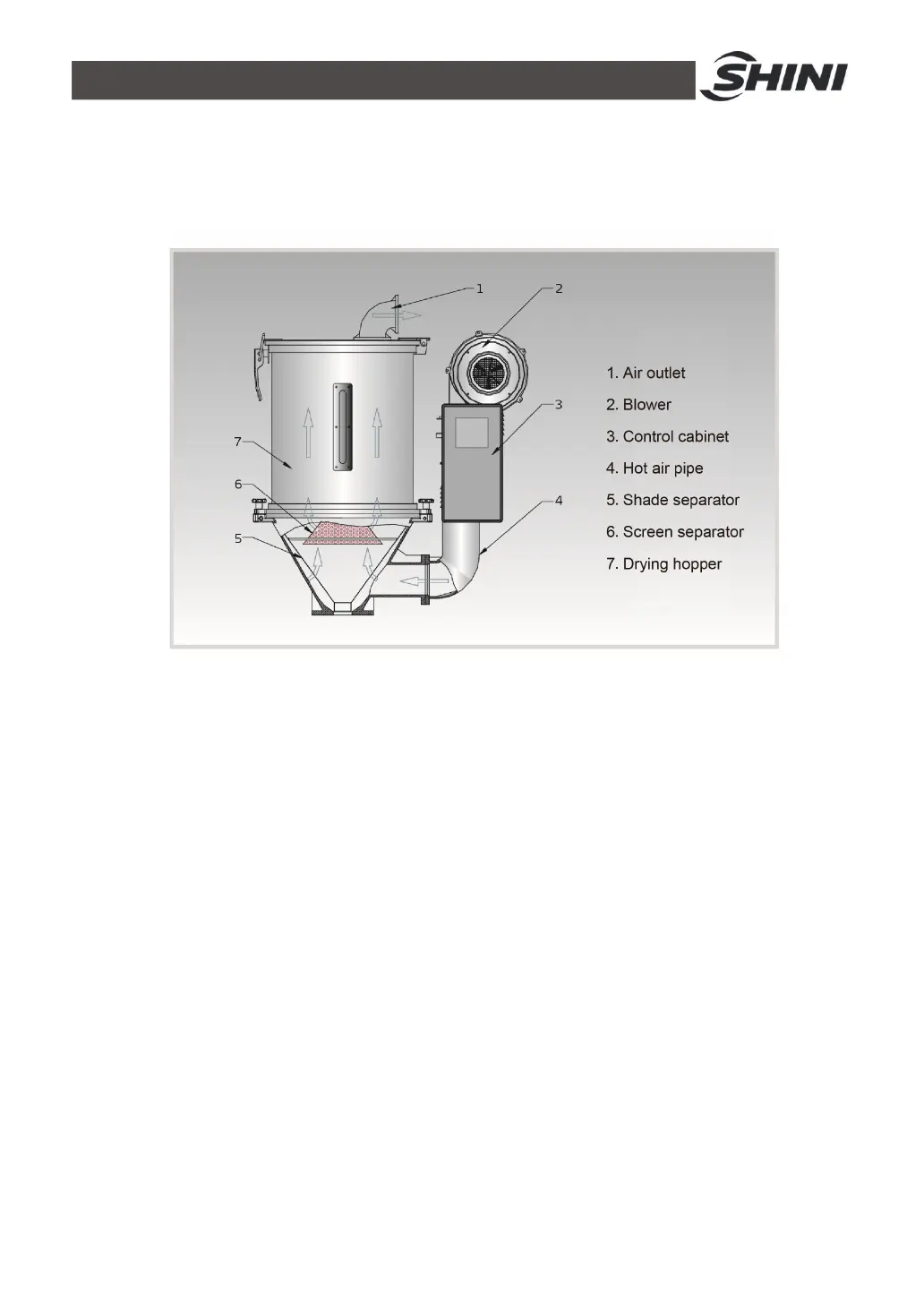

Picture 2‑1 Working principle
In the drying process, hot air with constant temperature is blown by the drying
blower of SHD-E. After drying, moisture will be separated out and taken away by
hot air, thus to gain a satisfied drying effect. Air blown out of blower via pipe heater
became high temperature drying air after being heated. Through shade separator
and screen protector, hot air can be evenly dispersed to the material in drying
hopper (see picture). Hot air recycler is optional so the air entered drying blower
after being filtered by return air will get into the drying blower to form a closed loop
circle, which saves electricity.
