Picture 3‑2：Blower
3.4 Installation of the Options
3.4.1 Installation of Air-Exhaust Filter
If the materials contain dust or to avoid the dust-contain air exhausted by dryer
polluting the workshop’s environment. Option with air-exhaust filter ADC can filter
the exhausted air from the dryer. ADC can reach filter efficiency of 99%.
ADC is installed on air-exhaust elbow of the dryer. Point it to the installed holes
then tighten up the screws, use rubber ring to seal the combined place.

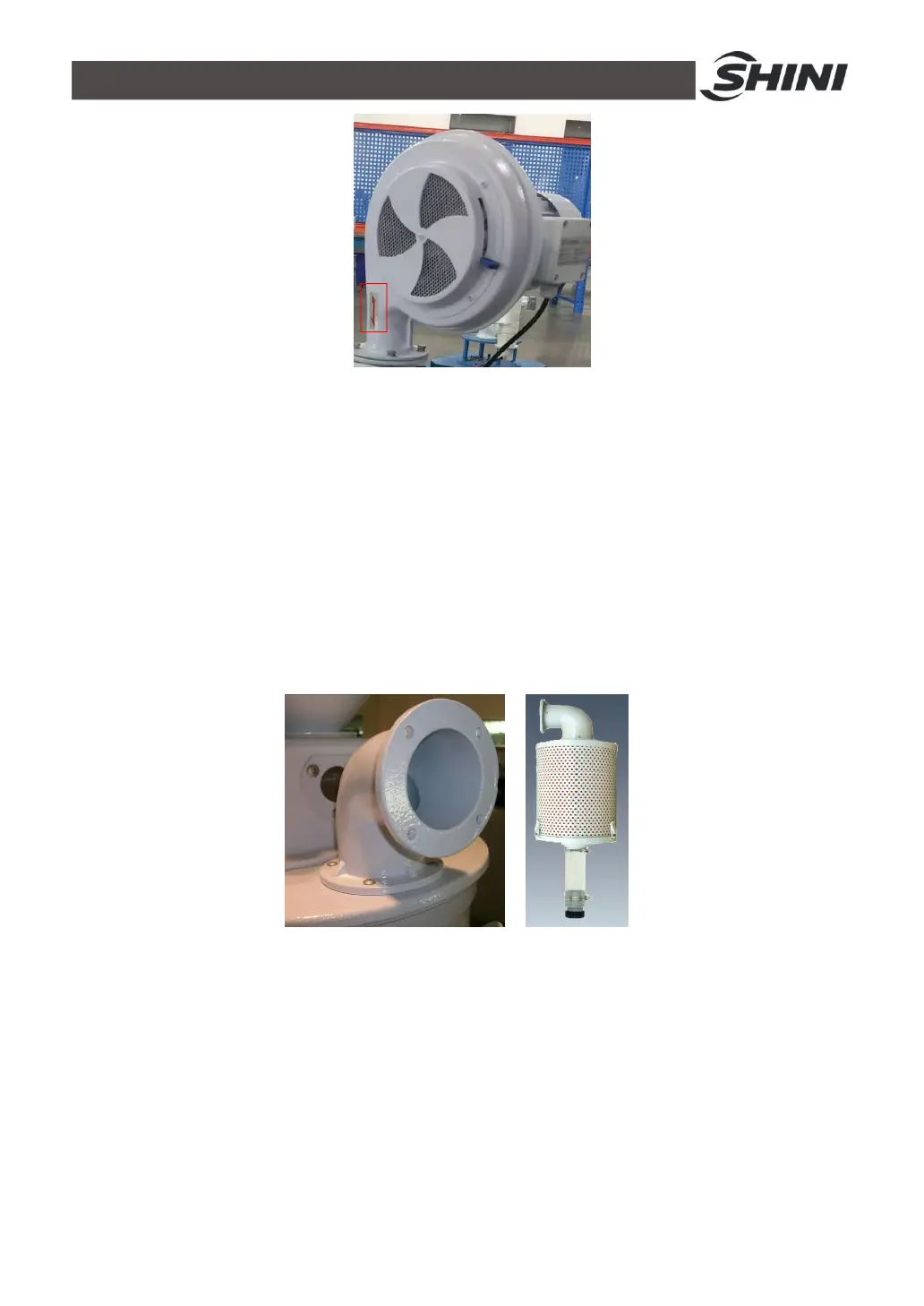

Picture 3‑3：Left：Air-exhaust elbow of dryer Right：Air-exhaust filter
3.4.2 Suction Box Installation
