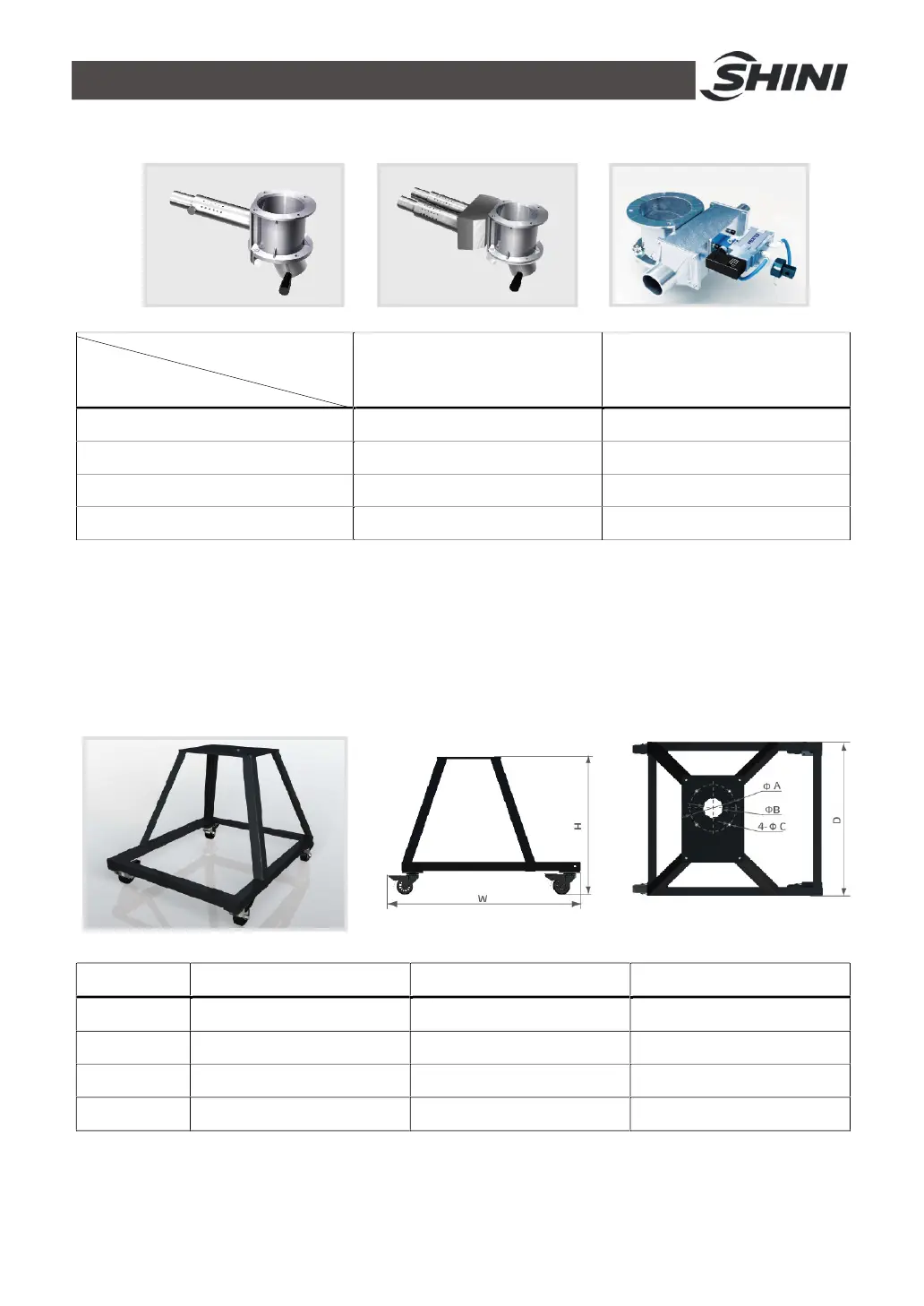

2.2.6 European Suction Box/Shut-off Suction Box
Applied
Model
SHD-12E~75E SHD-100E~400E
SBU -20-38S -160-38S
SBU -20-50S -160-50S
SBU -20-38D -160-38D
SBU -20-50D -160-50D
Notes：1) Install penumatic shut-off valve (Add “V” at the end of the model code.)
2) Change into stainless steel material (Add “S” at the end of the model code.)
3) Stainless steel polishing (Add “P” at the end of the model code.)
4) “S” stands for single tube suction box and “D” stands for double tubes suction
box.
5) It must use with the floor stand.
2.2.7 N-Type Floor Stand
Model Applied to Dimension H×W×D(mm) A / B / C (mm)
FSN-50 SHD-12E~75E 600×700×640 140/54/ 9
FSN-100 SHD-100E/150E 615×800×710 210/90/11
FSN-200 SHD-200E/300E 680×1000×840 210/90/11
FSN-400 SHD-400E~600E 700×1200×1010 260/116 /13
With which machines can be easily moved out of workplace which is suitable for
the factories with height limited workshops and also it can make operations more
convenient. The N-type floor stand can replace any machine that is applicable to
