Shini SIC-A Series User Manual

16(43)
2.2 Main Components and Functions
2.2.1 Compressor
1) It compresses and conveys the refrigerant vapor that results in low and
middle of the evaporator, and middle and high pressure of the refrigerantor,
which is the core part of whole system.
2) Our company produces scroll and piston compressors.
3) The power of common compressors is 25％-30％ cooling capacity of the
water chiller.

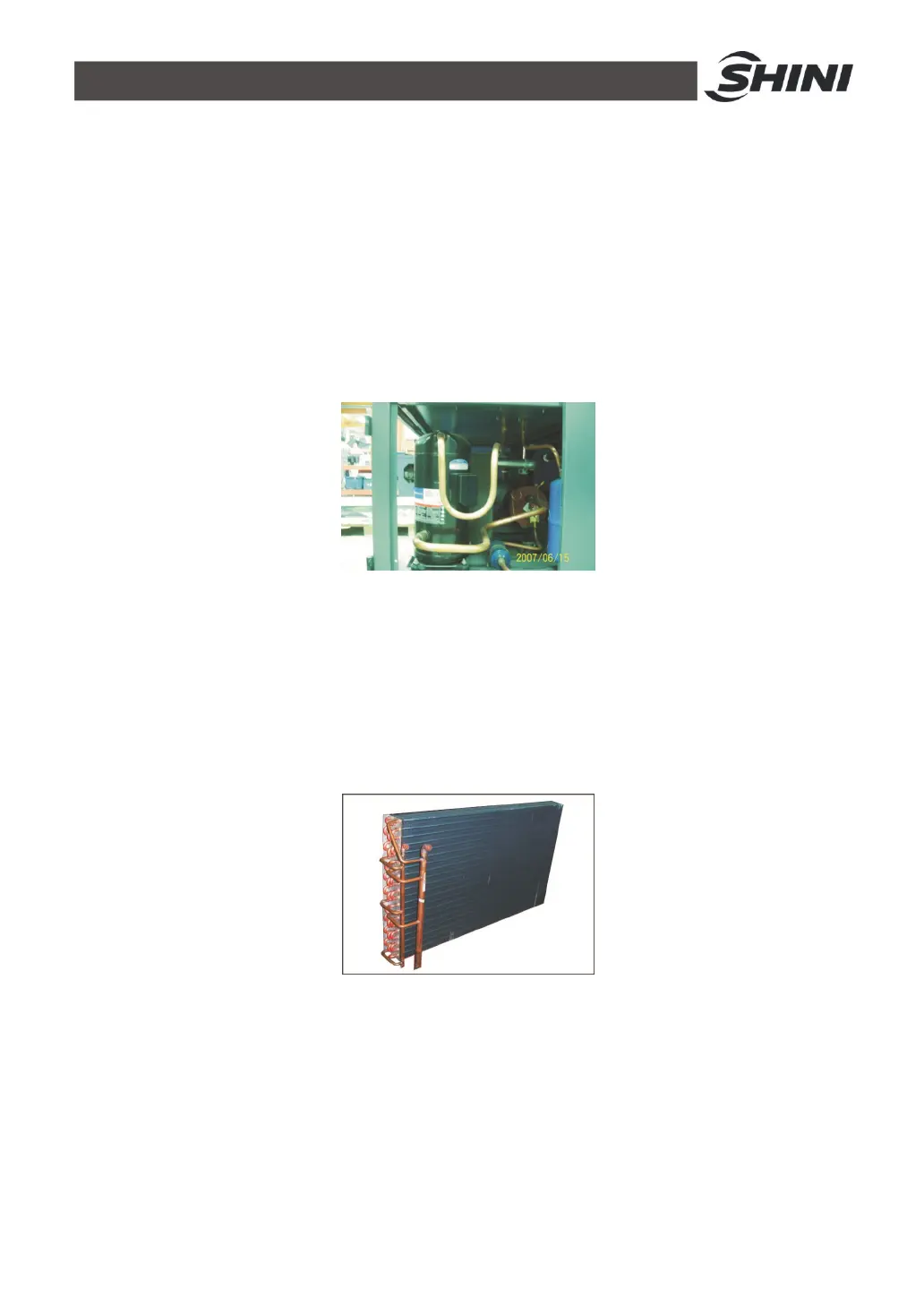

Picture 2-2：Compressor
2.2.2 Condenser
1) It is the heat output device, which can discharge the heat absorbed by the
refrigerant in the evaporator and the heat converted by the compressor
consumption to the cooling medium.
2) Our company uses the air-cooled condenser (Tube-fin style).
Picture 2-3：Condenser
2.2.3 Drying Filter
1) Drying filter function: Remove the impurities in the refrigerant, and absorb the
free moisture in the refrigerant to prevent ice blocked in the narrow section of
the pipeline (especially at the thermal expansion valve port).
2) The filter size is usually selected according to the refrigerant pipe diameter.
3) It is mounted in front of the thermal expansion valve to protect the valve’s
