24(43)
3.2 Installation Diagram
Parts Name
1. Water chiller 5. Water refill port 9. Chilled water circulation
2. Chilled water inlet 6. Chilled water tower 10. Mould Cooling
3. Chilled water outlet 7. Cooling water pump 11. Cooling tank
4. Drain port 8. Cooling water circulation 12. Oil Cooling

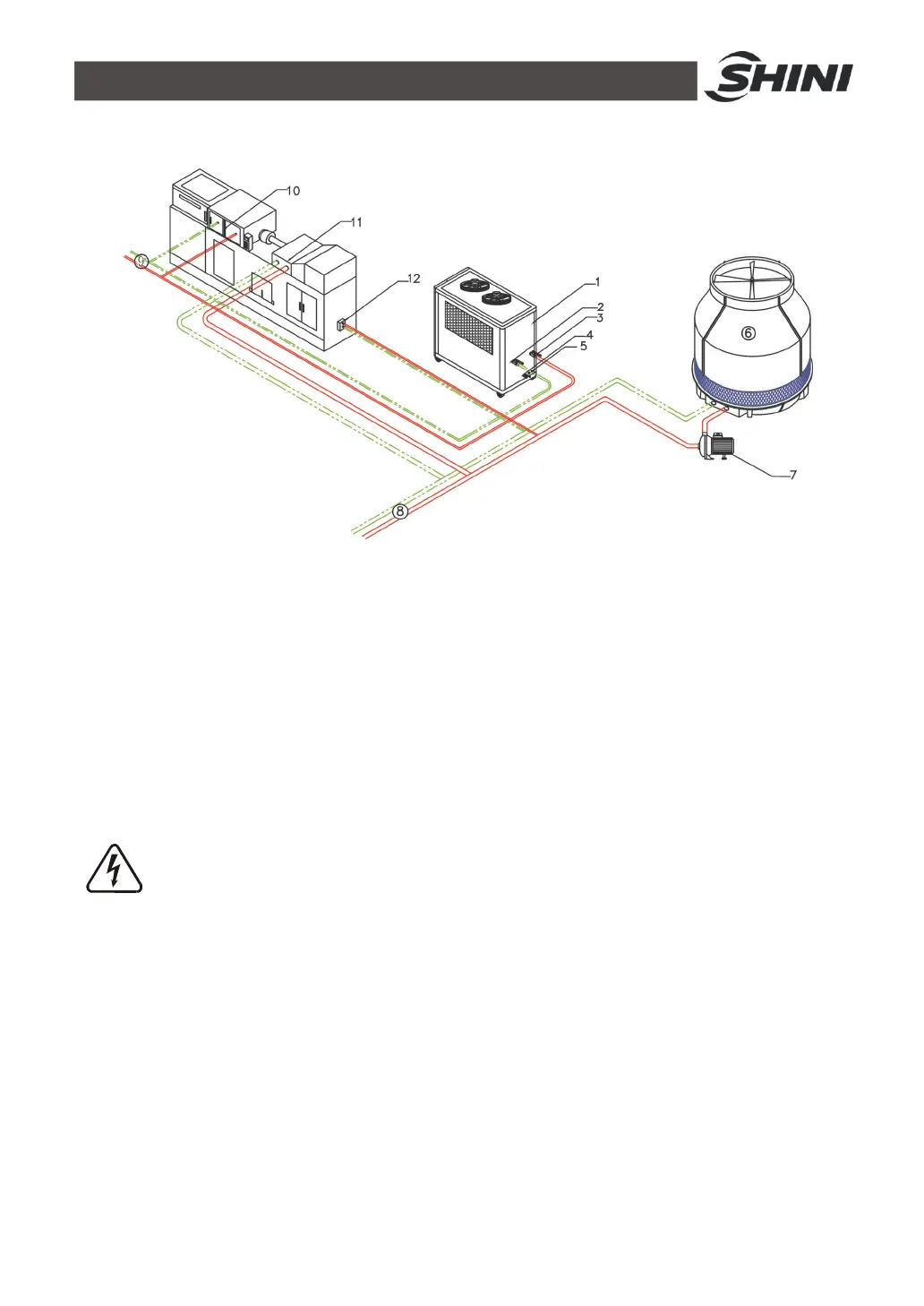

Picture 3-1 Machine Installation Location
3.3 Power Connection
The SIC-A series must be connected with the power of 3Φ 400V 50Hz and earth
wire.
Attention!
Before power connection, please make sure that the main power switch is
turned off!
