25(43)
4. Application and Operation

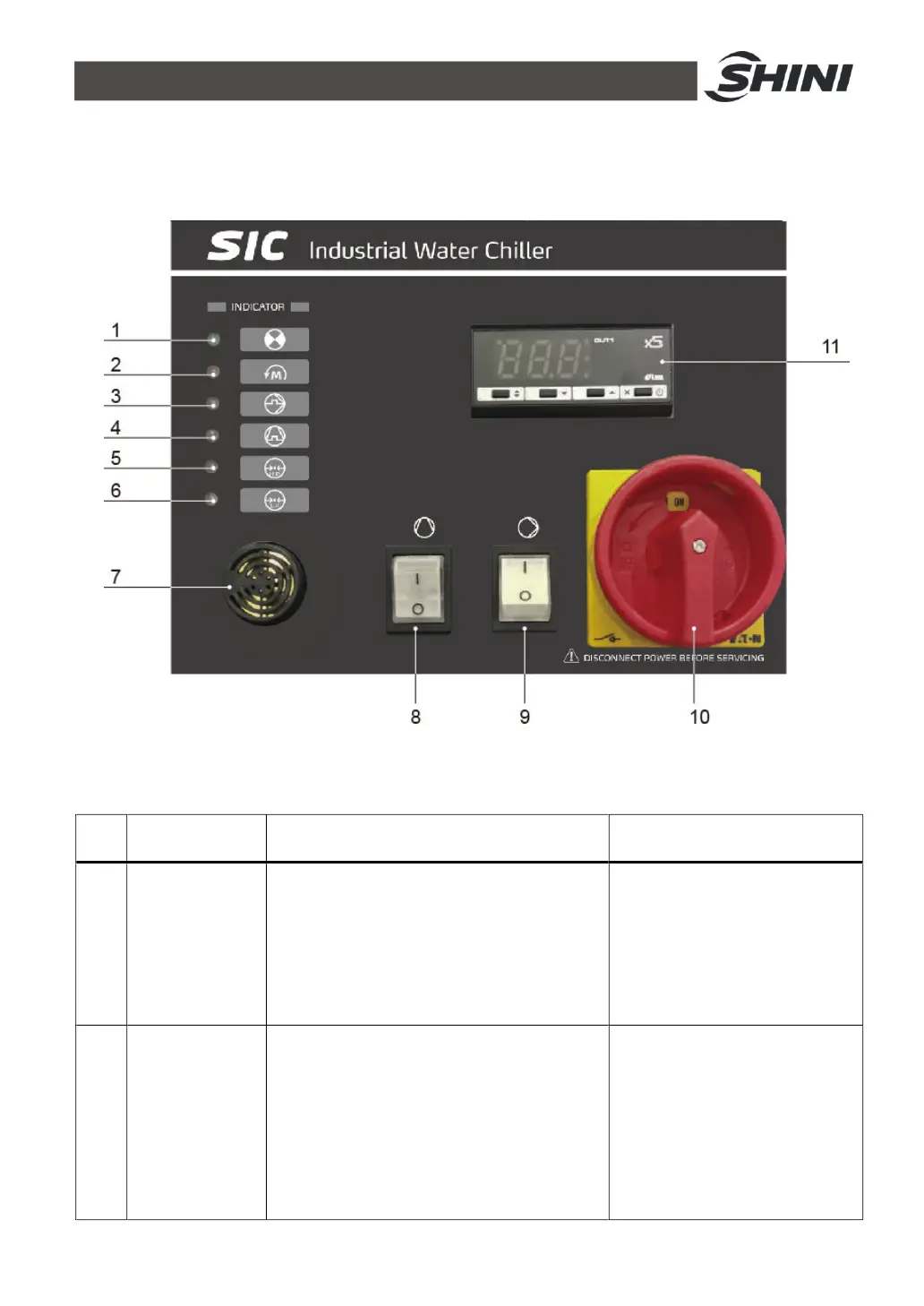

4.1 Panel Description
Picture 4-1: Panel Description
Table 4-1：Panel Description
No.
Name Functions Remarks
1 Power indicator
Connect through power supply and turn on
the main switch, the indicator will light up.
Note: Don’t try to remove any
unit or touch any terminal after
the power is turned on.
Otherwise, electric shock may
be caused.
2
Power
anti-phase
alarm light
When the power is connected to wrong
phase sequence or the power is in phase
shortage, this light will be on, and the buzzer
will sound the alarm.
The system stops working.
After checking the power,
exchange any two of the power
incoming wires to troubleshoot.
The light and buzzer will be reset
after troubleshooting.
To Next Page
