1.3 Technical Specifications
1.3.1 External Dimensions

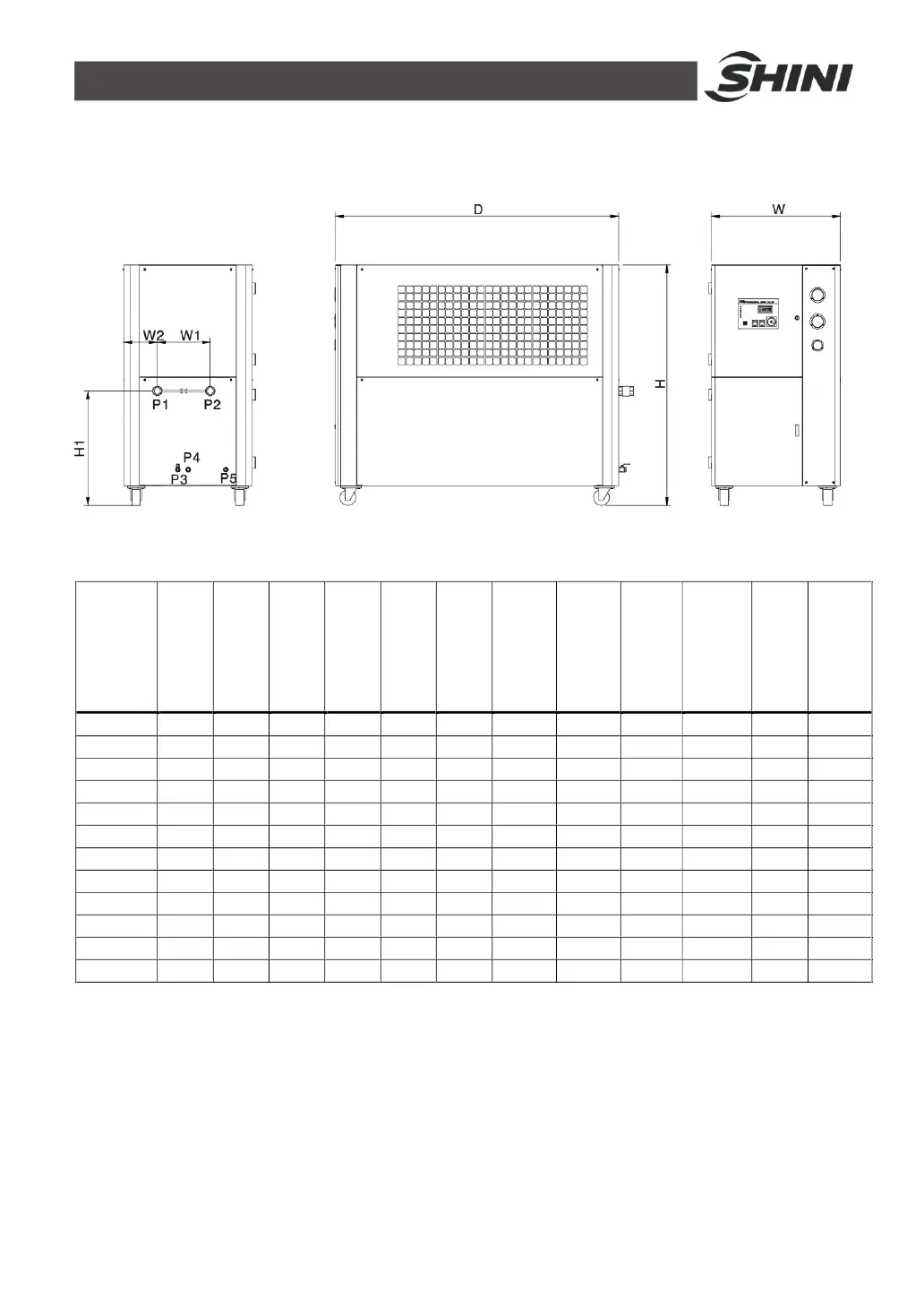

Picture 1-1: Outline Dimensional Drawing
Table 1-1: Specifications
Model
H
(mm)
H1
(mm)
W
(mm)
W1
(mm)
W2
(mm)
D
(mm)
P1
(inch)
Chilled
Water
Inlet
P2
(inch)
Chilled
Water
Outlet
P3
(inch)
Water
Tank
Outfall
P4
(inch)
Water
Tank
Overfall
P5
(inch)
Water
Tank
Refill
Port
Weight
(kg)
SIC-3A 1200 625 685 277 200 1190 1 1 1/2 1/2 1/2 260
SIC-5A 1400 640 735 360 174 1320 1 1 1/2 1/2 1/2 315
SIC-8A 1350 640 735 300 204 1610 1
1
/
2
1
1
/
2
1/2 1/2 1/2 400
SIC-10A 1440 640 735 300 204 1610 1
1
/
2
1
1
/
2
1/2 1/2 1/2 420
SIC-12.5A 1520 648 905 457 189 1780 2 2 1/2 1/2 1/2 520
SIC-15A 1520 648 905 457 189 1780 2 2 1/2 1/2 1/2 560
SIC-20A 1950 700 1200 450 150 2920 2 2 1 1/2 1/2 775
SIC-25A 1950 700 1200 450 150 2920 2 2 1 1/2 1/2 800
SIC-30A 1950 760 1200 430 160 2920 2
1
/
2
2
1
/
2
1 1/2 1/2 840
SIC-40A 1970 780 1300 450 200 3390 2
1
/
2
2
1
/
2
1 1 1 1400
SIC-45A 1970 780 1300 450 200 3800 2
1
/
2
2
1
/
2
1 1 1 1800
SIC-50A 1970 823 1420 700 360 4000 2
1
/
2
2
1
/
2
1 1 1 2000
