3.2 Installation Diagram
Parts Name
1. Water chiller
2. Chilled water outlet
3. Chilled water inlet
4. Cooling water outlet
5. Cooling water inlet
6. Drain port
7. Cooling water tower
8. Cooling water pump
9. Chilled water circulation
10. Cooling water circulation
11. Mould Cooling
12. Cooling hopper
13. Oil cooling

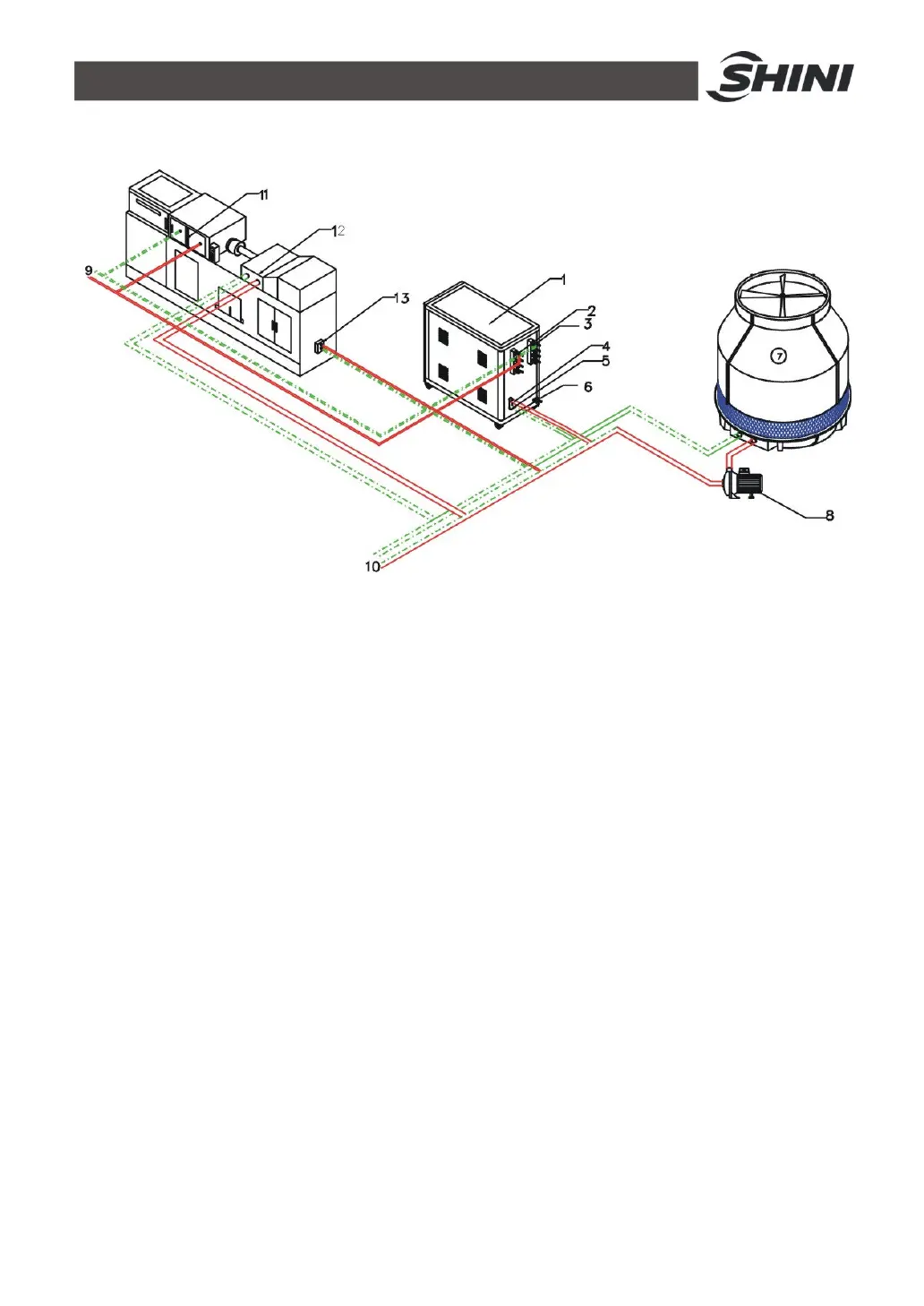

Picture 3-1Machine Installation Location
