1.3 Technical Specifications
1.3.1 External Dimensions

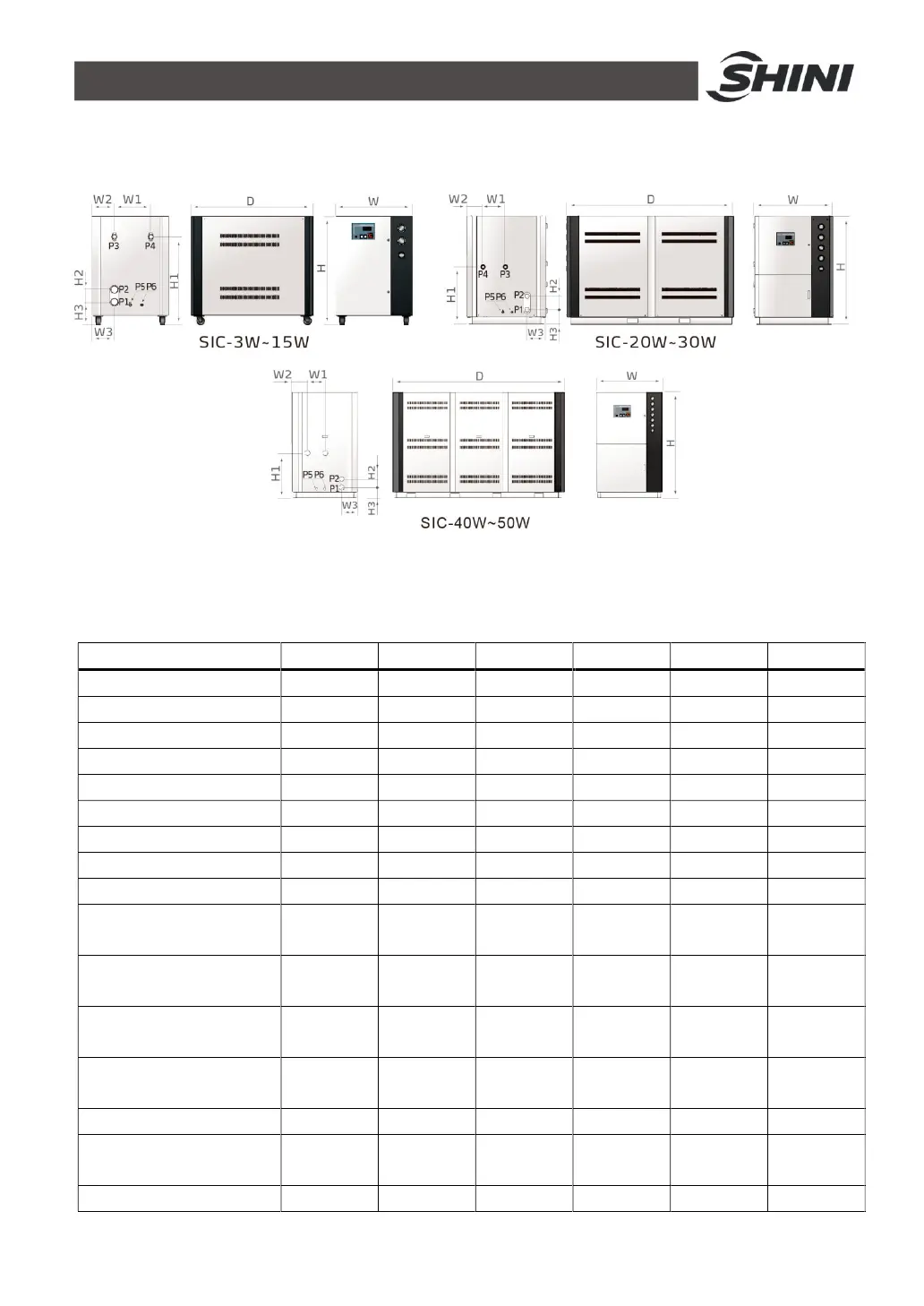

Picture 1-1: Outline Dimensional Drawing
Table 1-1: Specifications List (1)
Model SIC-3W SIC-5W SIC-8W SIC-10W SIC-12.5W SIC-15W
H(mm) 970 970 1050 1050 1200 1200
H1(mm) 790 790 910 910 1078 1078
H2(mm) 91 91 140 140 140 140
H3(mm) 207 207 225 225 308 308
W(mm) 550 550 830 830 865 865
W1(mm) 273 273 370 370 459 459
W2(mm) 164 164 230 230 202 202
W3(mm) 164 164 230 230 162 162
D(mm) 1080 1080 1200 1200 1470 1470
P1 cooling water inlet
(inch)
1 11/2 11/2 2 2 21/2
P2 cooling water outlet
(inch)
1 11/2 11/2 2 2 21/2
P3 freezing water inlet
(inch)
1 1 11/2 11/2 2 2
P4 freezing water outlet
(inch)
1 1 11/2 11/2 2 2
P5
water tank outlet (inch)
11/2 11/2 11/2 11/2 11/2 11/2
P6 water tank overflow
port (inch)
11/2 11/2 11/2 11/2 11/2 11/2
Weight(kg) 230 290 400 410 610 640

Shini SIC-W Specifications

General

Brand	Shini
Model	SIC-W
Category	Chiller
Language	English
