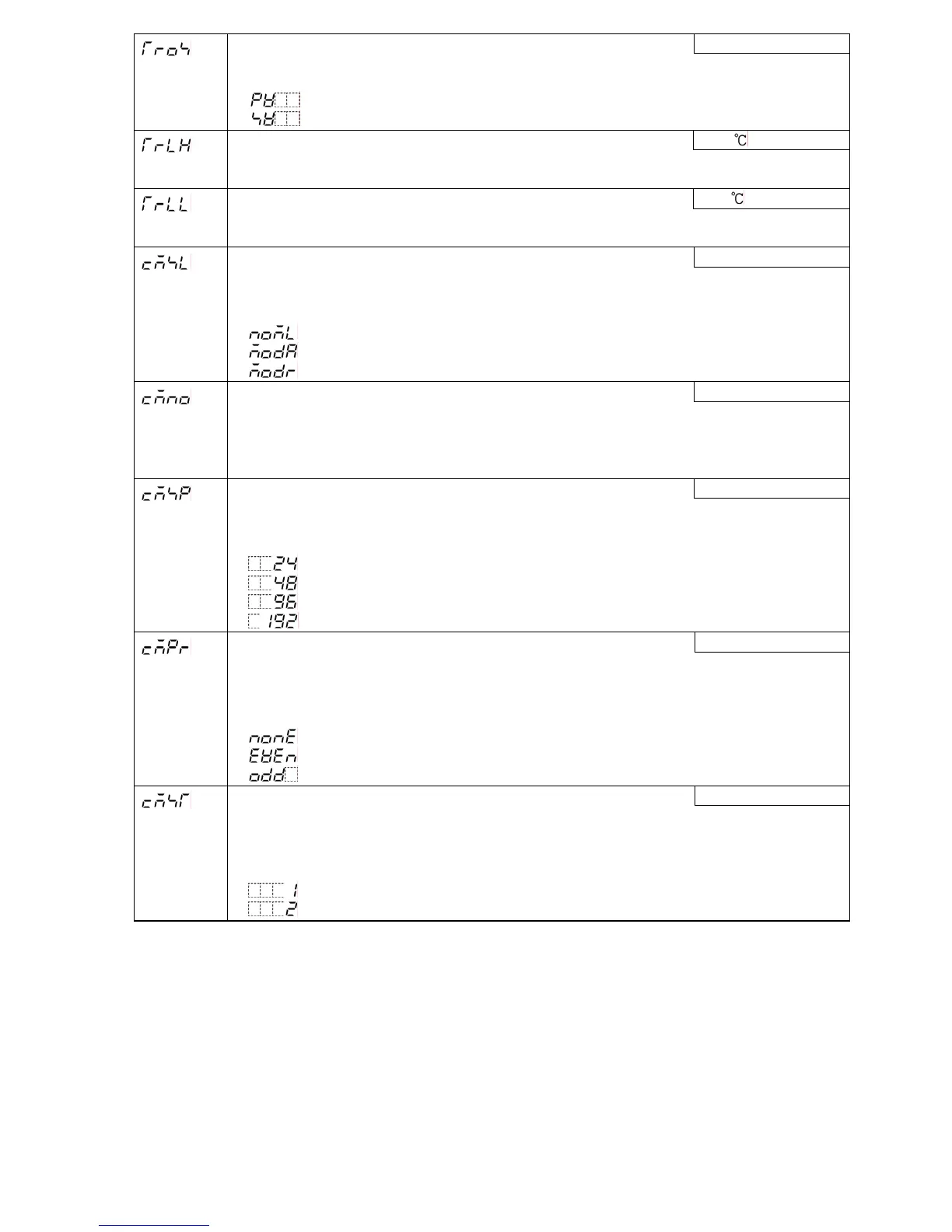

Transmission output mode selection PV transmission
• Selects PV or SV transmission.
• Selection item:
: PV transmission
: SV transmission
Transmission output high limit setting 1370
• Sets Transmission output high limit value.
• Setting range: Transmission output low limit value to Input range high limit value
Transmission output low limit setting -200
• Sets Transmission output low limit value.
• Setting range: Input range low limit value to Transmission output high limit value.
Communication protocol selection Shinko protocol
• Selects the communication protocol.
• Available only when the C5 option is applied.
• Selection:
: Shinko protocol
: Modbus ASCII mode
: Modbus RTU mode
Instrument number setting 0
• Sets the instrument number individually to each instrument when communicating
by connecting plural instruments in serial communication.
• Available only when the C5 option is added.
• Setting range: 0 to 95
Communication speed selection 9600bps
• Selects a communication speed equal to that of the host computer.
• Available only when the C5 option is added.
• Selection:
: 2400bps
: 4800bps
: 9600bps
: 19200bps
Parity selection Even parity
• Selects the parity.
• Not available if the C5 option is not added or if Shinko protocol is selected
during the Communication protocol selection.
• Selection:
: No parity
: Even parity
: Odd parity
Stop bit selection 1
• Selects the stop bit.
• Not available if the C5 option is not added or if Shinko protocol is selected
during the Communication protocol selection.
• Selection:
: 1
: 2
