Shinko JCD-33A-R/M User Manual

5
3.2mm
5.8mm or less
3.2mm
5.8mm or less

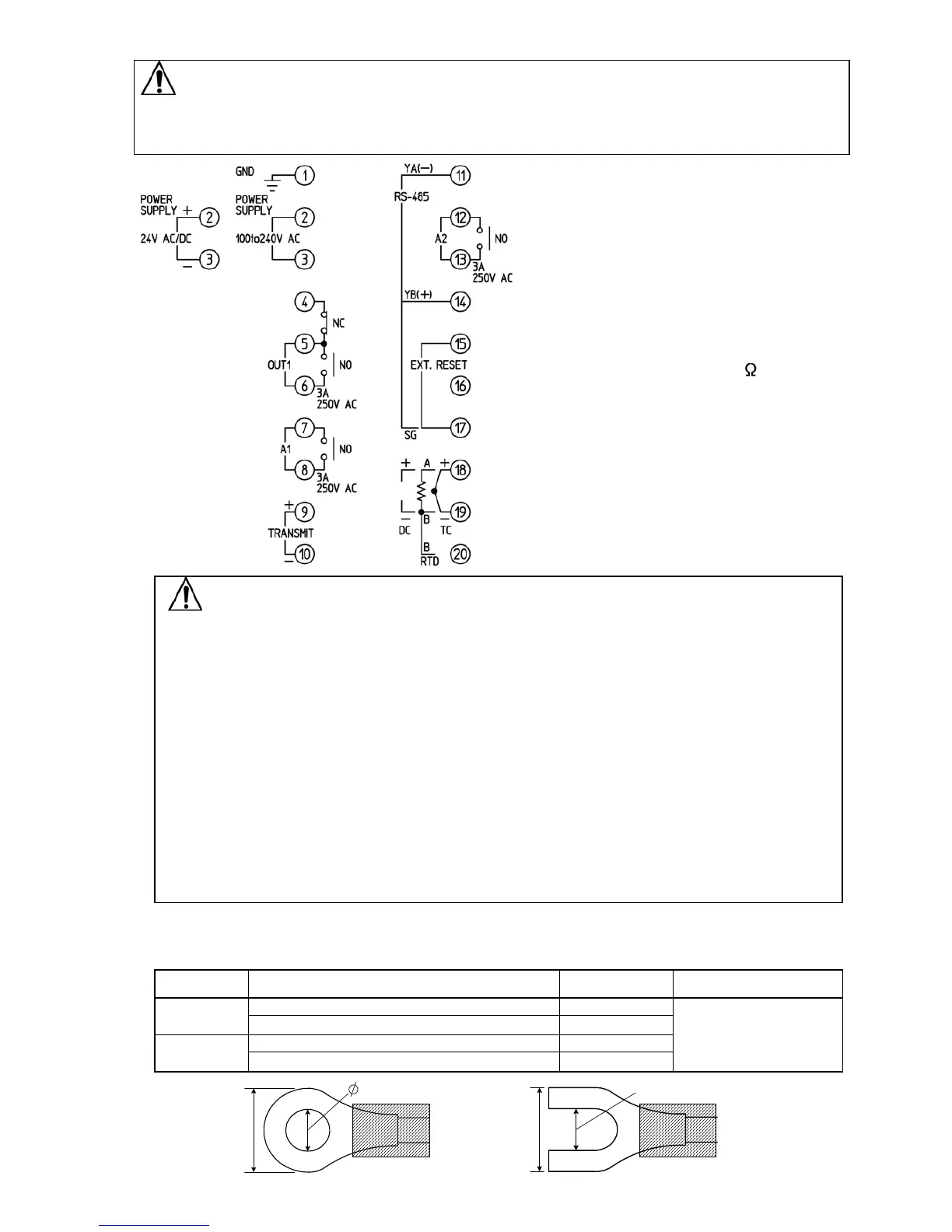

4. Wiring
Warning
Turn the power supply to the instrument off before wiring or checking.
Working or touching the terminal with the power switched on may result in severe injury
or death due to Electric Shock.
• OUT1 : Limit control output
• A1 : Alarm 1 (A1) output
• TRANSMIT : Transmission output
• EXT.RESET: External reset input
• RS-485 : Serial communication
(C5 option)
• DC
: DC current, DC voltage
input
For DC current input,
c
onnect 50 shunt
resistor between input
terminals.
• TC : Thermocouple input
• RTD : Resistance temperature
detector input
Notice
• The terminal block of the JCD-33A is designed to be wired from the left side.
The lead wire must be inserted from the left side of the terminal, and fastened by the terminal screw.
• Use a thermocouple and compensating lead wire that correspond to the sensor input
specification of this controller.
• Use the 3-wire RTD which corresponds to the input specification of this controller.
• This controller does not have built-in power switch, circuit breaker or fuse. Therefore, it is
necessary to install them in the circuit near the external controller.
(Recommended fuse: Time-lag fuse, rated voltage 250V AC, rated current 2A)
• For a 24V AC/DC power source, do not confuse polarity when using direct current (DC).
• For the OUT1 (Limit control output terminals 5-6), externally use a relay according to the
capacity of the load to protect the built-in relay contact.
• When wiring, keep input wires (thermocouple, RTD, etc.) away from AC sources or load wires
to avoid external interference.
• Do not apply a commercial power source to the sensor connected to the input terminal nor
allow the power source to come into contact with the sensor.
Lead wire solderless terminal
Use a solderless terminal with an insulation sleeve in which an M3 screw fits as shown below.
The torque is approximately 0.6N•m to 1.0N•m.
Solderless
terminal
Manufacturer Model Tightening torque
Nichifu Terminal Industries CO.,LTD.
TMEV1.25Y-3
Y type
Japan Solderless Terminal MFG CO.,LTD.
VD1.25-B3A
0.6N•m
Nichifu Terminal Industries CO.,LTD.
TMEV1.25-3
Max. 1.0N•m
Round type
Japan Solderless Terminal MFG CO.,LTD.
V1.25-3
(Fig. 4-1)
(Fig. 4-2)
