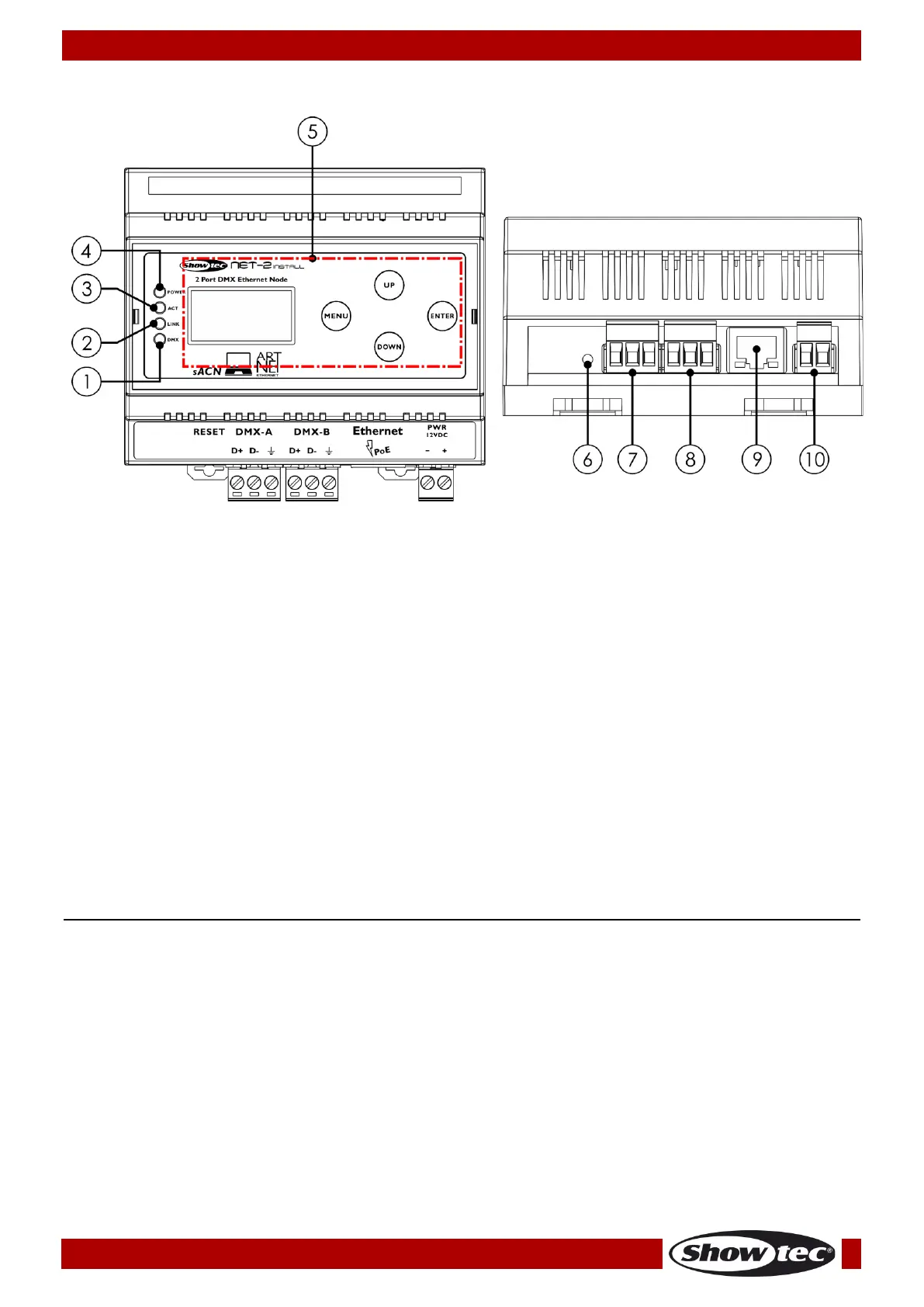

01) DMX LED indicator
This indicator lights up when there is DMX signal present on DMX ports A and B.
02) Link LED indicator
This indicator lights up when a network signal is received.
03) Activity LED indicator
This indicator lights up when there is network activity.
04) Power LED indicator
This indicator lights up when the device is powered.
05) OLED display + control buttons
06) RESET button
Press this button to reset the device to factory defaults. To reset the device via the control panel, see
6. Set Default on page 16.
07) DMX port A, 3-pin Phoenix terminal connector IN/OUT
08) DMX port B, 3-pin Phoenix terminal connector IN/OUT
09) Ethernet RJ45 connector
10) 12–36 V DC 2-pin Phoenix terminal power connector IN
Installation
Remove all packing materials from the Net-2 Install. Check that all foam and plastic padding is removed.
Connect the Net-2 Install to a power outlet. Alternatively, the Net-2 Install can be powered from the
Ethernet connection, using Power-over-Ethernet (PoE) technology. If the network switch does not support
PoE, you can use a PoE injector or a PoE hub.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
