Ordercode: 40188
Phantom 75 LED Spot
Control Modes
There are 4 modes:
 Stand-alone (Built-in programs)
 Sound-controlled
 Master/Slave
 DMX-512 (8CH, 14CH)
One Phantom (Built-in programs)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Phantom is not connected with a DMX cable, it functions as a stand-alone device.
Please see page 15 for more information about the built-in programs.
One Phantom (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Turn on the music. If the device is set to sound-control, then the Phantom will react to the beat of
the music. Please see page 15 for more information about the sound-control options.
Multiple Phantoms (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin XLR cable to connect the Phantom.
The pins:
01) Earth
02) Signal -
03) Signal +

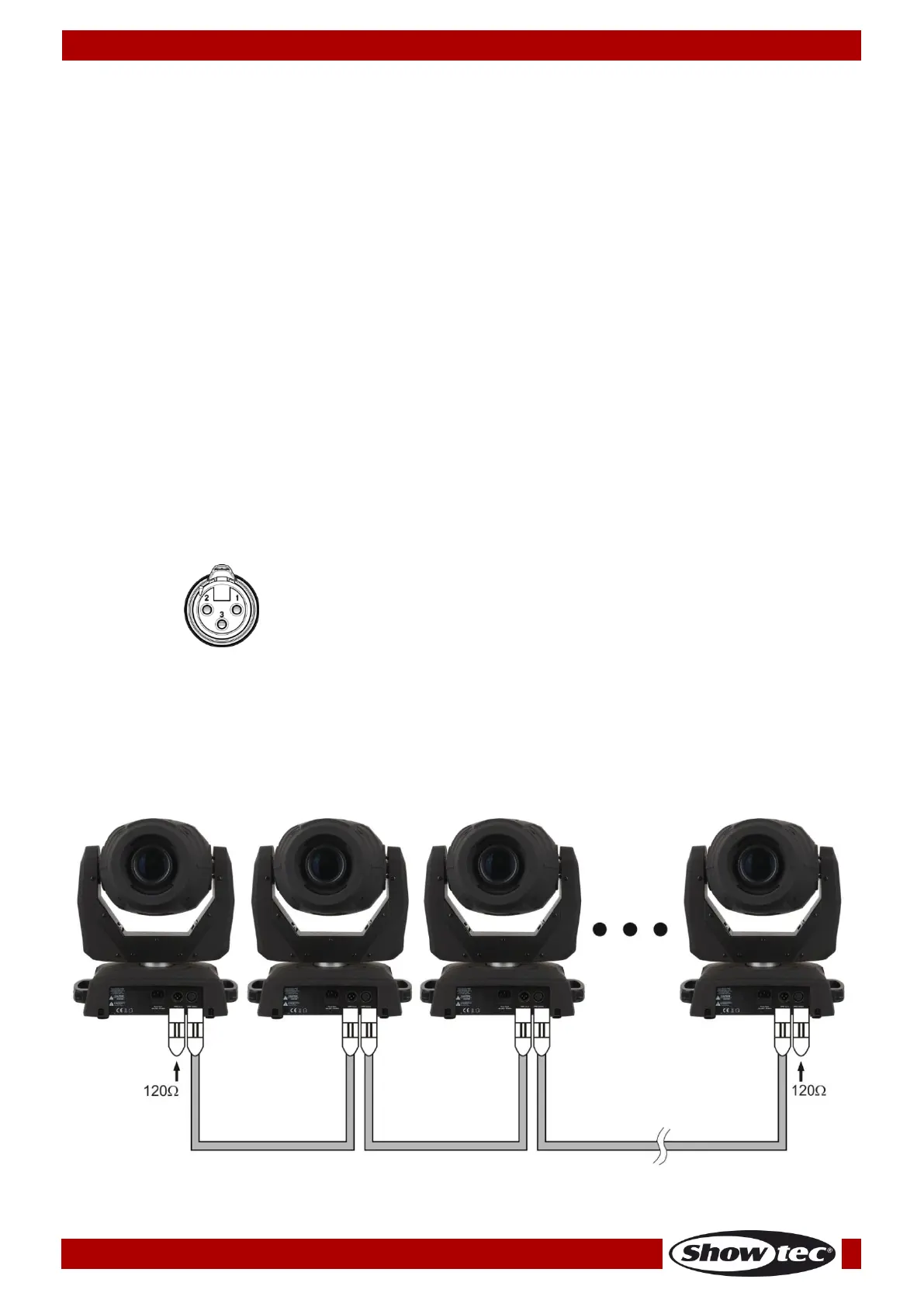

03) Link the units as shown in fig. 03. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on page 15 (Built-in programs or
Sound-controlled mode). This means that you can set your desired operation mode on the master
device and all slave devices will react the same as the master device.
Multiple Phantoms (Master/Slave control)
Fig. 03
