SHOWTEC Phantom 75 LED Spot V4 - Service Function # 2; DMX Channels; Channels

17
Ordercode: 40188
Phantom 75 LED Spot
Service Function # 2
01) Press and hold down the MODE/ESC button for 10 seconds.
02) The display will show 0000.
03) Press the UP button to set the value. Press the DOWN button to move to the following digit.
04) Enter password: 2322.
05) Press the UP/DOWN buttons to set the value.
06) Press the ENTER button to store your settings. This option will auto-exit after 10 seconds.
DMX Channels
8 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.

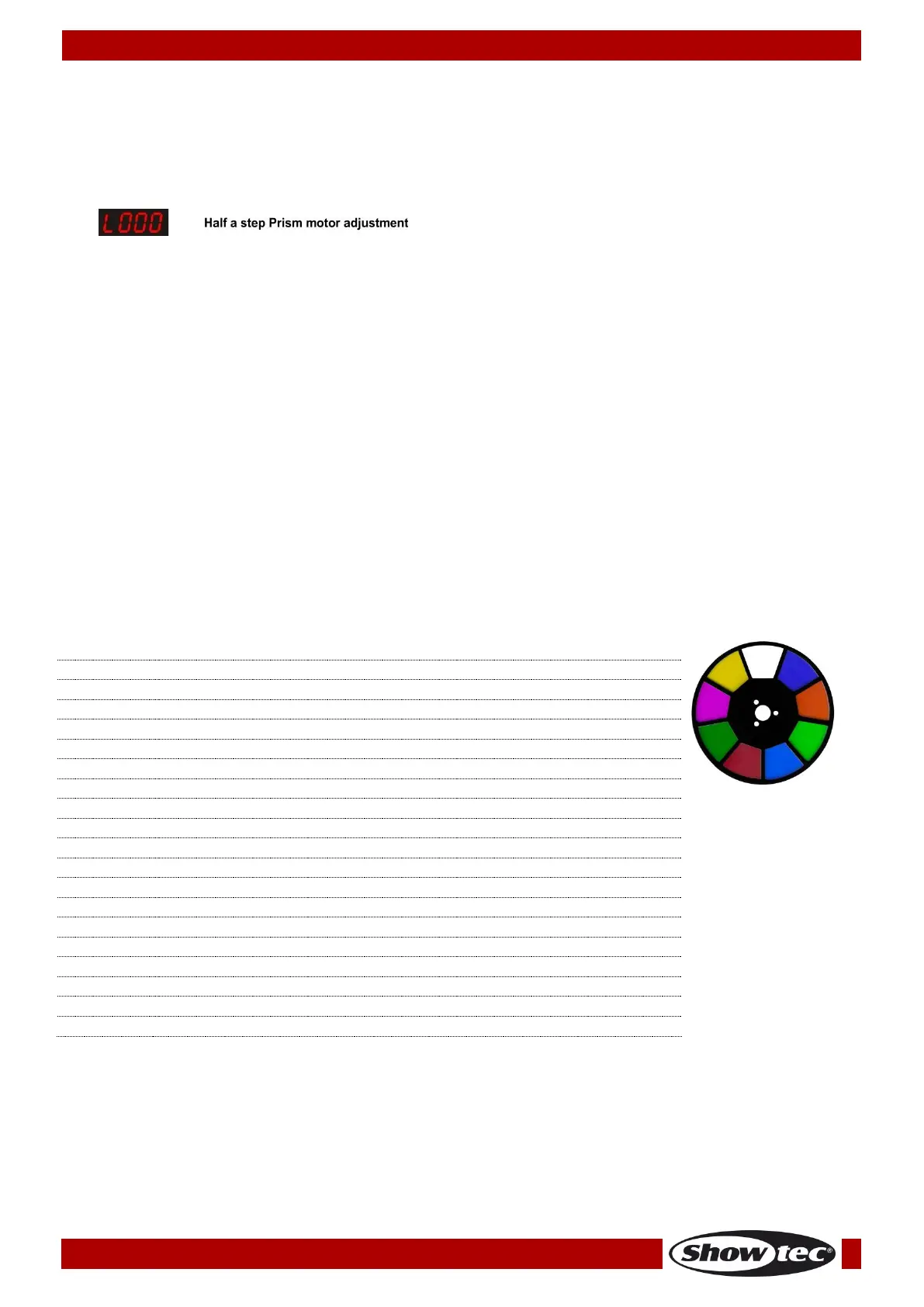

Channel 3 – Color wheel
Linear color change following the movement of the slider. Between 128 - 255, the color wheel rotates
continuously (so-called “Rainbow” effect).
0-6
Open / White
7-13
Yellow
14-20
Pink
21-27
Green
28-34
Red
35-41
Light Blue
42-48
Light Green
49-55
Orange
56-63
Dark Blue
64-70
Split Color White / Yellow
71-77
Split Color Yellow / Pink
78-84
Split Color Pink / Green
85-91
Split Color Green / Red
92-98
Split Color Red / Light Blue
99-105
Split Color Light Blue / Light Green
106-112
Split Color Light Green / Orange
113-119
Split Color Orange / Dark Blue
120-127
Split Color Dark Blue / White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counterclockwise rotation (CCW) rainbow effect from slow to fast
