Shure BLX2 User Guide

Shure Incorporated
11/25
•
•
•
•
•
Getting Good Sound

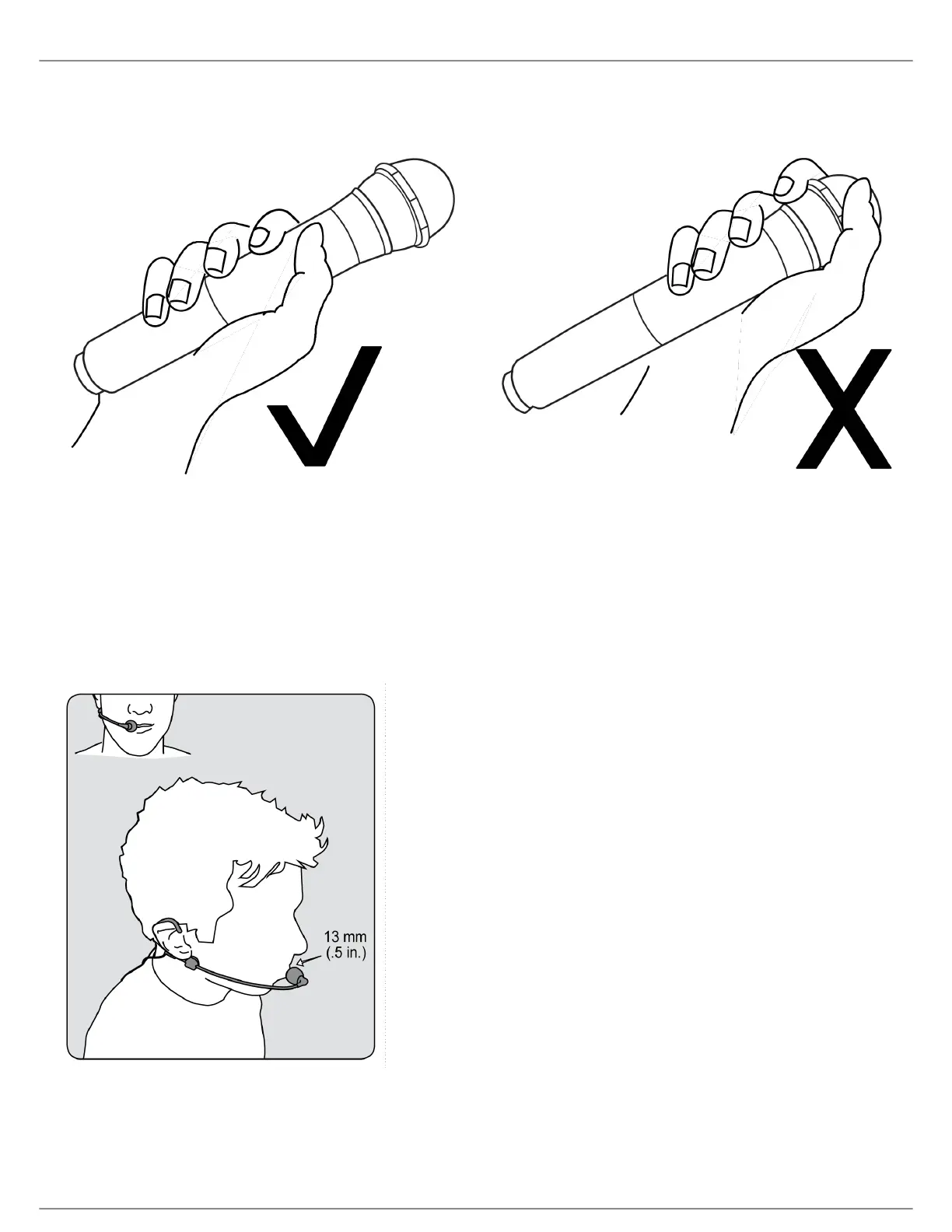

Correct Microphone Placement
Hold the microphone within 12 inches from the sound source. For a warmer sound with increased bass
presence, move the microphone closer.
Do not cover grille with hand.
Wearing the Headworn Microphone
Position the headworn microphone 13 mm (1/2 in.) from the corner of your mouth.
Position lavalier and headworn microphones so that clothing, jewelry, or other items do not bump or rub
against the microphone.
Adjusting Gain
Monitor the audio LED indicator on the receiver front panel when setting the transmitter gain.
Green: normal levels

Shure BLX2 Specifications

General

Battery Life	Up to 14 hours
Battery Type	2 AA batteries
Modulation	FM
Transmitter Type	Handheld
Compatibility	BLX Series
Frequency Response	50 Hz to 15 kHz
Operating Range	300 ft (91 m) typical
Microphone Capsule	SM58
RF Output Power	10mW
Dynamic Range	100 dB
