Shure BLX2 User Guide

Shure Incorporated
13/25
For alkaline batteries only. For rechargeable batteries, solid red means the batteries are dead.

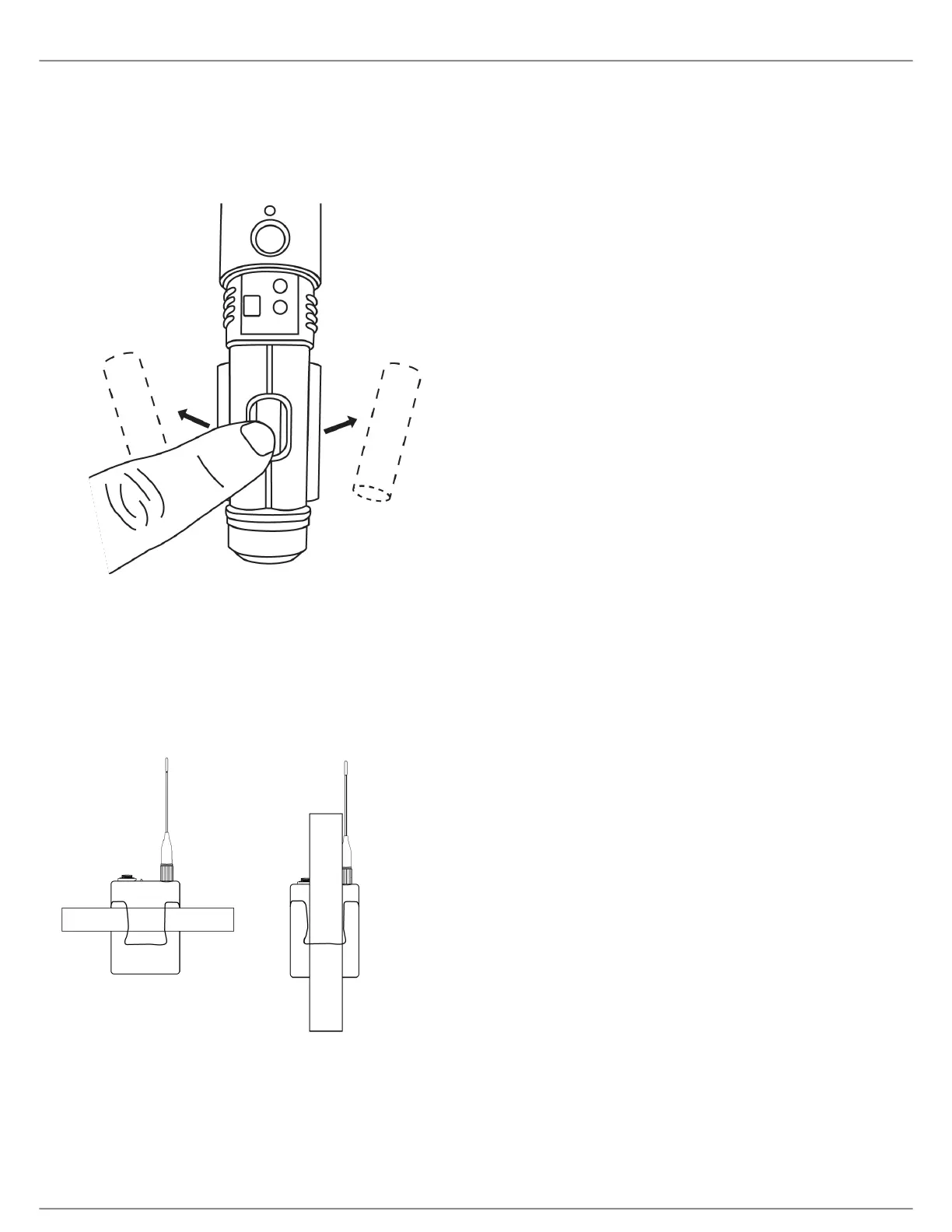

To remove batteries from the handheld transmitter, push them out through the opening in the microphone battery
compartment.
WARNING: Battery packs shall not be exposed to excessive heat such as sunshine, fire, or the like.
Wearing the Bodypack Transmitter
Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.
For best results, the belt should be pressed against the base of the clip.
Power Off
Hold down the power button to power off the BLX2 or BLX4/88. To power off the BLX1, slide the power toggle switch
to OFF.

Shure BLX2 Specifications

General

Battery Life	Up to 14 hours
Battery Type	2 AA batteries
Modulation	FM
Transmitter Type	Handheld
Compatibility	BLX Series
Frequency Response	50 Hz to 15 kHz
Operating Range	300 ft (91 m) typical
Microphone Capsule	SM58
RF Output Power	10mW
Dynamic Range	100 dB
