Shure BLX2 User Guide

Shure Incorporated
6/25
BLX88
① DC Power Jack
② Adapter Cord Tie-Off
③ XLR microphone output jack (MIC out)
④ 6.35 mm (1/4") instrument level output jack (instrument out)

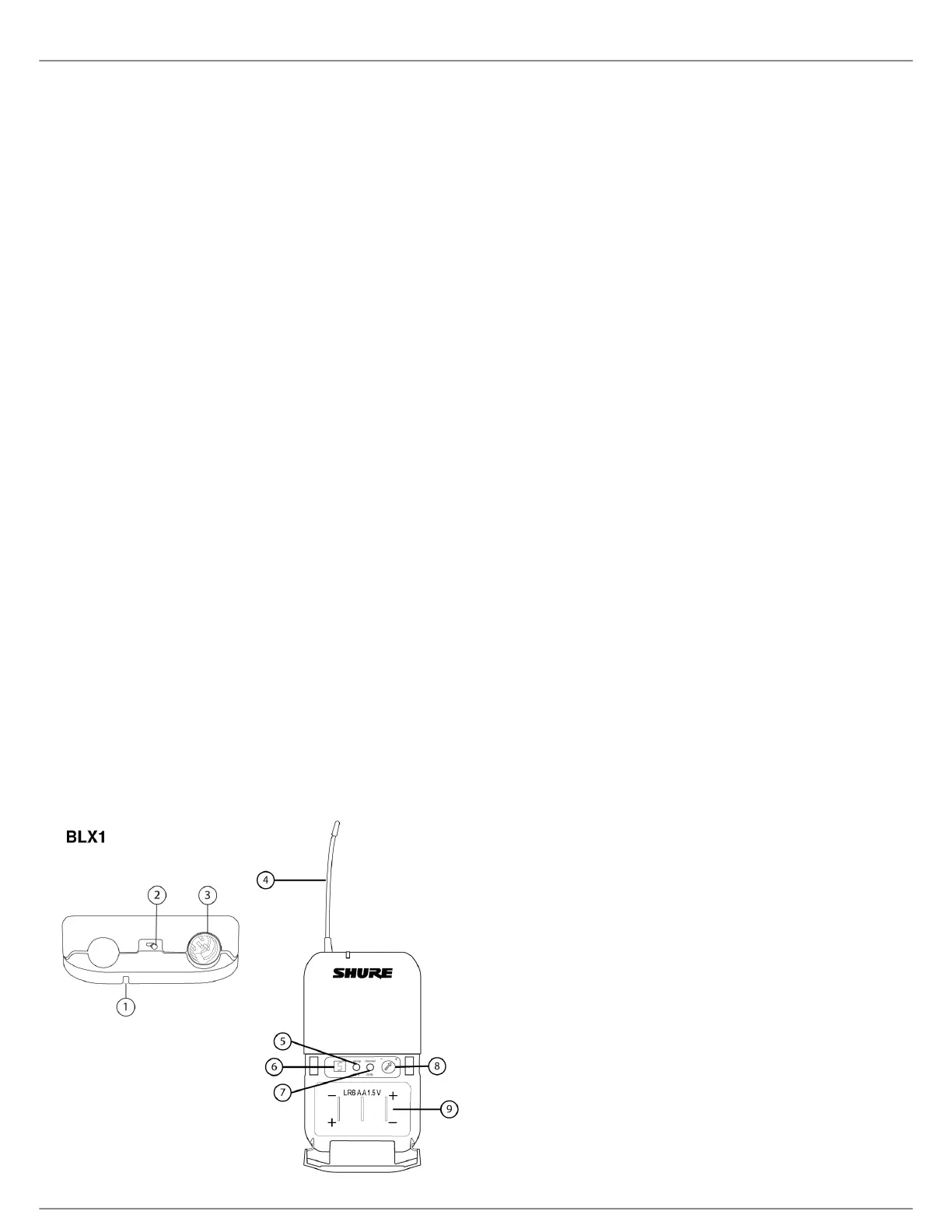

BLX1
① LED Indicator
Displays power and battery status (see Transmitter LED Indicators).
② power Switch
Toggles power on or off.
③ 4-Pin Microphone Input Jack (TA4 connector)
④ Antenna
⑤ group Button
Changes group setting.
⑥ LED Display
Displays group and channel setting.
⑦ channel Button
Changes channel setting.
⑧ Battery Compartment
⑨ Audio Gain Adjustment
Rotate to increase or decrease transmitter gain.

Shure BLX2 Specifications

General

Battery Life	Up to 14 hours
Battery Type	2 AA batteries
Modulation	FM
Transmitter Type	Handheld
Compatibility	BLX Series
Frequency Response	50 Hz to 15 kHz
Operating Range	300 ft (91 m) typical
Microphone Capsule	SM58
RF Output Power	10mW
Dynamic Range	100 dB
