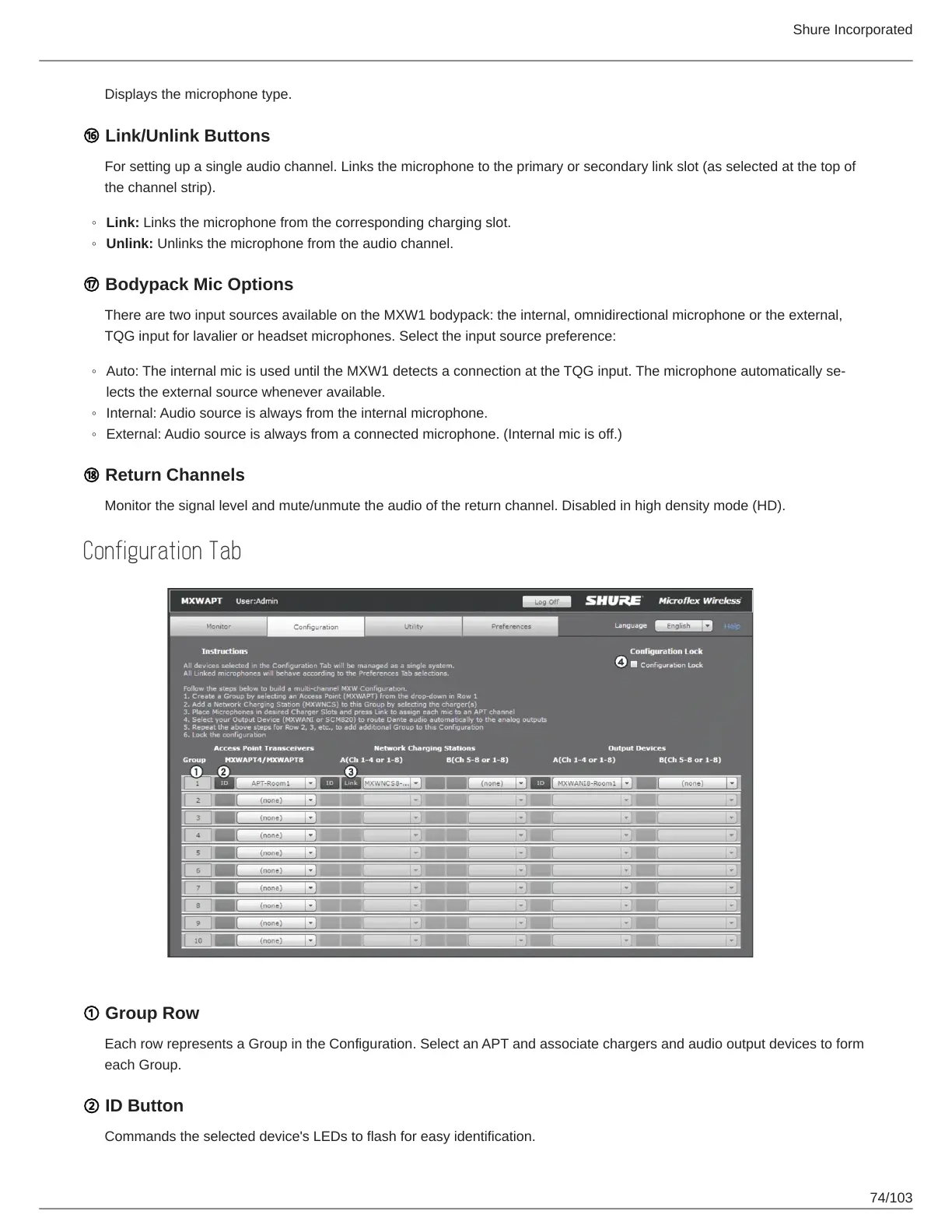

Shure Incorporated
74/103
◦
◦
◦
◦
◦
Displays the microphone type.
⑯ Link/Unlink Buttons
For setting up a single audio channel. Links the microphone to the primary or secondary link slot (as selected at the top of
the channel strip).
Link: Links the microphone from the corresponding charging slot.
Unlink: Unlinks the microphone from the audio channel.
⑰ Bodypack Mic Options
There are two input sources available on the MXW1 bodypack: the internal, omnidirectional microphone or the external,
TQG input for lavalier or headset microphones. Select the input source preference:
Auto: The internal mic is used until the MXW1 detects a connection at the TQG input. The microphone automatically se
lects the external source whenever available.
Internal: Audio source is always from the internal microphone.
External: Audio source is always from a connected microphone. (Internal mic is off.)
⑱ Return Channels
Monitor the signal level and mute/unmute the audio of the return channel. Disabled in high density mode (HD).
Configuration Tab
① Group Row
Each row represents a Group in the Configuration. Select an APT and associate chargers and audio output devices to form
each Group.
② ID Button
Commands the selected device's LEDs to flash for easy identification.
