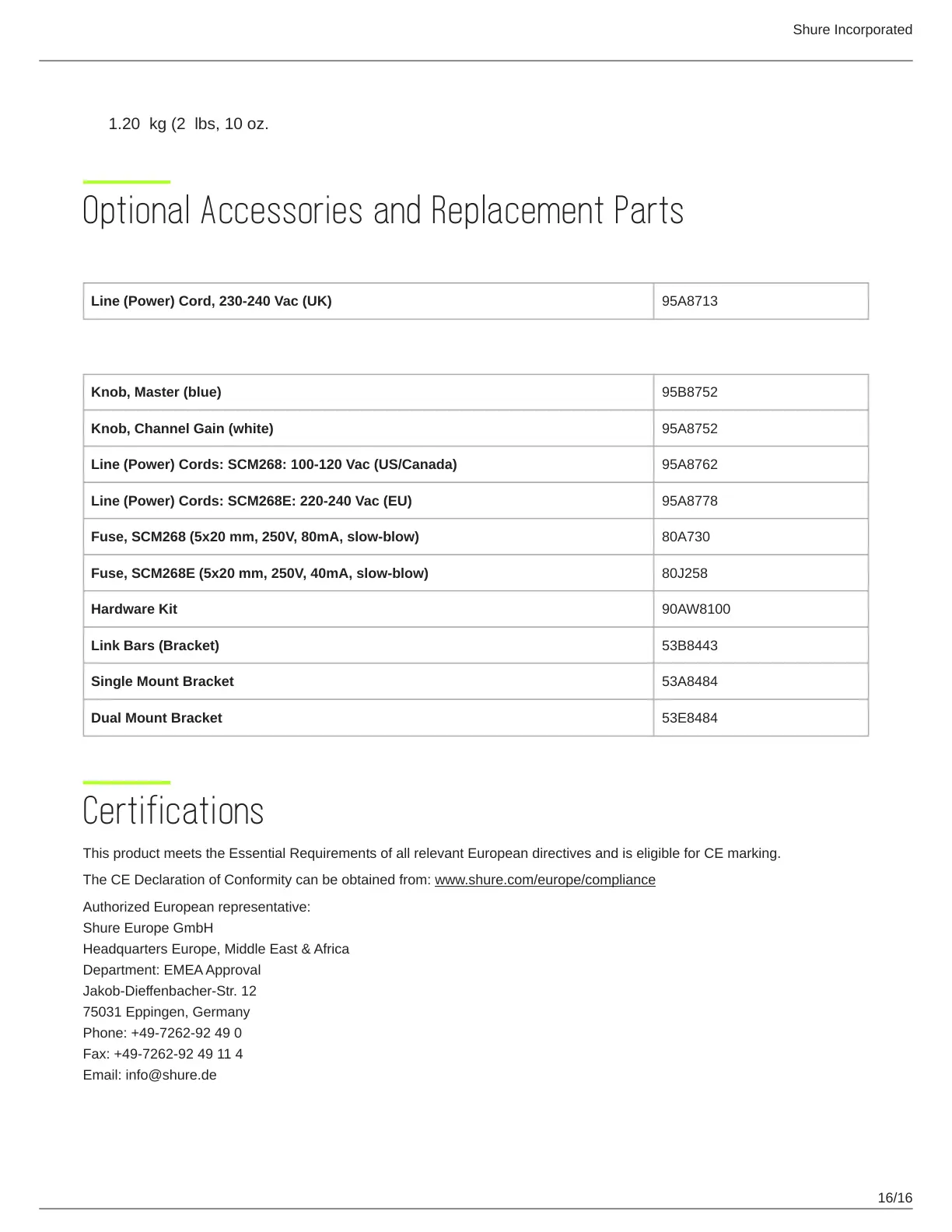

Net Weight
1.20 kg (2 lbs, 10 oz.
Optional Accessories and Replacement Parts
Optional Accessories
Line (Power) Cord, 230-240 Vac (UK) 95A8713
Replacement Parts
Knob, Master (blue) 95B8752
Knob, Channel Gain (white) 95A8752
Line (Power) Cords: SCM268: 100-120 Vac (US/Canada) 95A8762
Line (Power) Cords: SCM268E: 220-240 Vac (EU) 95A8778
Fuse, SCM268 (5x20 mm, 250V, 80mA, slow-blow) 80A730
Fuse, SCM268E (5x20 mm, 250V, 40mA, slow-blow) 80J258
Hardware Kit 90AW8100
Link Bars (Bracket) 53B8443
Single Mount Bracket 53A8484
Dual Mount Bracket 53E8484
Certifications
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Fax: +49-7262-92 49 11 4
Email: info@shure.de

Shure SCM268 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Microphone input impedance	1.2 Ω
Output impedance	870 Ω
Total Harmonic Distortion (THD)	0.25 %
DJ mixer	-
Product color	Black
Video capability	No
AC input voltage	220 - 240 V
Power consumption	30 mA
AC input frequency	50 / 60 Hz
AUX in	Yes
AUX out ports	1
Number of microphone inputs	4
