Connections

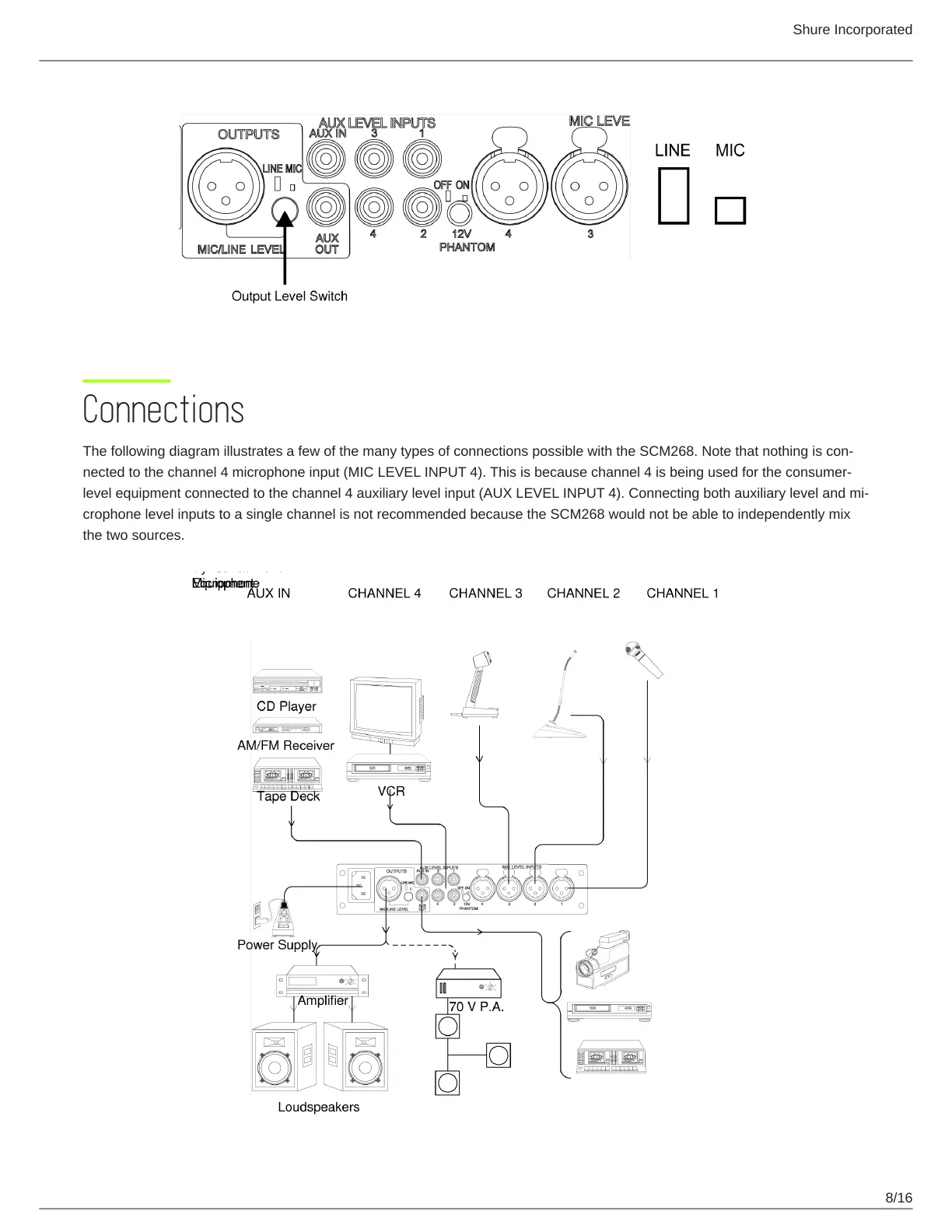

The following diagram illustrates a few of the many types of connections possible with the SCM268. Note that nothing is con
nected to the channel 4 microphone input (MIC LEVEL INPUT 4). This is because channel 4 is being used for the consumer-
level equipment connected to the channel 4 auxiliary level input (AUX LEVEL INPUT 4). Connecting both auxiliary level and mi
crophone level inputs to a single channel is not recommended because the SCM268 would not be able to independently mix
the two sources.

Shure SCM268 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Microphone input impedance	1.2 Ω
Output impedance	870 Ω
Total Harmonic Distortion (THD)	0.25 %
DJ mixer	-
Product color	Black
Video capability	No
AC input voltage	220 - 240 V
Power consumption	30 mA
AC input frequency	50 / 60 Hz
AUX in	Yes
AUX out ports	1
Number of microphone inputs	4
