Shure SCM268 User Manual

Shure Incorporated
9/16
•
•
•
•
•
•
•
•

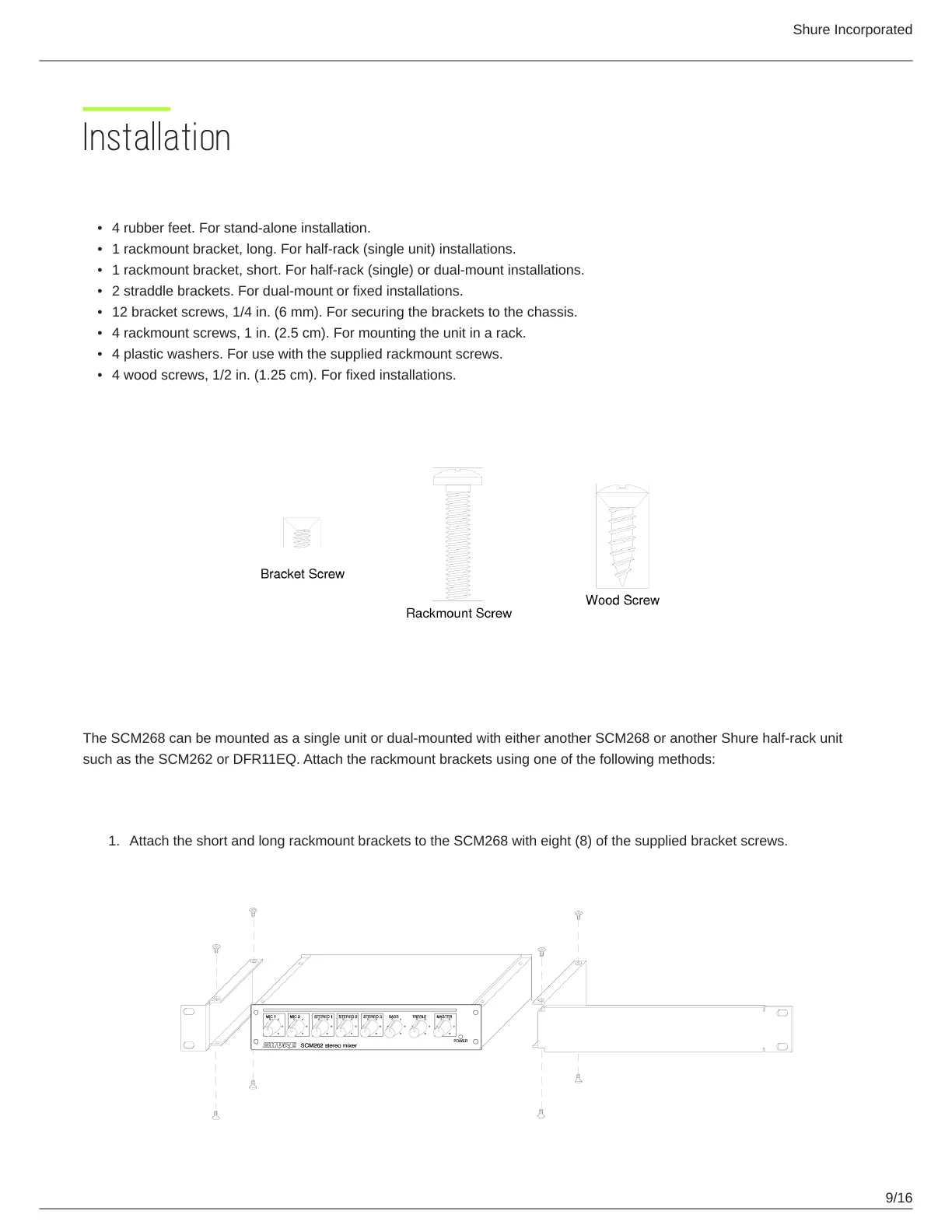

1.
Installation
Supplied Hardware
4 rubber feet. For stand-alone installation.
1 rackmount bracket, long. For half-rack (single unit) installations.
1 rackmount bracket, short. For half-rack (single) or dual-mount installations.
2 straddle brackets. For dual-mount or fixed installations.
12 bracket screws, 1/4 in. (6 mm). For securing the brackets to the chassis.
4 rackmount screws, 1 in. (2.5 cm). For mounting the unit in a rack.
4 plastic washers. For use with the supplied rackmount screws.
4 wood screws, 1/2 in. (1.25 cm). For fixed installations.
Rackmount Installation
The SCM268 can be mounted as a single unit or dual-mounted with either another SCM268 or another Shure half-rack unit
such as the SCM262 or DFR11EQ. Attach the rackmount brackets using one of the following methods:
Single-unit (half-rack) installation:
Attach the short and long rackmount brackets to the SCM268 with eight (8) of the supplied bracket screws.

Shure SCM268 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Microphone input impedance	1.2 Ω
Output impedance	870 Ω
Total Harmonic Distortion (THD)	0.25 %
DJ mixer	-
Product color	Black
Video capability	No
AC input voltage	220 - 240 V
Power consumption	30 mA
AC input frequency	50 / 60 Hz
AUX in	Yes
AUX out ports	1
Number of microphone inputs	4
