ENGLISH
6
ON
OFF
FIGURE 3
GAIN
d
e
a
b
c
g
hi
j
f

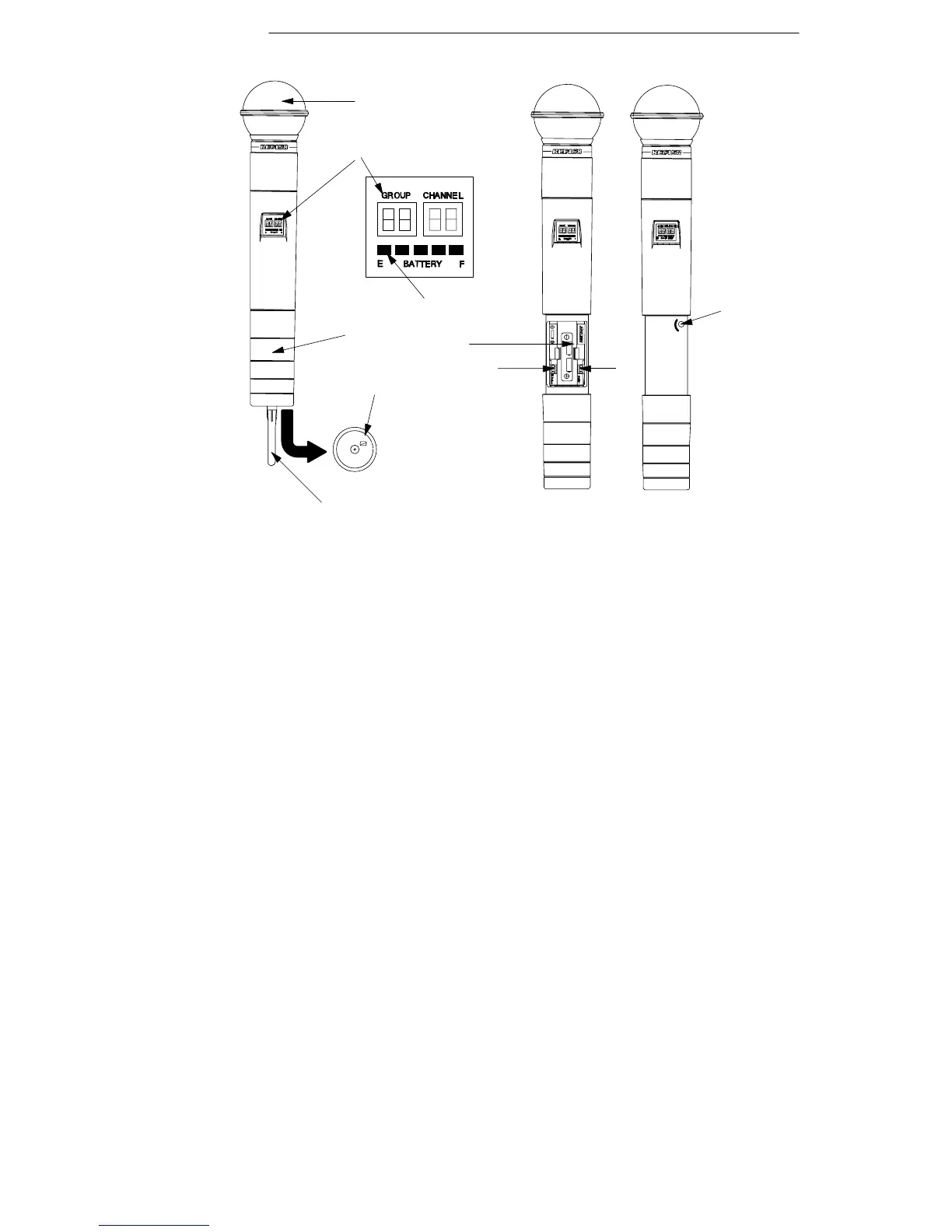

U2 TRANSMITTER CONTROLS & INDICATORS (FIGURE 3)
1. Grille: Protects the microphone cartridge and helps reduce breath sounds and wind
noise. The grilles for the various microphone heads differ in appearance.
2. Programmable Display: Displays Group and Channel, battery power level, and
frequency lock/power lock on/off status.
3. Battery Fuel Gage: Visually indicates battery power level.
4. Battery Cover: Unscrews to expose batteries and display control keys.
5. ON/OFF Switch: Turns transmitter power on and off.
6. Antenna: Helical antenna is attached to the end of the U2 transmitter. A qualified
technician can replace the antenna in the field.
7. Battery Compartment: Holds two 1.5 V AA batteries.
8. MODE Button: Selects the parameter (Group or Channel) you wish to change.
9. SET Button: Changes transmitter Group and Channel settings. Also used with
the MODE button to lock power on and to lock the frequency and channel setting.
10. Audio Gain Control: Allows audio level adjustment to accommodate a variety of
sound sources (speaking, singing, or playing an instrument). A small screwdriver
is supplied for making adjustments.
