Shure Incorporated
14/50
◦
◦

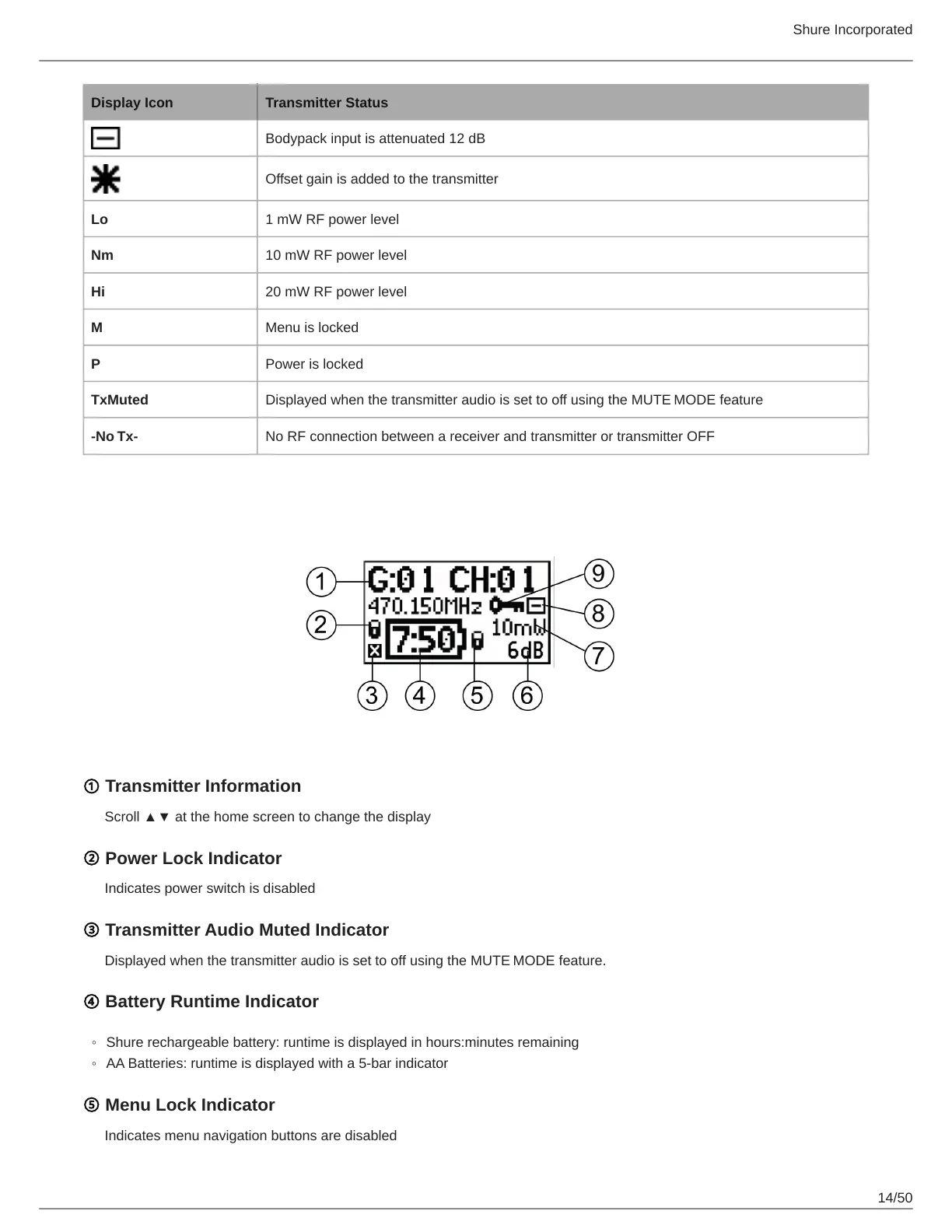

Display Icon Transmitter Status
Bodypack input is attenuated 12 dB
Offset gain is added to the transmitter
Lo 1 mW RF power level
Nm 10 mW RF power level
Hi 20 mW RF power level
M Menu is locked
P Power is locked
TxMuted Displayed when the transmitter audio is set to off using the MUTE MODE feature
-No Tx- No RF connection between a receiver and transmitter or transmitter OFF
Transmitter
① Transmitter Information
Scroll ▲▼ at the home screen to change the display
② Power Lock Indicator
Indicates power switch is disabled
③ Transmitter Audio Muted Indicator
Displayed when the transmitter audio is set to off using the MUTE MODE feature.
④ Battery Runtime Indicator
Shure rechargeable battery: runtime is displayed in hours:minutes remaining
AA Batteries: runtime is displayed with a 5-bar indicator
⑤ Menu Lock Indicator
Indicates menu navigation buttons are disabled
