Shure Incorporated
37/50
Maximum Input Level
1 kHz at 1% THD145 dB SPL (SM58), typical
Note: Dependent on microphone type
RF Output
Antenna Type
Integrated Single Band Helical
Occupied Bandwidth
<200 kHz
Modulation Type
Shure proprietary digital
Power
1 mW, 10 mW, 20 mW
See Frequency Range and Output Power table, varies by region

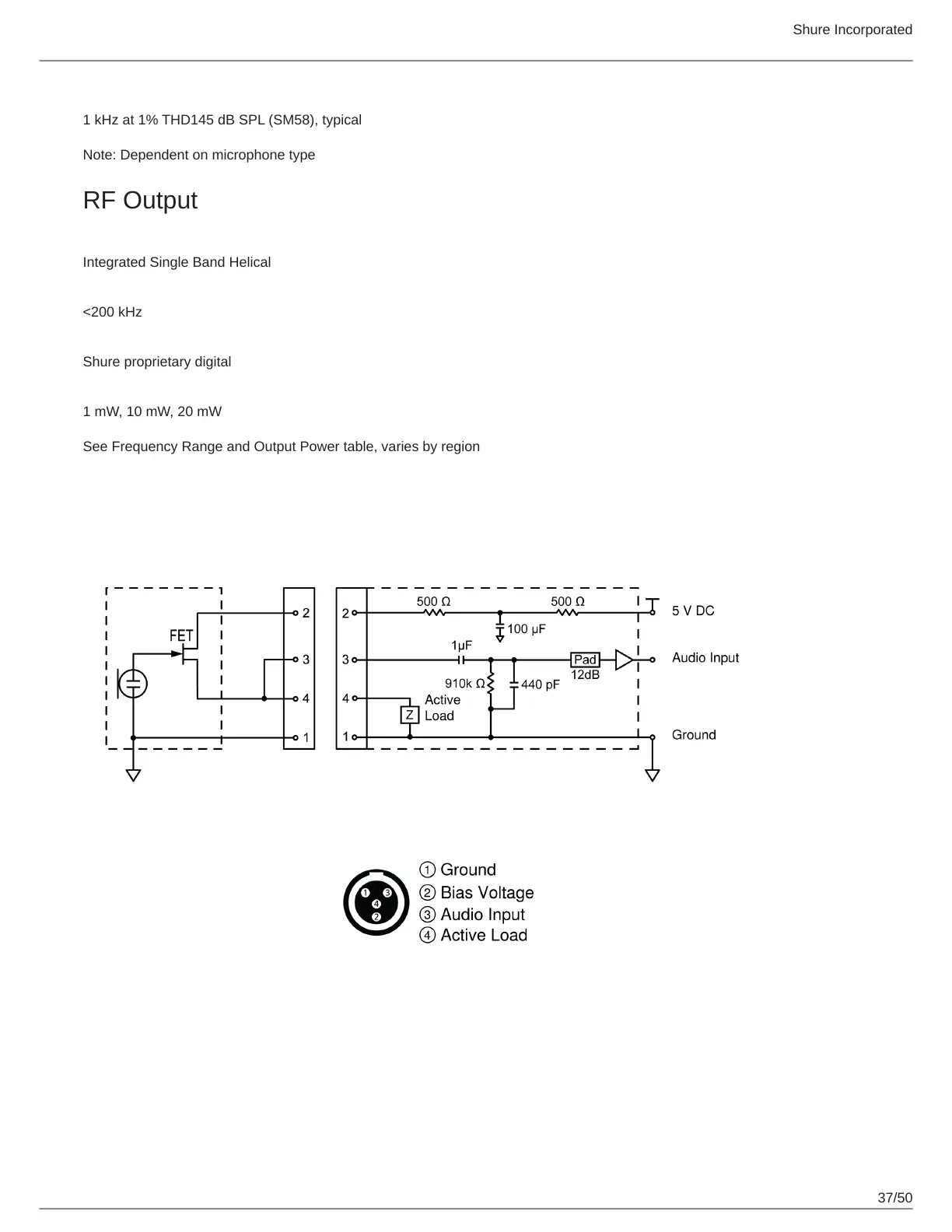

Tables and Diagrams
TA4M Connector
