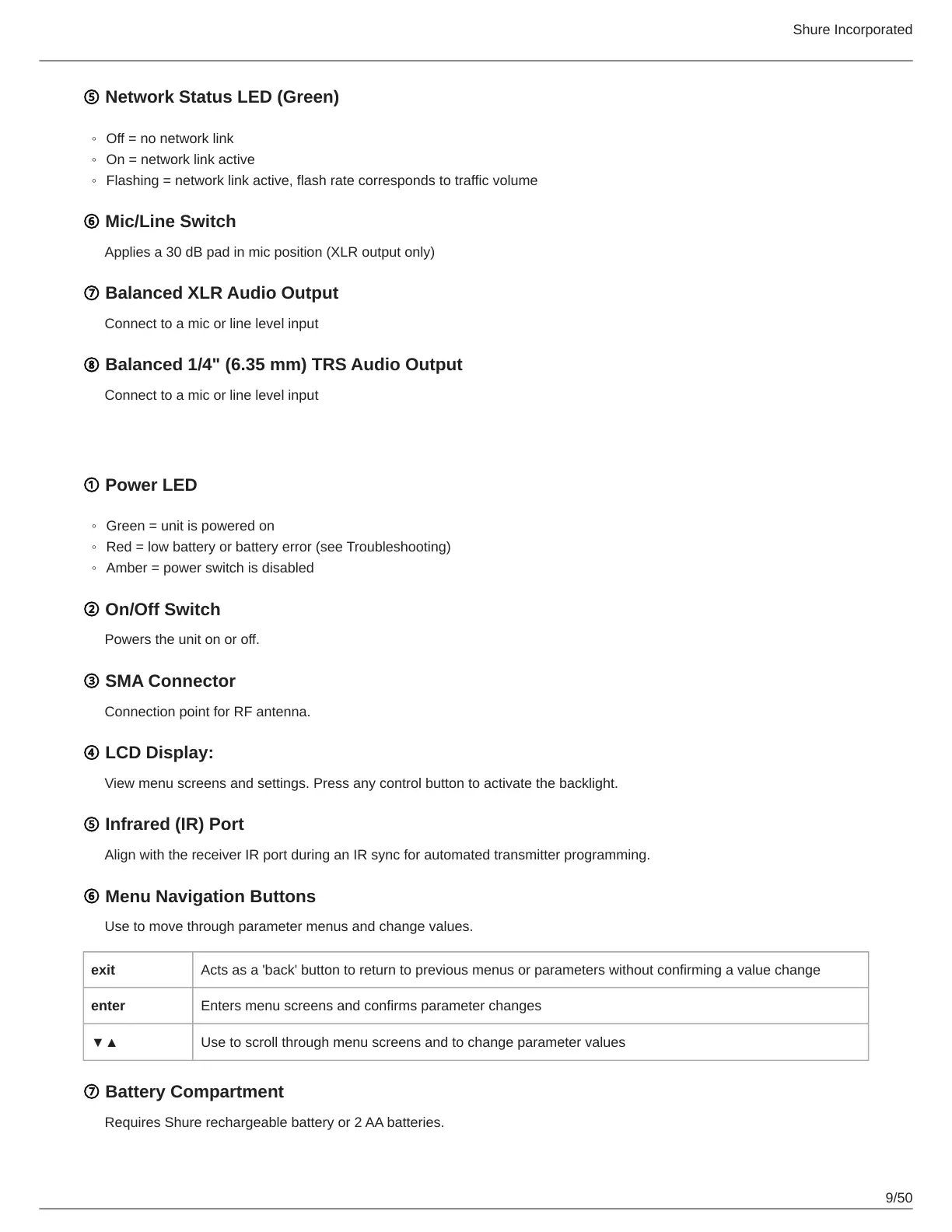

⑤ Network Status LED (Green)
Off = no network link
On = network link active
Flashing = network link active, flash rate corresponds to traffic volume
⑥ Mic/Line Switch
Applies a 30 dB pad in mic position (XLR output only)
⑦ Balanced XLR Audio Output
Connect to a mic or line level input
⑧ Balanced 1/4" (6.35 mm) TRS Audio Output
Connect to a mic or line level input
Transmitters
① Power LED
Green = unit is powered on
Red = low battery or battery error (see Troubleshooting)
Amber = power switch is disabled
② On/Off Switch
Powers the unit on or off.
③ SMA Connector
Connection point for RF antenna.
④ LCD Display:
View menu screens and settings. Press any control button to activate the backlight.
⑤ Infrared (IR) Port
Align with the receiver IR port during an IR sync for automated transmitter programming.
⑥ Menu Navigation Buttons
Use to move through parameter menus and change values.
exit Acts as a 'back' button to return to previous menus or parameters without confirming a value change
enter Enters menu screens and confirms parameter changes
▼▲ Use to scroll through menu screens and to change parameter values
⑦ Battery Compartment
Requires Shure rechargeable battery or 2 AA batteries.
