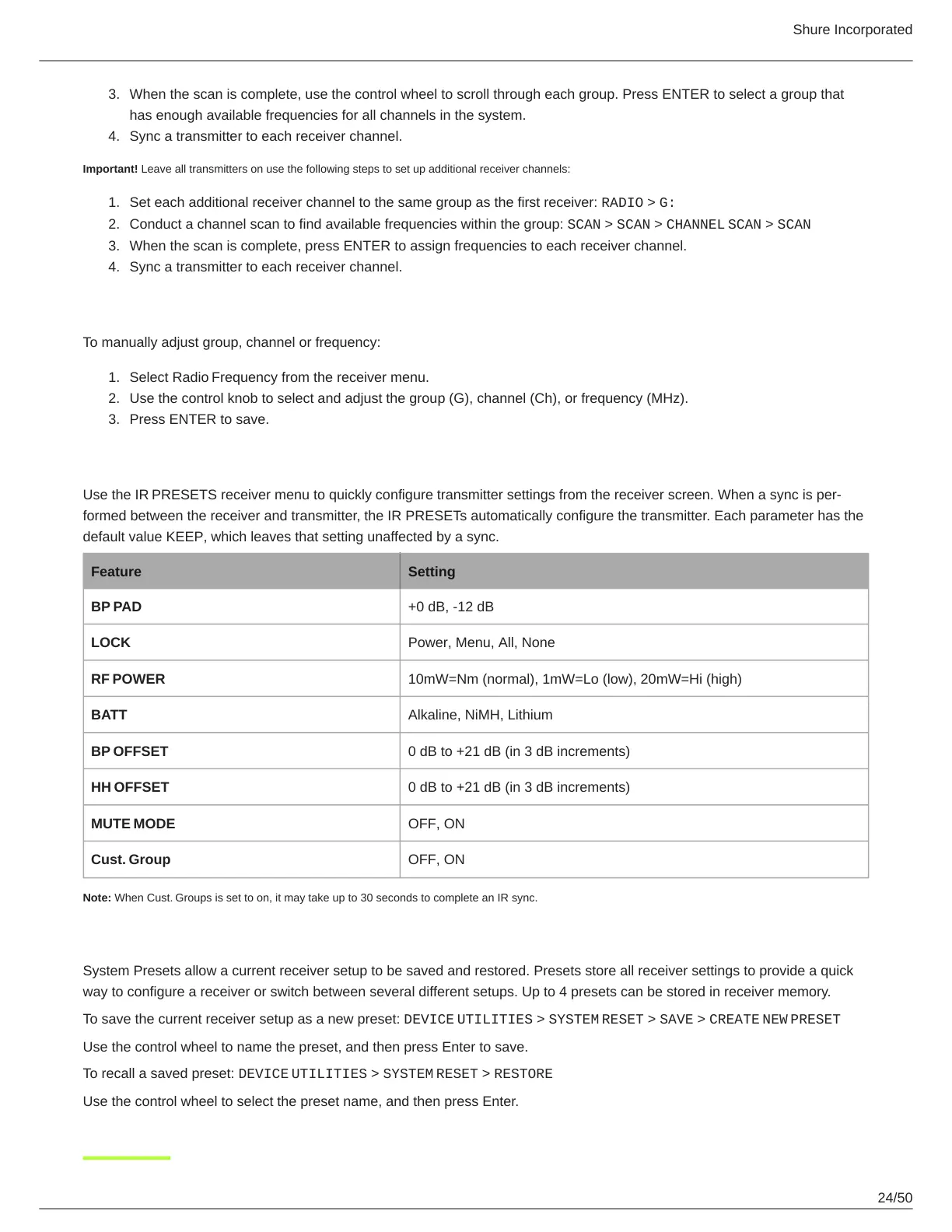

When the scan is complete, use the control wheel to scroll through each group. Press ENTER to select a group that
has enough available frequencies for all channels in the system.
Sync a transmitter to each receiver channel.
Important! Leave all transmitters on use the following steps to set up additional receiver channels:
Set each additional receiver channel to the same group as the first receiver: RADIO > G:
Conduct a channel scan to find available frequencies within the group: SCAN > SCAN > CHANNEL SCAN > SCAN
When the scan is complete, press ENTER to assign frequencies to each receiver channel.
Sync a transmitter to each receiver channel.
Manual Frequency Selection
To manually adjust group, channel or frequency:
Select Radio Frequency from the receiver menu.
Use the control knob to select and adjust the group (G), channel (Ch), or frequency (MHz).
Press ENTER to save.
Transmitter IR Presets
Use the IR PRESETS receiver menu to quickly configure transmitter settings from the receiver screen. When a sync is per
formed between the receiver and transmitter, the IR PRESETs automatically configure the transmitter. Each parameter has the
default value KEEP, which leaves that setting unaffected by a sync.
Feature Setting
BP PAD +0 dB, -12 dB
LOCK Power, Menu, All, None
RF POWER 10mW=Nm (normal), 1mW=Lo (low), 20mW=Hi (high)
BATT Alkaline, NiMH, Lithium
BP OFFSET 0 dB to +21 dB (in 3 dB increments)
HH OFFSET 0 dB to +21 dB (in 3 dB increments)
MUTE MODE OFF, ON
Cust. Group OFF, ON
Note: When Cust. Groups is set to on, it may take up to 30 seconds to complete an IR sync.
Creating a System Preset
System Presets allow a current receiver setup to be saved and restored. Presets store all receiver settings to provide a quick
way to configure a receiver or switch between several different setups. Up to 4 presets can be stored in receiver memory.
To save the current receiver setup as a new preset: DEVICE UTILITIES > SYSTEM RESET > SAVE > CREATE NEW PRESET
Use the control wheel to name the preset, and then press Enter to save.
To recall a saved preset: DEVICE UTILITIES > SYSTEM RESET > RESTORE
Use the control wheel to select the preset name, and then press Enter.
