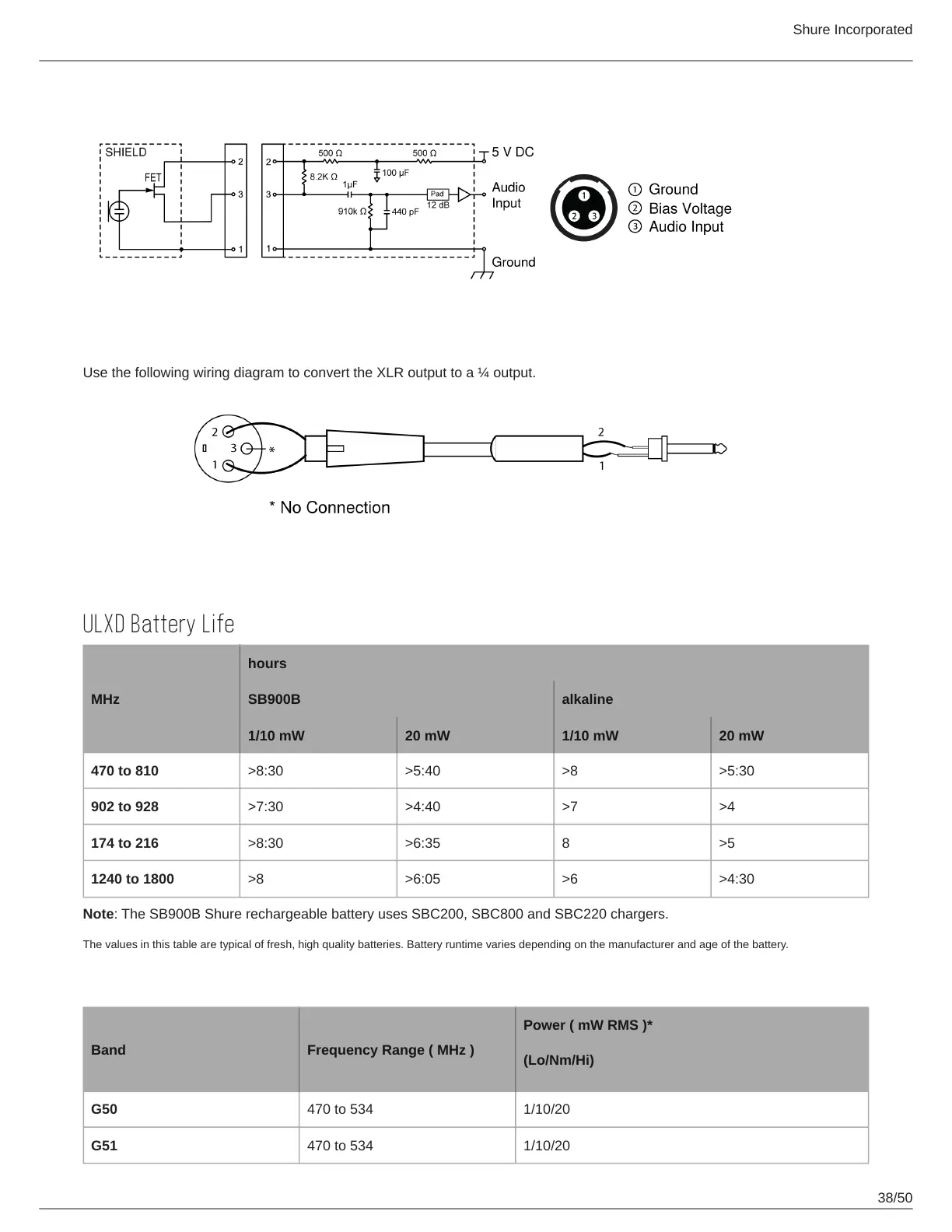

Shure Incorporated
38/50
LEMO Connector
XLR to ¼ Output
Use the following wiring diagram to convert the XLR output to a ¼ output.
Batteries
ULXD Battery Life
MHz
hours
SB900B alkaline
1/10 mW 20 mW 1/10 mW 20 mW
470 to 810 >8:30 >5:40 >8 >5:30
902 to 928 >7:30 >4:40 >7 >4
174 to 216 >8:30 >6:35 8 >5
1240 to 1800 >8 >6:05 >6 >4:30
Note: The SB900B Shure rechargeable battery uses SBC200, SBC800 and SBC220 chargers.
The values in this table are typical of fresh, high quality batteries. Battery runtime varies depending on the manufacturer and age of the battery.
Frequency Range and Transmitter Output Power
Band Frequency Range ( MHz )
Power ( mW RMS )*
(Lo/Nm/Hi)
G50 470 to 534 1/10/20
G51 470 to 534 1/10/20
