LED Audio Signal Level Description
Yellow (5) -6 dBFS
Normal peaks
Yellow (4) -12 dBFS
Green (3) -20 dBFS
Signal PresentGreen (2) -30 dBFS
Green (1) -40 dBFS
⑫ Gain Buttons
Adjust channel gain
⑬ Power Switch
Powers the unit on or off

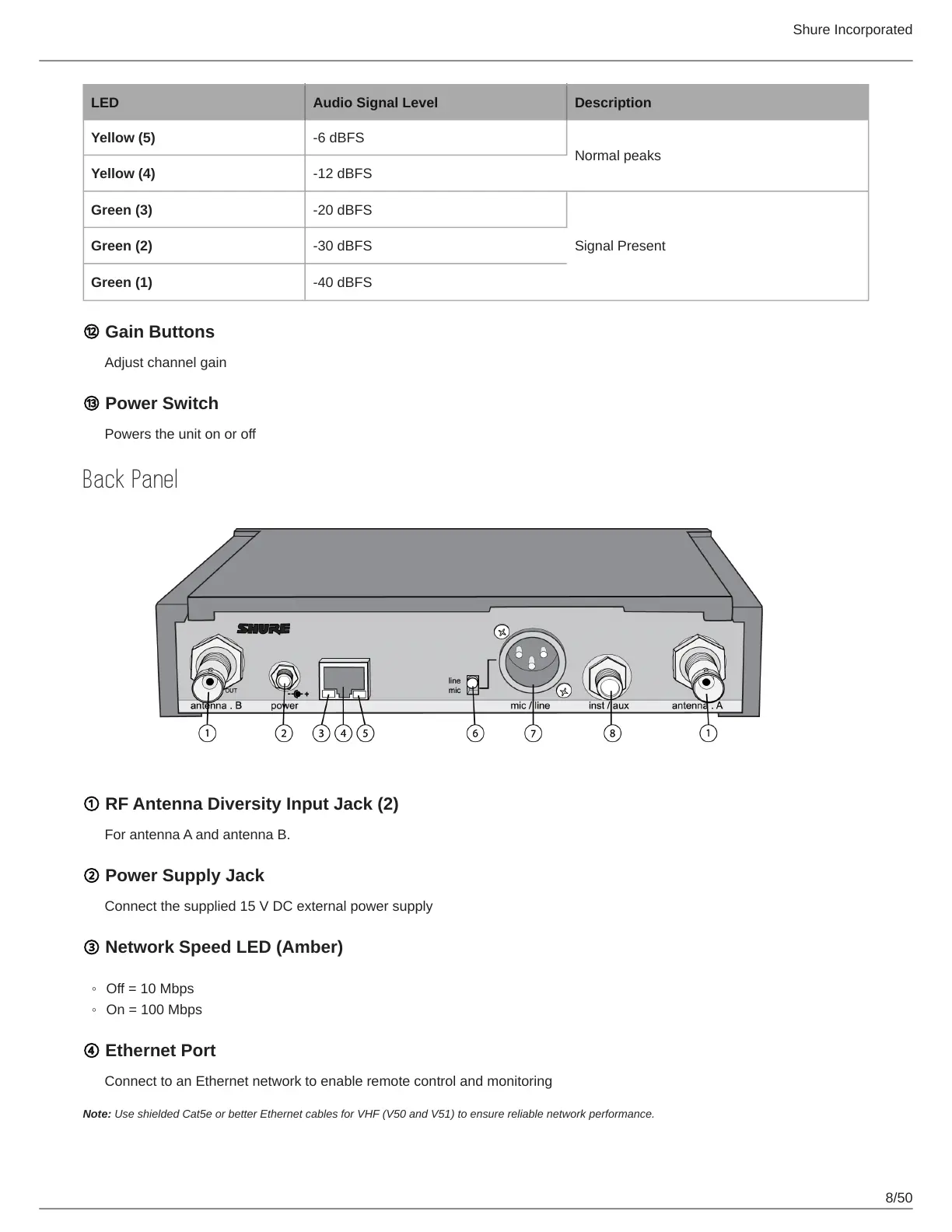

Back Panel
① RF Antenna Diversity Input Jack (2)
For antenna A and antenna B.
② Power Supply Jack
Connect the supplied 15 V DC external power supply
③ Network Speed LED (Amber)
Off = 10 Mbps
On = 100 Mbps
④ Ethernet Port
Connect to an Ethernet network to enable remote control and monitoring
Note: Use shielded Cat5e or better Ethernet cables for VHF (V50 and V51) to ensure reliable network performance.
