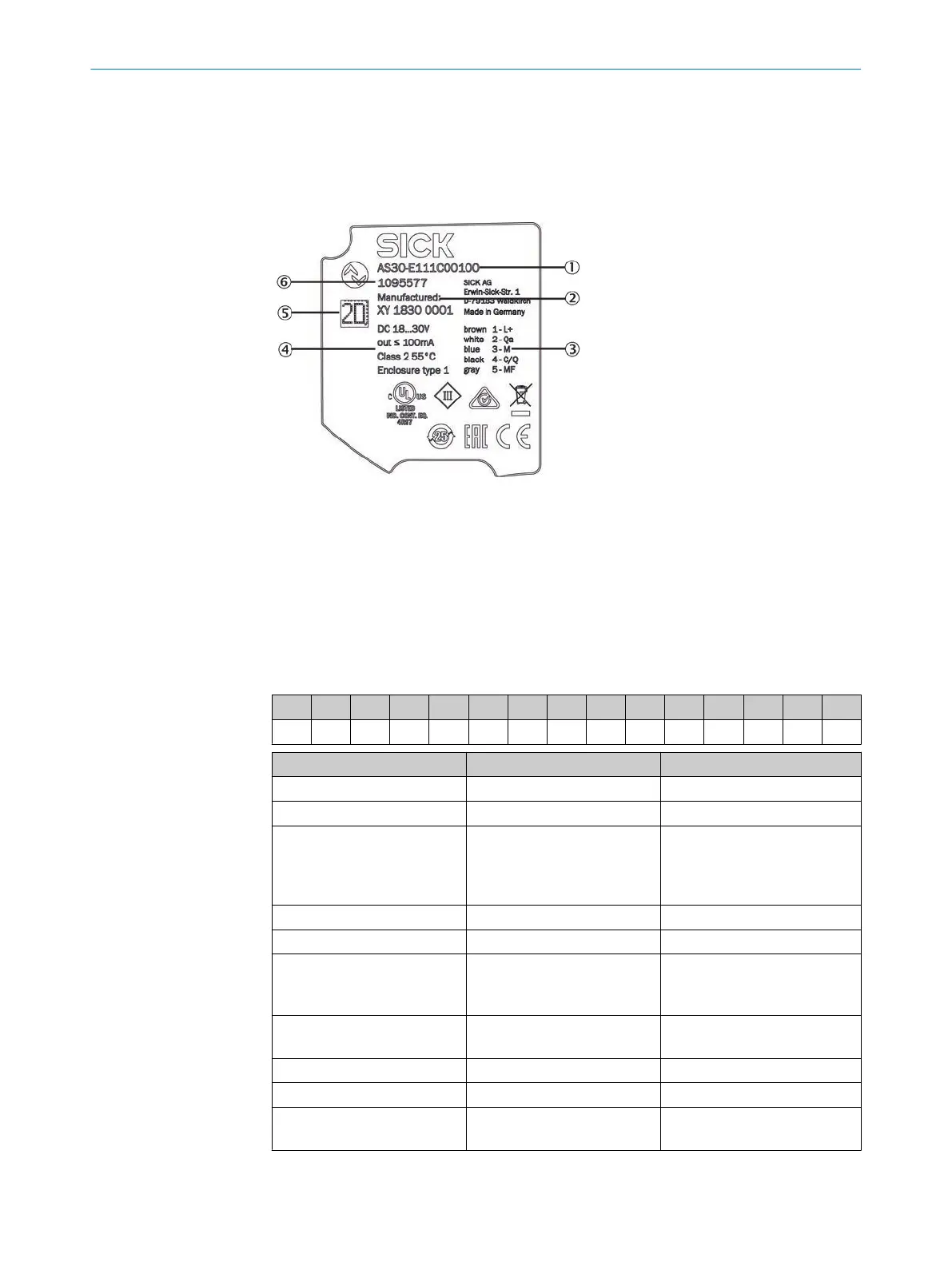

3 Product description
3.1 Product ID
3.1.1 Type label
1
device designation
2
Date of manufacture and serial number
3
Pin assignment
4
Electrical data and environmental data
5
2D-Code
6
Article number
3.1.2 Type code
Table 1: Type code
1 2 - 3 4 5 6 7 8 9 10 11 12 13 14
AS 30 - E B M 4 3 4 I 2 1 0 A 00
Position Meaning
1 Basic type AS = array sensor
2 Type number 30 = current generation
3 Application E = edge
W = w
idt
h
P = position
C = center
4 Switching output B = push/pull
5 Type of light M = white
6 Field of view 3 = 30 mm
4 = 45 mm
5 = 50 mm
7 Distance 1 = 25 mm
3 = 100 mm
8 Connection 4 = M12, 5-pin, Qa, Q, MF
9 Communication I = IO-Link
10 HMI 1 = LED +3 buttons
2 = T
F
T +3 buttons
3 PRODUCT DESCRIPTION
10
O P E R A T I N G I N S T R U C T I O N S | AS30 Core 8022080.15LJ/2020-05-07 | SICK
Subject to change without notice
