Position Meaning
11 Core/Prime/Pro 1 = Core
2 = Prime
3 = Pr
o
12 Filter 0 = no filter
13 Type of device M = sample device
S = s
pecial de
vice
A = SMART Task
B = special device with SMART
Task
Z = standard
14 Sequential no. for SMART
T
a
sk/special/sample
01 = 0
... (= Increment = 1)
99 = 0
ZZ = standard
3.2 Product features and functions

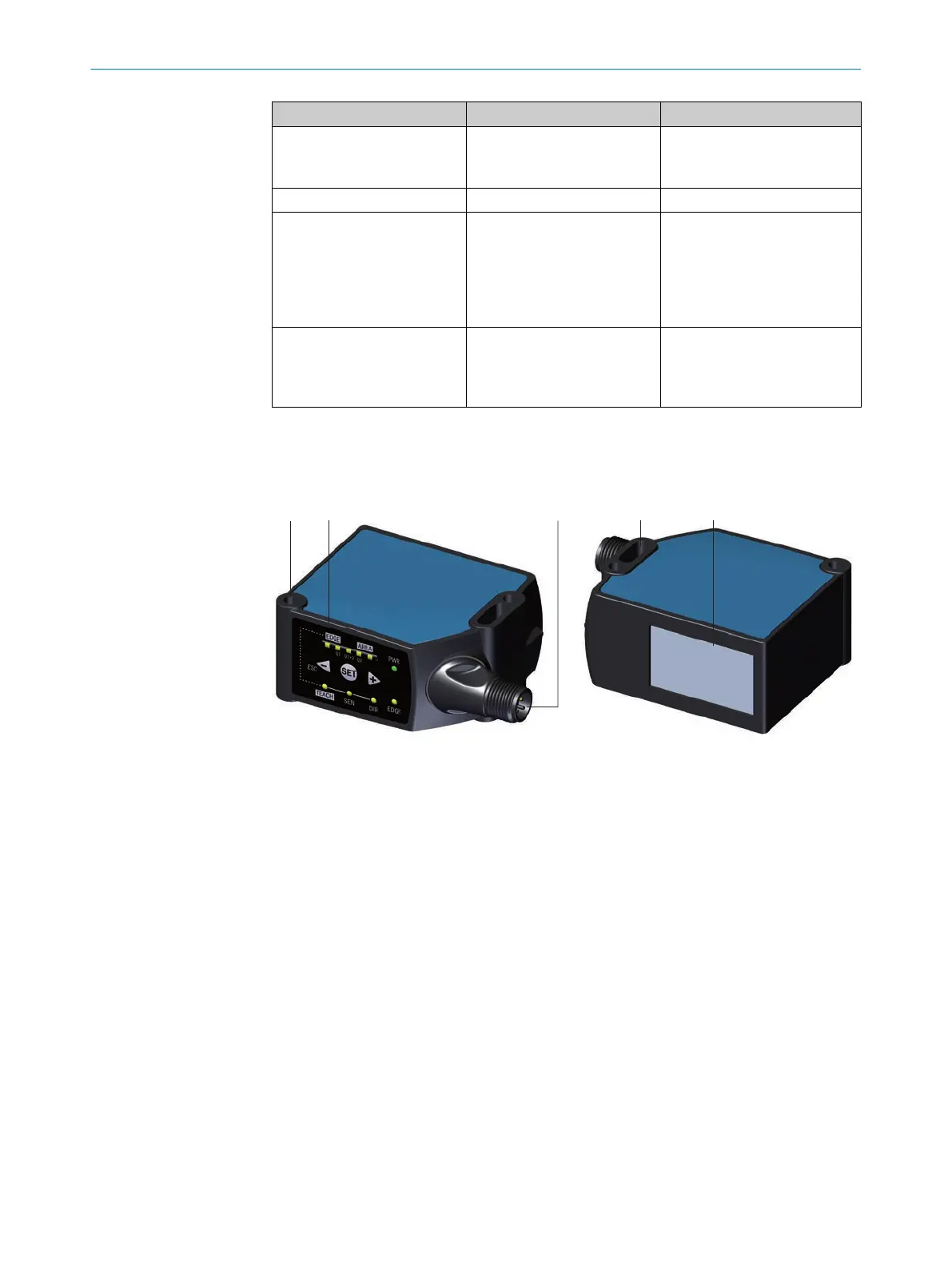

3.2.1 Device view
Figure 1: AS30 Core
1
Fixing hole
2
Display and control panel
3
Connection
4
Fixing hole
5
Light emission
3.2.2 Product characteristics
The AS30 Core array sensors can be used in any application that requires the detection
of an edg
e based on a clear contrast difference.
Edges with a low contrast difference on transparent or reflective materials can be
detected using a Prime device and the Reflector setting.
This variant of the AS30 Core provides 2 operating modes:
•
Edge:
Detection and positioning of an edge, for example for edge guiding (smoothed
position value).
•
Position:
Detection and positioning of an edge for highly accurate positioning (accurate posi‐
tion value).
PRODUCT DESCRIPTION 3
8022080.15LJ/2020-05-07 | SICK O P E R A T I N G I N S T R U C T I O N S | AS30 Core
11
Subject to change without notice
