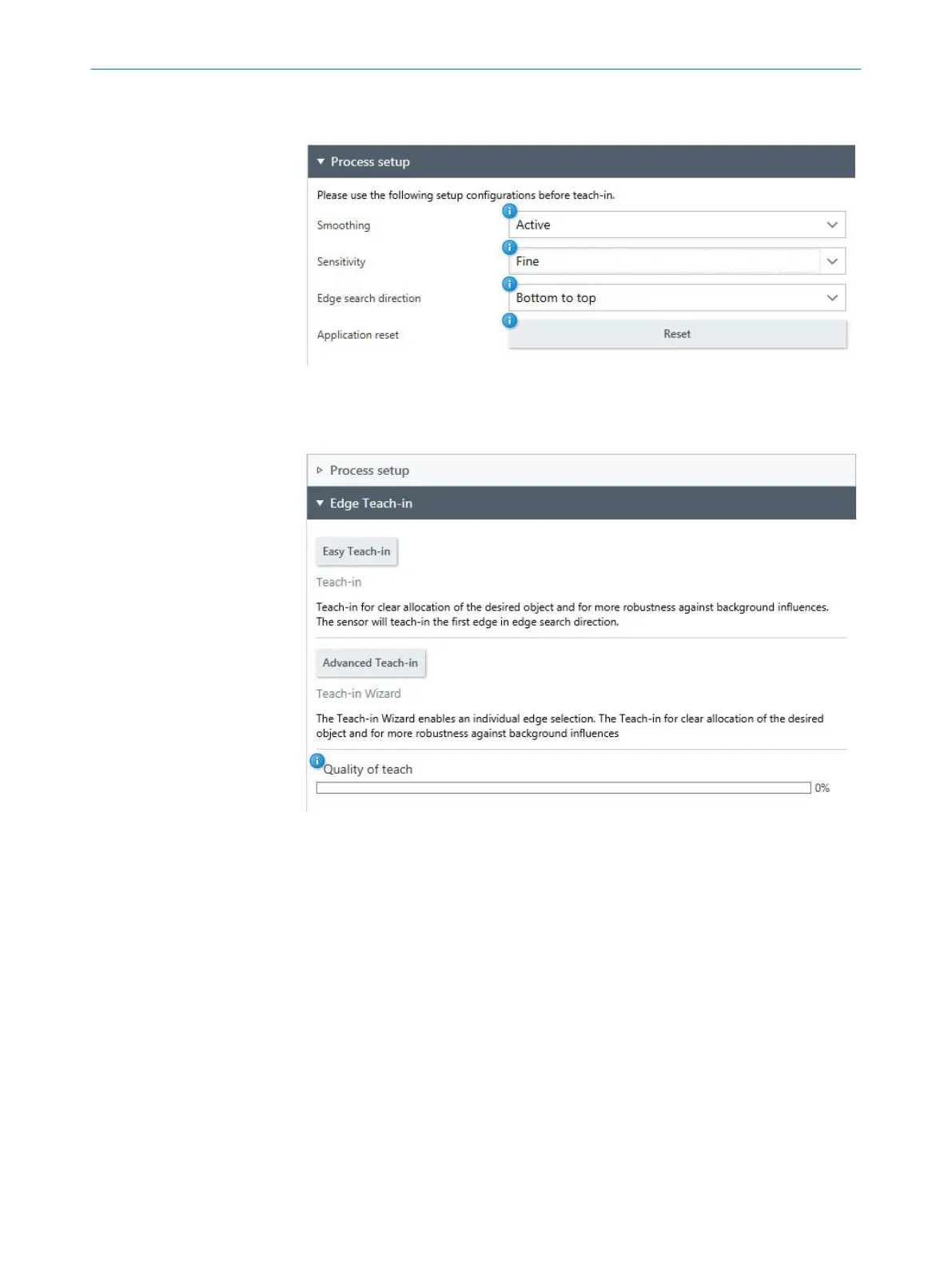

1 Checking and setting the most important device parameters in the “Process
Set
up” area
2 Performing an edge teach-in in the “Edge Teach-in” area
The e
asy teach-in teaches the currently outputted edge. This ignores other edges
and achieves a higher process stability. The advanced teach-in also allows the
edges to be taught-in to be selected from all detected edges.
3 Defining switching points or areas in the “Configuration Qint” area.
OPERATION 6
8022080.15LJ/2020-05-07 | SICK O P E R A T I N G I N S T R U C T I O N S | AS30 Core
27
Subject to change without notice
