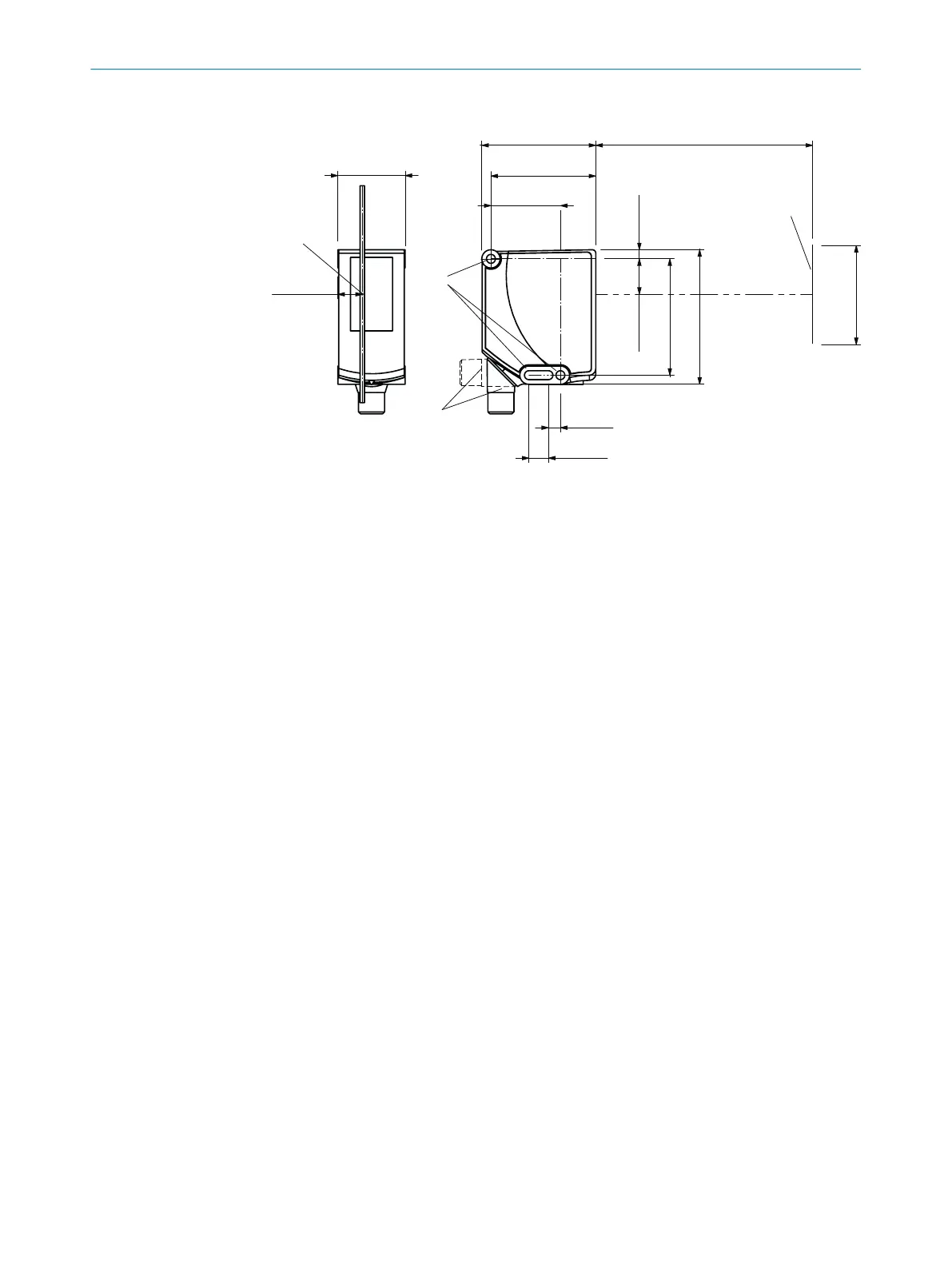

AS30 Core Edge TW 100
31 (1.22)
11.2 (0.44)
1
99.9 (3.93)
45 (1.77)
48.3 (1.9)
52.5 (2.07)
5.5 (0.22)
9 (0.35)
62 (2.44)
32 (1.26)
53.6 (2.11)
4.2 (0.17)16.3 (0.64)
3
4
2
1
Optical axis
2
Reading field, 45 mm
3
Fixing hole, 4.1 mm
4
M12 device connection, can be rotated by 180°
TECHNICAL DATA 10
