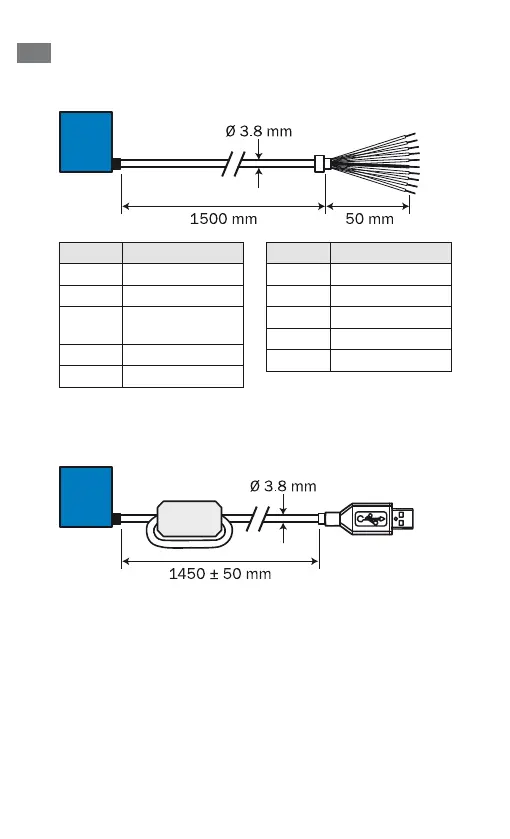

Electrical connection
RS 232
Signal Wire color
F.GND Shield (Black)
GND Black
VCC
DC +5 V
Red
TxD Green
RxD White
Signal Wire color
RTS Grey
CTS Blue
NG Orange
OK Yellow
Trigger Brown
USB
Power supply
Operating voltage 5 V DC ± 10 %
Current consumption, typ. 85 to 150 mA (CLV503)
205 to 500 mA (CLV505)
Current consumption, max. 1,500 mA (CLV503)
2,000 mA (CLV505)
