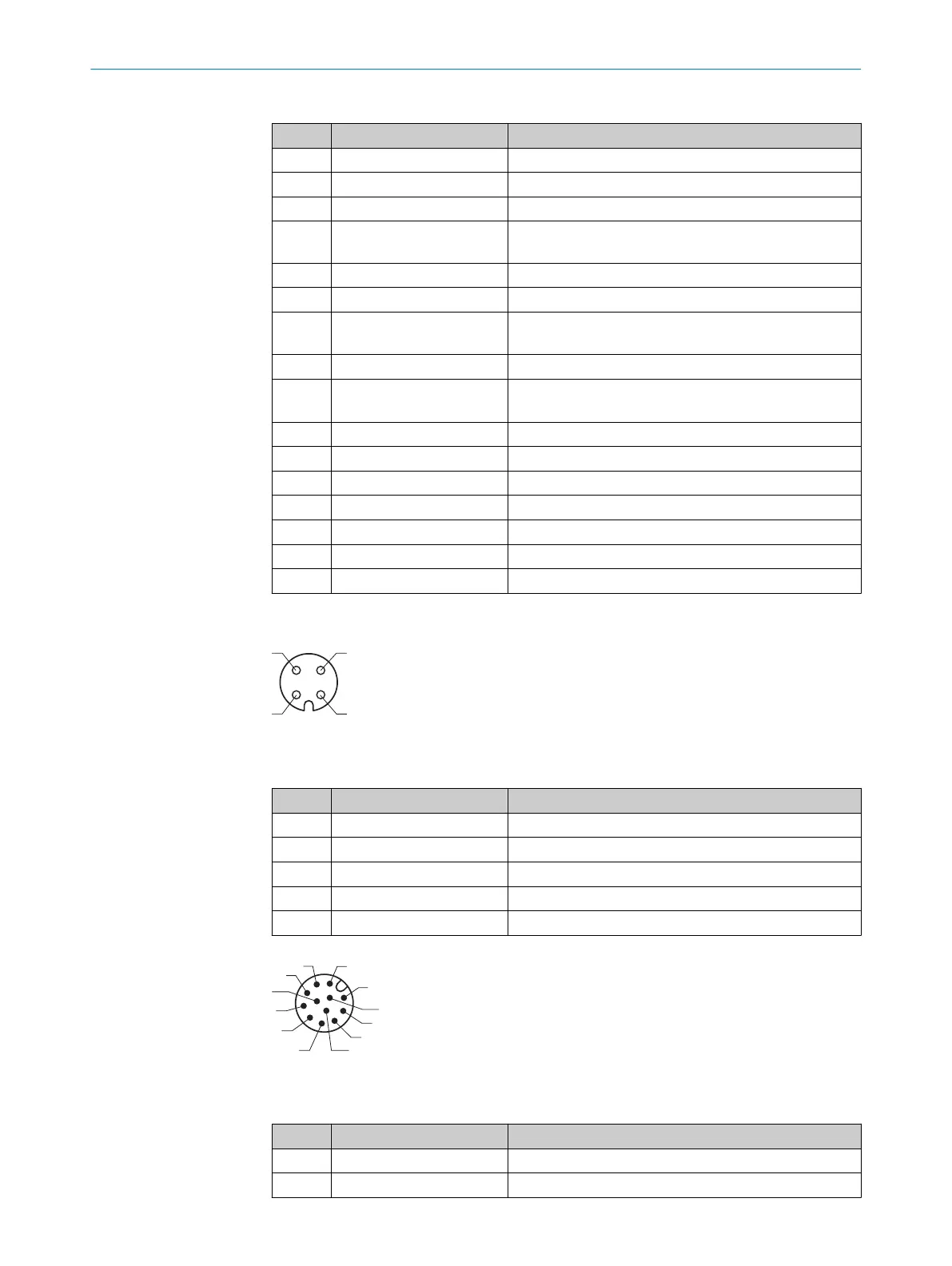

Table 8: Standard version: Pin assignment on 15-pin D-Sub-HD male cable connector
Pin Signal Function
1 DC 18 ... 30 V Supply voltage
2 RxD (AUX) AUX interface (receiver)
3 TxD (AUX) AUX interface (sender)
4 Sensor 2 Digital switching input (function adjustable, e.g. external
reading cycle)
5 GND Ground
6 RD+ (RS-422/485) Host interface (receiver)
7 RD– (RS-422/485);
RxD (RS-232)
Host interface (receiver)
8 TD+ (RS-422/485) Host interface (sender)
9 TD– (RS-422/485);
TxD (RS-232)
Host interface (sender)
10 CAN H CAN bus (IN/OUT)
11 CAN L CAN bus (IN/OUT)
12 Result 1 Digital switching output, function can be set
13 Result 2 Digital switching output, function can be set
14 Sensor 1 Digital switching input for external reading cycle
15 SensGND Common ground for switching inputs
- – Screen
Device connections with connector (Ethernet version)
1
43
2
Figure 31: Female connector, M12, 4-pin, D-coding
Table 9: Ethernet version: Pin assignment on the 4-pin M12 female connector
Pin Signal Function
1 TD+ Sender+
2 RD+ Receiver+
3 TD– Sender–
4 RD– Receiver–
- - Screen
3
1
7
2
6
5
4
8
9
10
12
11
Figure 32: Male connector, M12, 12-pin, A-coding
Table 10: Ethernet version: Pin assignment on 12-pin M12 male connector
Pin Signal Function
1 GND Ground
2 DC 18 ... 30 V Supply voltage
6 ELECTRICAL INSTALLATION
44
O P E R A T I N G I N S T R U C T I O N S | CLV63x, CLV64x, CLV65x 8019588/129Z/2019-02-07 | SICK
Subject to change without notice
