b
Ob

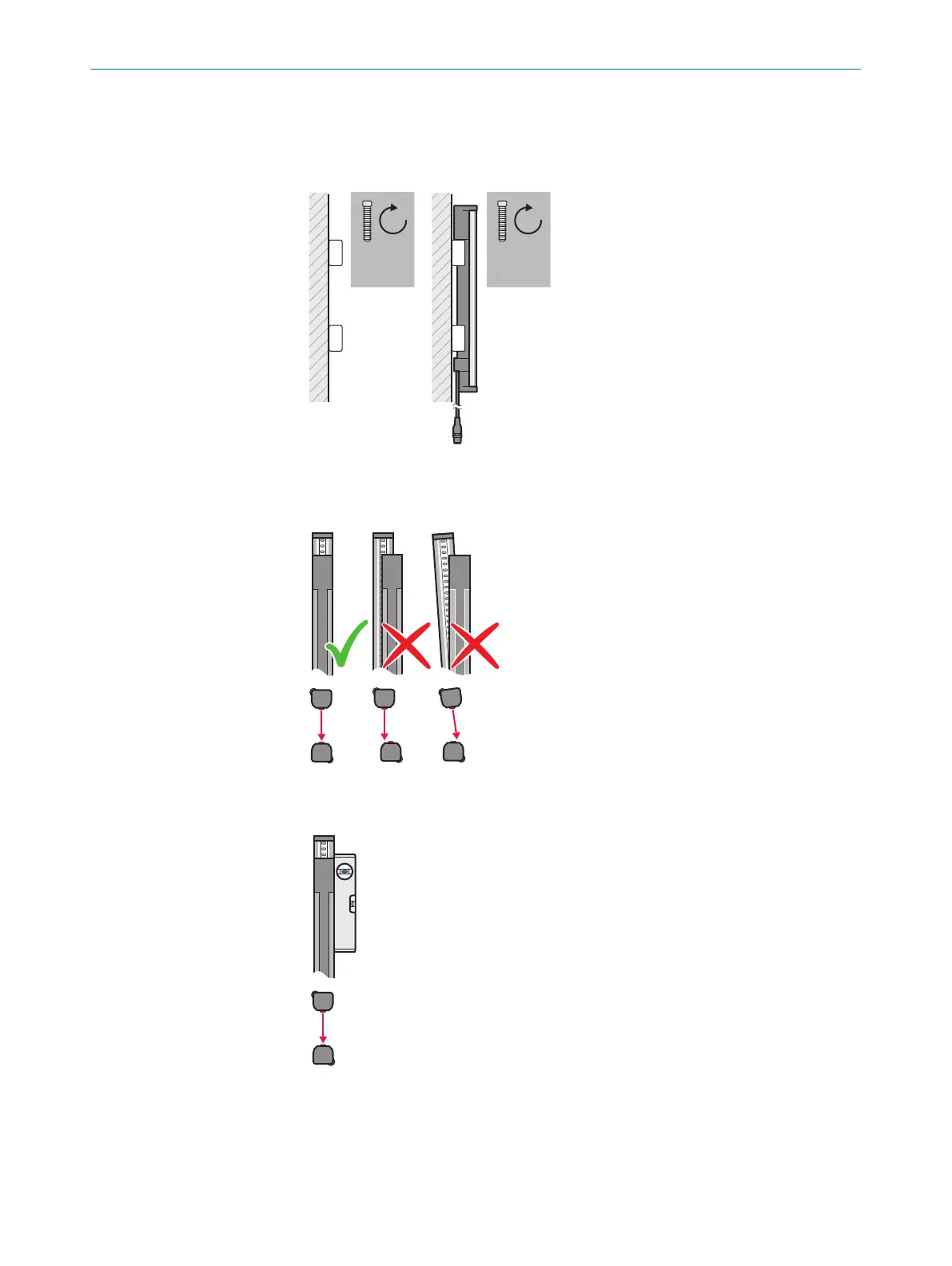

serve the tightening torque details for the particular bracket. Higher torques
may damage the bracket. Lower torques do not offer sufficient protection against
slipping of the sender and receiver. (4)
4
2,5 Nm -
3 Nm
5 Nm -
6 Nm
b
Mak
e sure that the sender and receiver are aligned correctly. The optical lens
systems of the sender and the receiver must be located opposite one another. (5)
b If necessary, use a spirit level to check that the components are parallel. (6)
Further topics
•
"Minimum dis
tance from the hazardous point", page 16
•
"Minimum distance to reflective surfaces", page 19
MOUNTING 5
8024467/1GWF/2022-11-11 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
35
Subject to change without notice
