IDM corded
© SICK AG · Germany · All rights reserved · Subject to change without notice

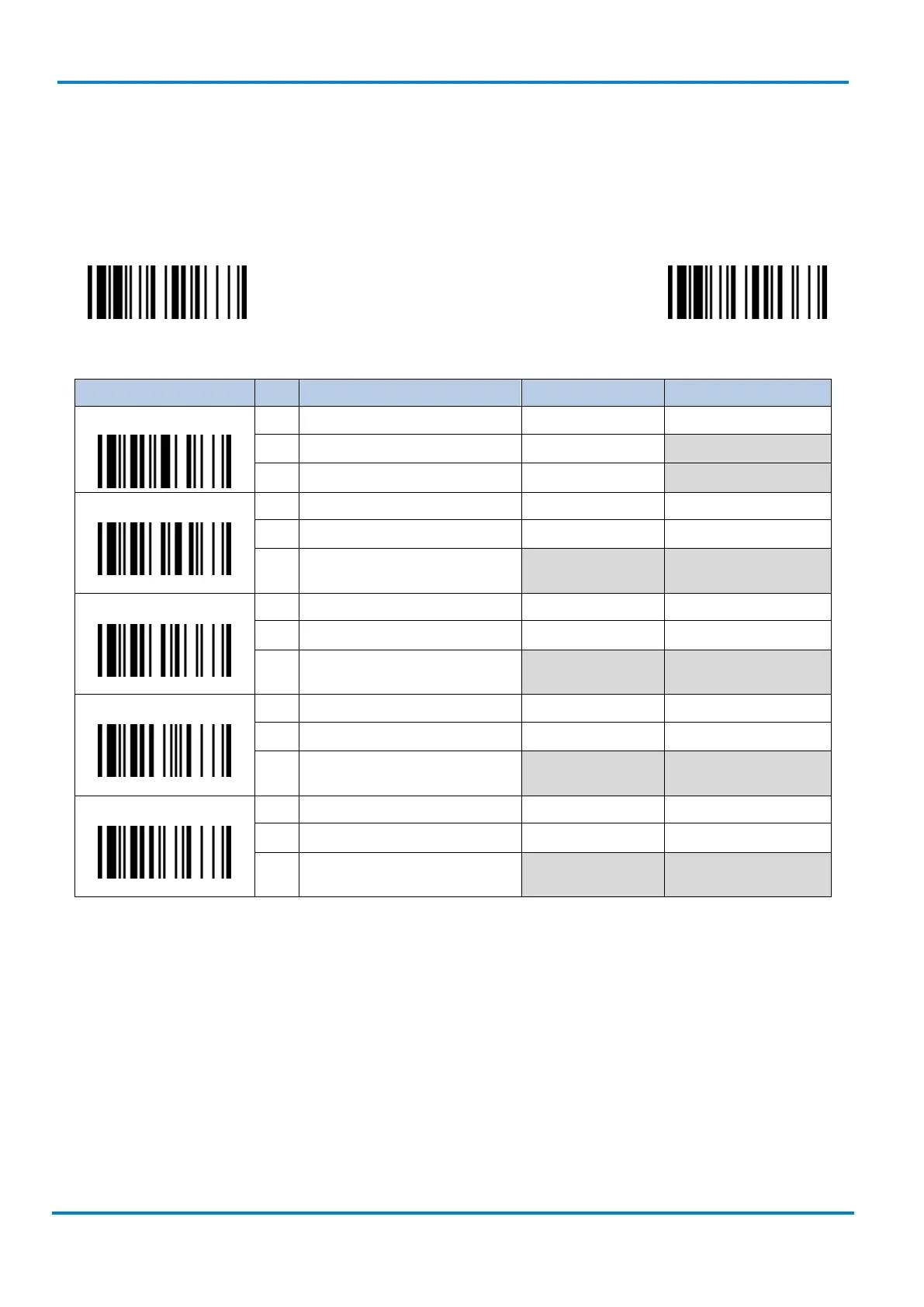

3.12.2 Data Formatter
The Data Formatter is used to edit the scanned raw data prior to transmitting the data to the host computers
or terminals. It allows you to select desired barcode symbologies for formatter control and provides Multiple
Position Insertion and Multiple Character Insertion (max three characters) in the identified position.
Family Code Selection P.C. Parameter Selection 1
st
Option Code 2
nd
Option Code
Formatter Control
SS Disable FIN
MS
Select one barcode symbology (2 digits)
Automatic termination
MS
Select all barcode symbologies 00
Automatic termination
1st insertion
SS Disable FIN
DS
Enable Position: (2 digits) [1-3 characters]; FIN
Define position (refer
to chapter 3.12.7)
max. 3 characters can be
inserted
2nd insertion
SS Disable FIN
DS
Enable Position: (2 digits) [1-3 characters]; FIN
Define position (refer
to chapter 3.12.7)
max. 3 characters can be
inserted
3rd insertion
SS Disable FIN
DS
Enable Position: (2 digits) [1-3 characters]; FIN
Define position (refer
to chapter 3.12.7)
max. 3 characters can be
inserted
4th insertion
SS Disable FIN
DS
Enable Position: (2 digits) [1-3 characters]; FIN
Define position (refer
to chapter 3.12.7)
max. 3 characters can be
inserted
While the Data Formatter is enabled, it arranges only scanned data without Preamble, Postamble, STX, ETX,
Data Length, Prefix/Suffix Symbology ID or Record Suffix. All of the above programmable parameters perform
the same function depending on your setting.
Regarding the “Bar Code Selection” and “Position Calculation” of data formatter, please refer to page 110
and 111 for details. All “Character” input should be referred to the ASCII/HEX Table listed in the Appendix
(page 119) to find matched HEX value.
