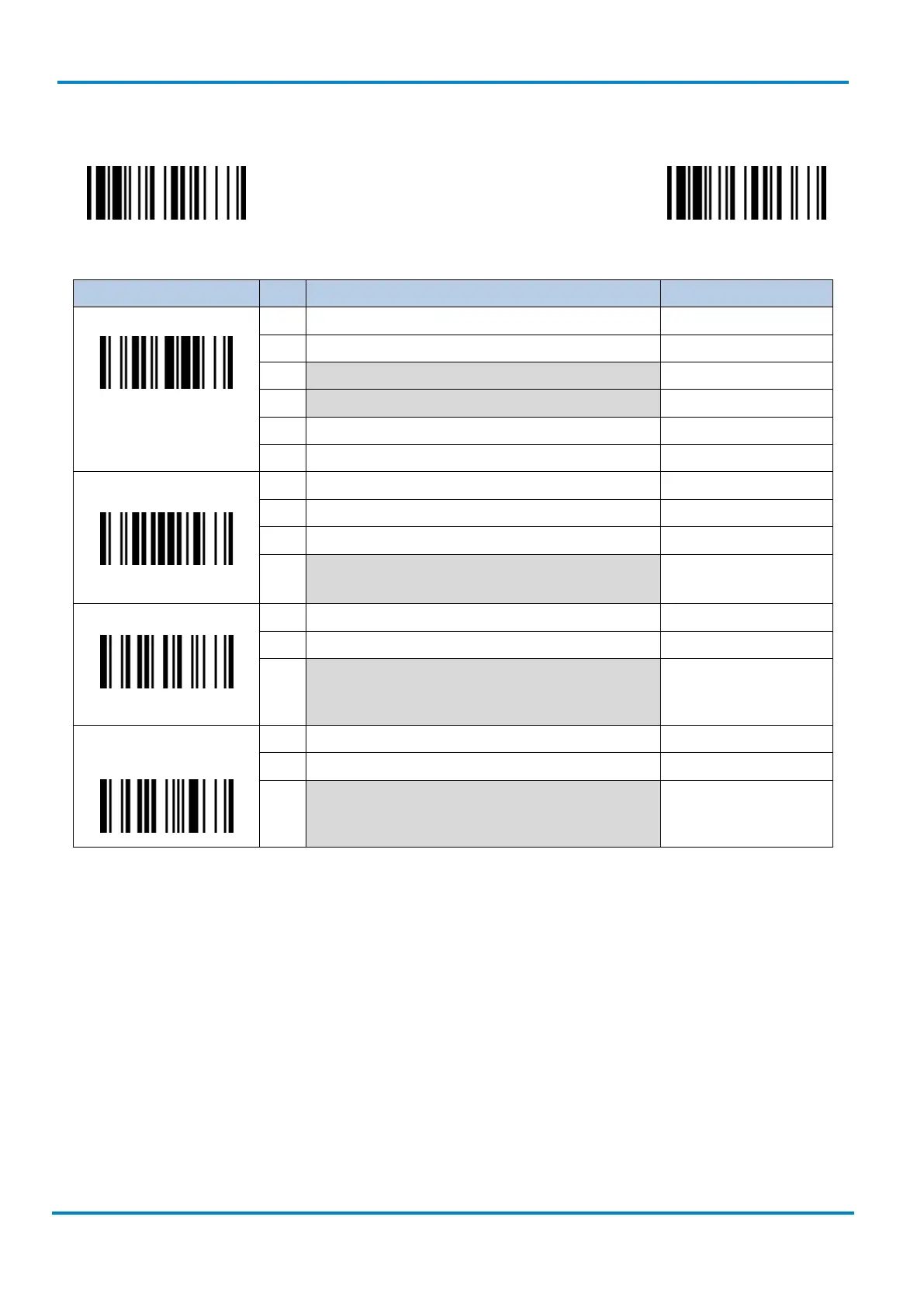

3.7.18 GS1 DataBar
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
GS1 DataBar Settings
SS Disable GS1 DataBar (RSS-14) 0
SS Enable GS1 DataBar (RSS-14)  1
SS Disable GS1 DataBar Limited 2
SS Enable GS1 DataBar Limited  3
SS Disable GS1 DataBar Expanded 4
SS Enable GS1 DataBar Expanded  5
GS1 DataBar Limited
Security Level
SS Level 1 0
SS Level 2 1
SS Level 3  2
Only available for GS1 DataBar Limited.
Only available for IDM120 series.
GS1 DataBar Min. Length
SS Default (04)  FIN
MS 01-74 (2 digits)
Only available for Expanded GS1 DataBar.
Scan 2 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
GS1 DataBar Max.
Length
SS Default (74)  FIN
MS 01-74 (2 digits)
Only available for Expanded GS1 DataBar.
Scan 2 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
GS1 128 Limited Security Level
The scanner IDM120 series offers three levels of decode security for GS1 DataBar Limited bar codes:
• Level 1: If you failed to read poorly-printed or out-of-spec. bar codes in level 2, please select level 1.
This is the most aggressive setting and may increase the misread.
• Level 2: If you are experiencing misread of poor-printed or out-of-spec. bar code in level 3, please
select level 2.
• Level 3: This is the default setting which allows the scanner to operate fastest, while providing
sufficient security in decoding "in-spec." GS1 128 Limited” bar codes.
