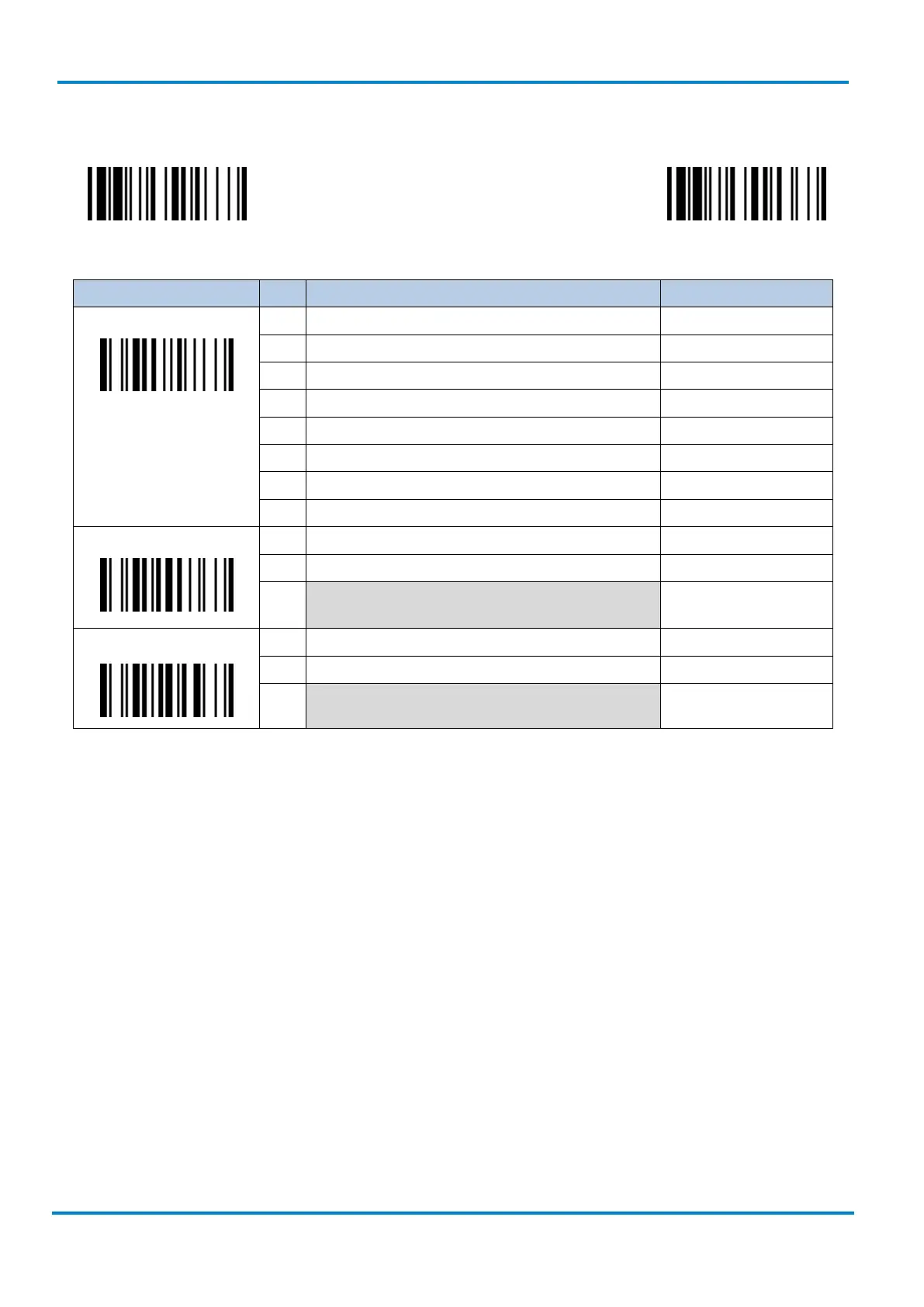

3.7.22 Data Matrix
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Data Matrix Settings
SS Disable Data Matrix 0
SS Enable Data Matrix  1
SS Disable Data Matrix Inverse Reading 4
SS Enable Data Matrix Inverse Reading 5
SS Auto Detect Data Matrix Inverse Reading  6
SS Disable Data Matrix Mirror Images 7
SS Enable Data Matrix Mirror Images 8
SS Auto Detect Data Matrix Mirror Images  9
Data Matrix Min. Length
SS Default (0001)  FIN
MS 0001-3116 (4 digits)
Scan 4 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
Data Matrix Max. Length
SS Default (3116)  FIN
MS 0001-3116 (4 digits)
Scan 4 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
