6 Technical data
6.1 Connections in analyzer
Power supply
The power supply is located on the left on the analyzer.

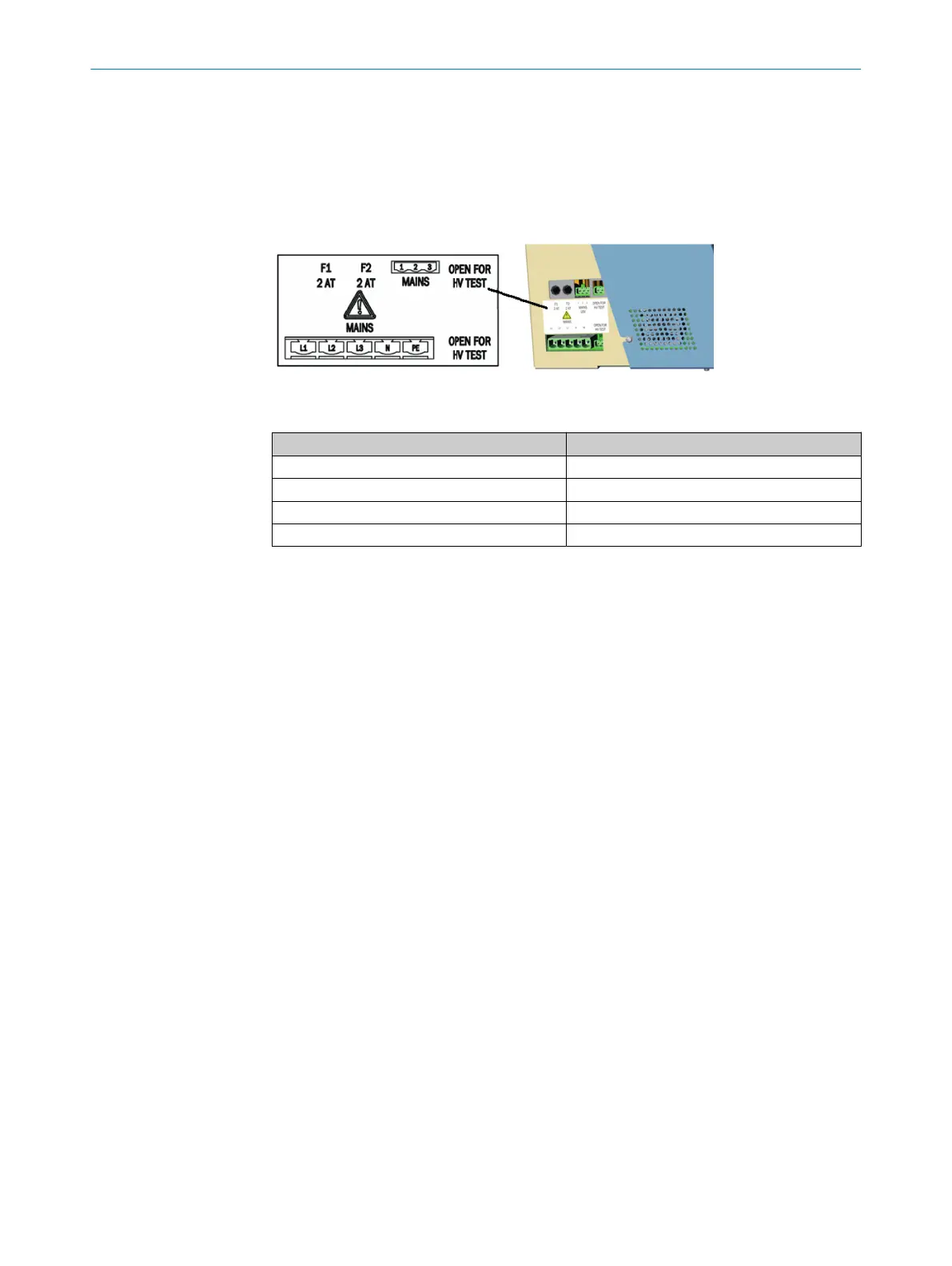

Figure 7: Connections, power supply
Table 12: Connections, power supply
Designation Supply
MAINS UPS (3-pole) Power supply for electronics unit (internal)
MAINS (5-pole) External power supply
F1 Internal
F2 Internal
More information
Connections and interfaces of further modules
b
See Operating Instructions, Section 11.10
TECHNICAL DATA 6
