5 Installation/Mechanical connection
MA = 1 Nm +/- 0.3 Nm
Figure 11: Pressure connection for G ¼ female thread

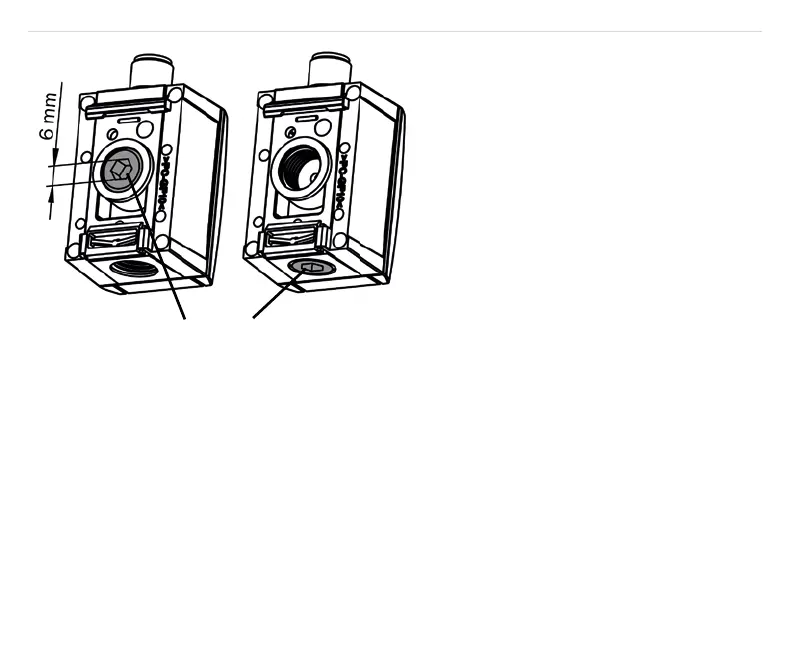

5.5Pressureconnectionviatheplugconnectionforthepneumatichose(push-intting,Figure12)
The plug connection is suitable for pneumatic hoses with a 4 mm diameter. Once inserted, check that the
pneumatic hose has been positioned correctly before loading the pressure switch with pressure. The rear
G ¼ female thread must be sealed using the supplied dummy plug. Insert the seal for the dummy plug and
tighten the dummy plug using an Allen key (6 mm) with a tightening torque of 1 Nm ±0.3 Nm. To remove
the pneumatic hose, press against the gray plastic ring on the plug connection and carefully take out the
pneumatic hose.
