5. COMMISSIONING, OPERATION

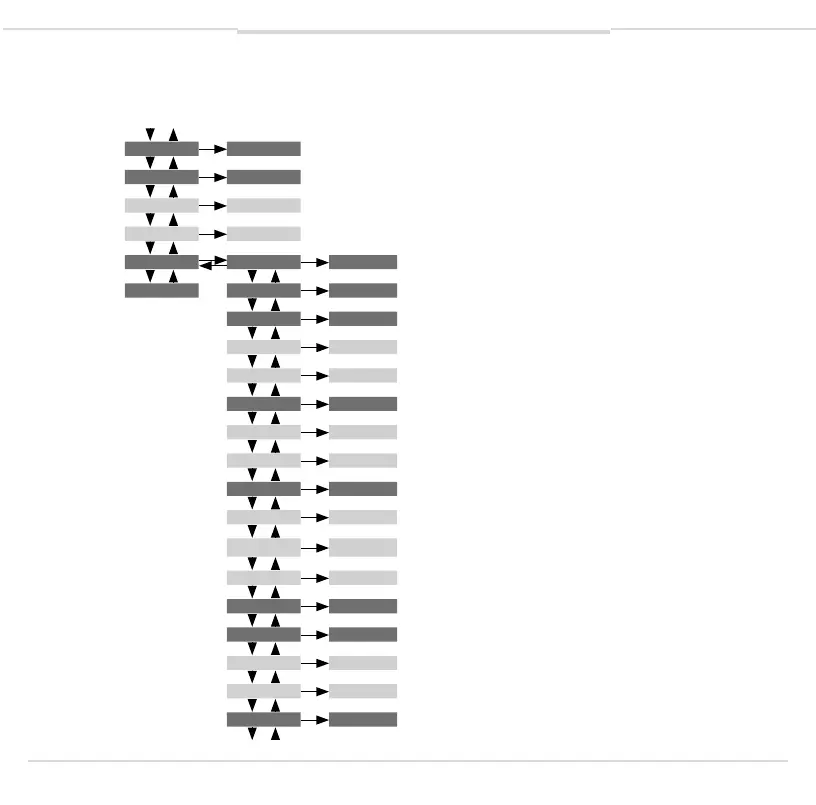

5.8 Menu tree
Certain menu items (light gray) are only displayed if the pressure switch features the respective
option.
SP1 / FH1 Value Switching point/Window High (switching output 1)
RP1 / FL1 Value Reset switching point /Window Low (switching output 1)
SP2 / FH2 Value Switching point/Window High (switching output 2)
RP2 / FL2 Value Reset switching point /Window Low (switching output 2)
EF RES Yes / No Reset to factory settings
END DS1 Value Switching delay (switching output 1)
DR1 Value Reset switching delay (switching output 1)
DS2 Value Switching delay (switching output 1)
DR2 Value Reset switching delay (switching output 1)
OU1 PARA Switching function (switching output 1)
OU2 PARA Switching function (switching output 2)
OU3 PARA Output signal switchover (analog signal)
POL1 PARA Switching logic (switching output 1)
POL2 PARA Switching logic (switching output 2)
ALOW Value Measuring range scaling/Turn down (analog output, start value)
AHGH Value Measuring range scaling/Turn down (analog output, end value)
AVGD Value Attenuation (digital display)
AVG1 Value Attenuation (switching output 1)
AVG2 Value Attenuation (switching output 2)
AVG3 Value Attenuation (analog output)
UNIT Unit Unit switchover
