5. COMMISSIONING, OPERATION
0SET Yes / No Zero point adjustment
DISM PARA Display value in display mode
DISU Value Update rate (digital display)
DISR Yes / No Turn display 180° (digital display)
DRES PARA Resolution (digital display)
RHL Yes / No Delete min/max memory
PAS Value Password entry
TAG Value Measurement device name (TAG)
END
5.9 Switching functions
Hysteresis functions
If the system pressure is uctuating around the set value,
the hysteresis keeps the output state of the outputs stable.
In the event of rising system pressure, the output switches
upon reaching the switching point (SP).
 N/O contact (HNO): Active
 N/C contact (HNC): Deactivated
If the system pressure drops again, the output does not
switch back until the reset point (RP) has been reached.
 N/O contact (HNO): Deactivated
 N/C contact (HNC): Active

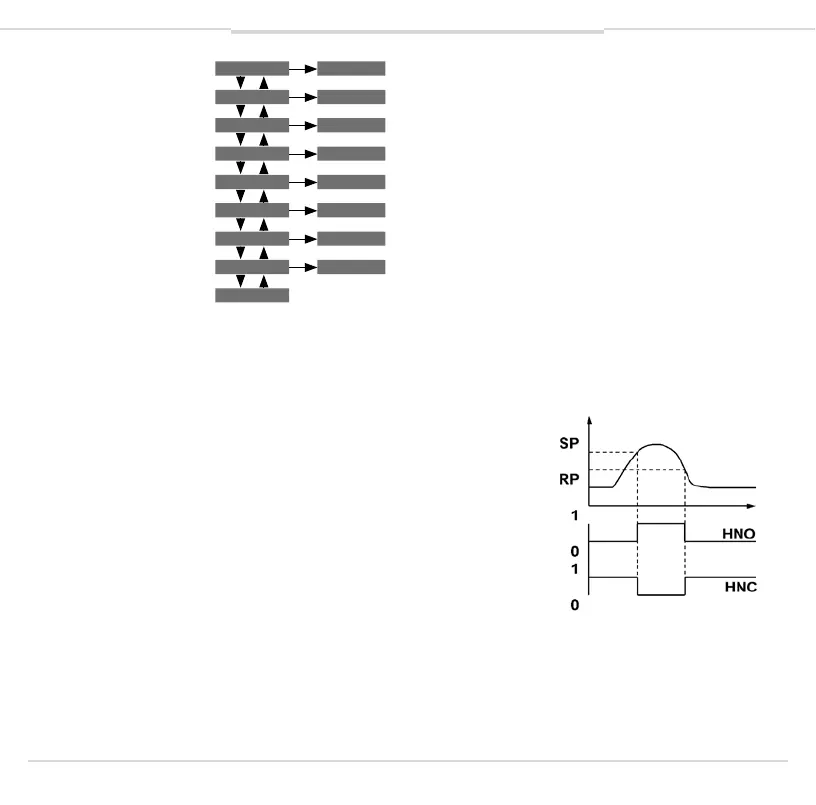

Fig.: Hysteresis function
