5. COMMISSIONING, OPERATION
Window function
The window function enables monitoring of a dened range.
If the system pressure is between window High (FH) and
window Low (FL), the output switches.
 N/O contact (FNO): Active
 N/C contact (FNC): Deactivated
If the system pressure is outside window High (FH) and
window Low (FL), the output does not switch.
 N/O contact (FNO): Deactivated
 N/C contact (FNC): Active

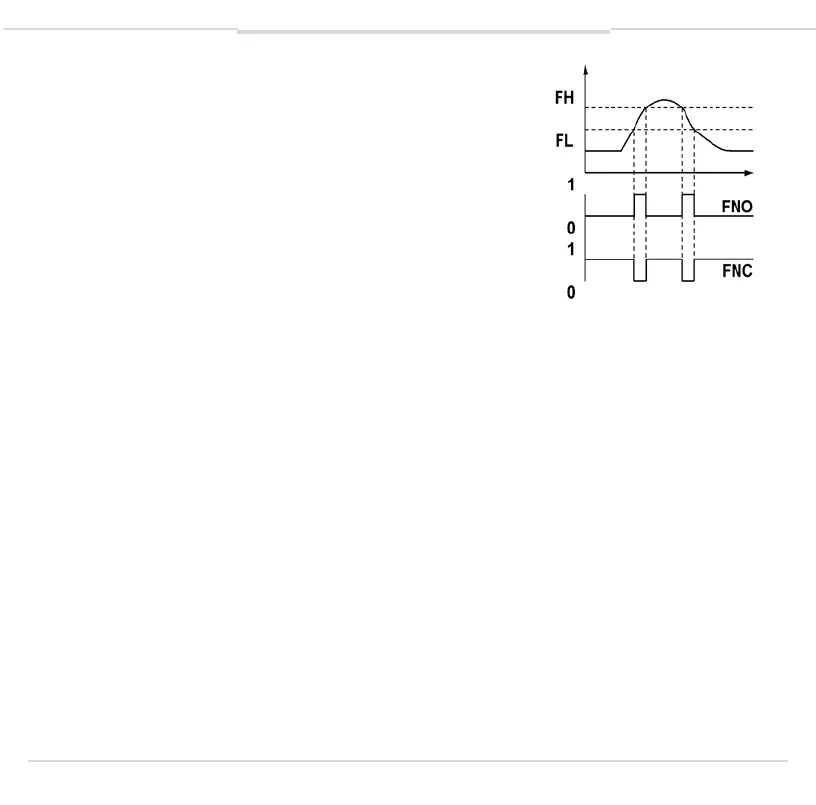

Fig.: Window function
