SICK PGT-12-Pro User Manual

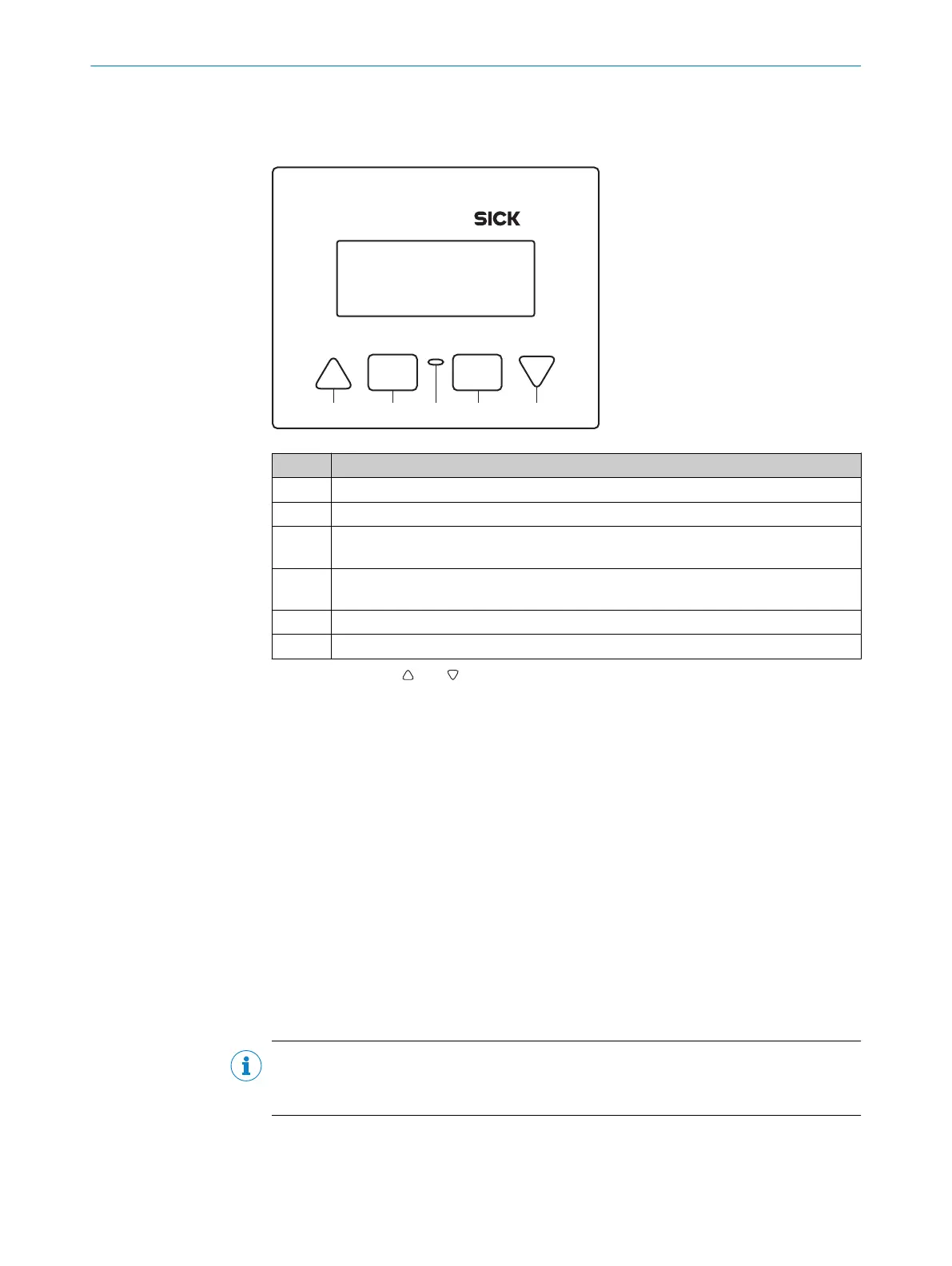

5 Control elements
Sensor Intelligence.
Esc Enter
PGT-12-Pro
1
2 3 4 5 6
No. Description
1 LC display with four lines of 16 characters each
2 "Up" arrow pushbutton
3 Esc pushbutton (jump to the menu level above, if pressed in the main menu the
PGT-12-Pro switches off)
4 Communication LED (lights up green when data is being transmitted from or to the
device)
5 Enter pushbutton (confirm an entry or jump to the menu level below)
6 "Down" arrow pushbutton
Arrow pushbuttons and :
•
Cycle back and forth in the menu
•
Choose between several parameter values
•
Set parameter values (see "Description of operation")
Enter pushbutton:
•
Switch to a sub menu/function
•
Move to the next digit to the right when entering digits
•
Confirm digit entry when the rightmost digit is "active"
Esc pushbutton:
•
Switch to a higher menu level
•
Move to the next digit to the left when entering digits
•
Cancel digit entry if the first digit is "active"
6 Description of operation
6.1 Selecting the menu language
NOTE
Changing the menu language does not affect the Setup menu. This is always displayed
in English.
•
Select Setup Menu in the main menu.
•
Select the desired menu language under Set Menu Language.
OPERATING INSTRUCTIONS
8019724/1EJJ/2022-01-05 | SICK O P E R A T I N G I N S T R U C T I O N S | PGT-12-Pro
25
Subject to change without notice
