Sensor T4000-DNAC with plug connector M8, 3-pin (with latching and screw connec‐
t
ion)

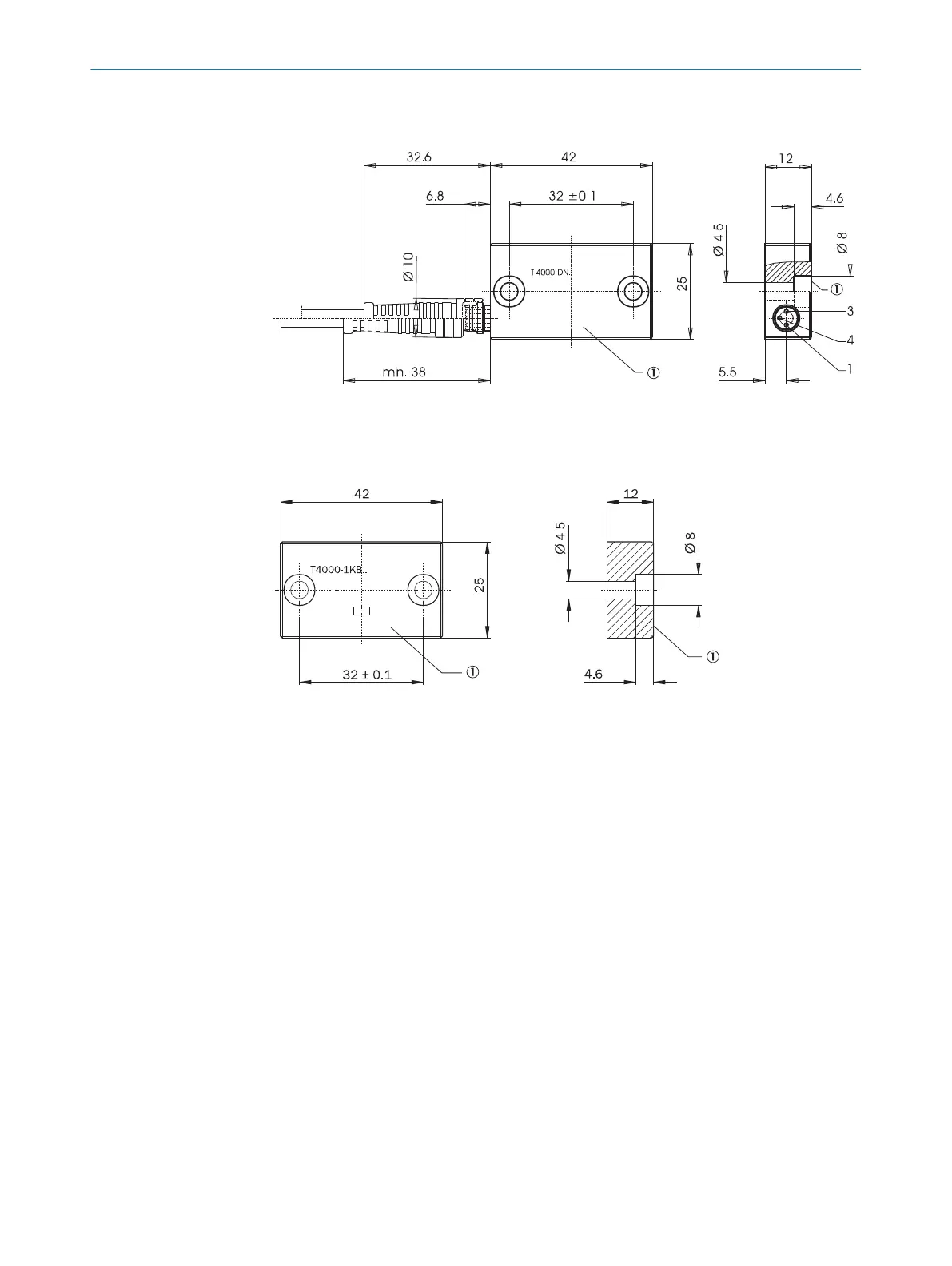

Figure 13: Dimensional drawing of sensor T4000-DNAC (mm)
1
Sensing face
T4000-1KBA actuator
Figure 14: Dimensional drawing of actuator T4000-1KBA (mm)
1
Sensing face
