11.4 Dimensional drawings
Evaluation units T4000-1RCA02 and T4000-1RCA04
45
9
9
114

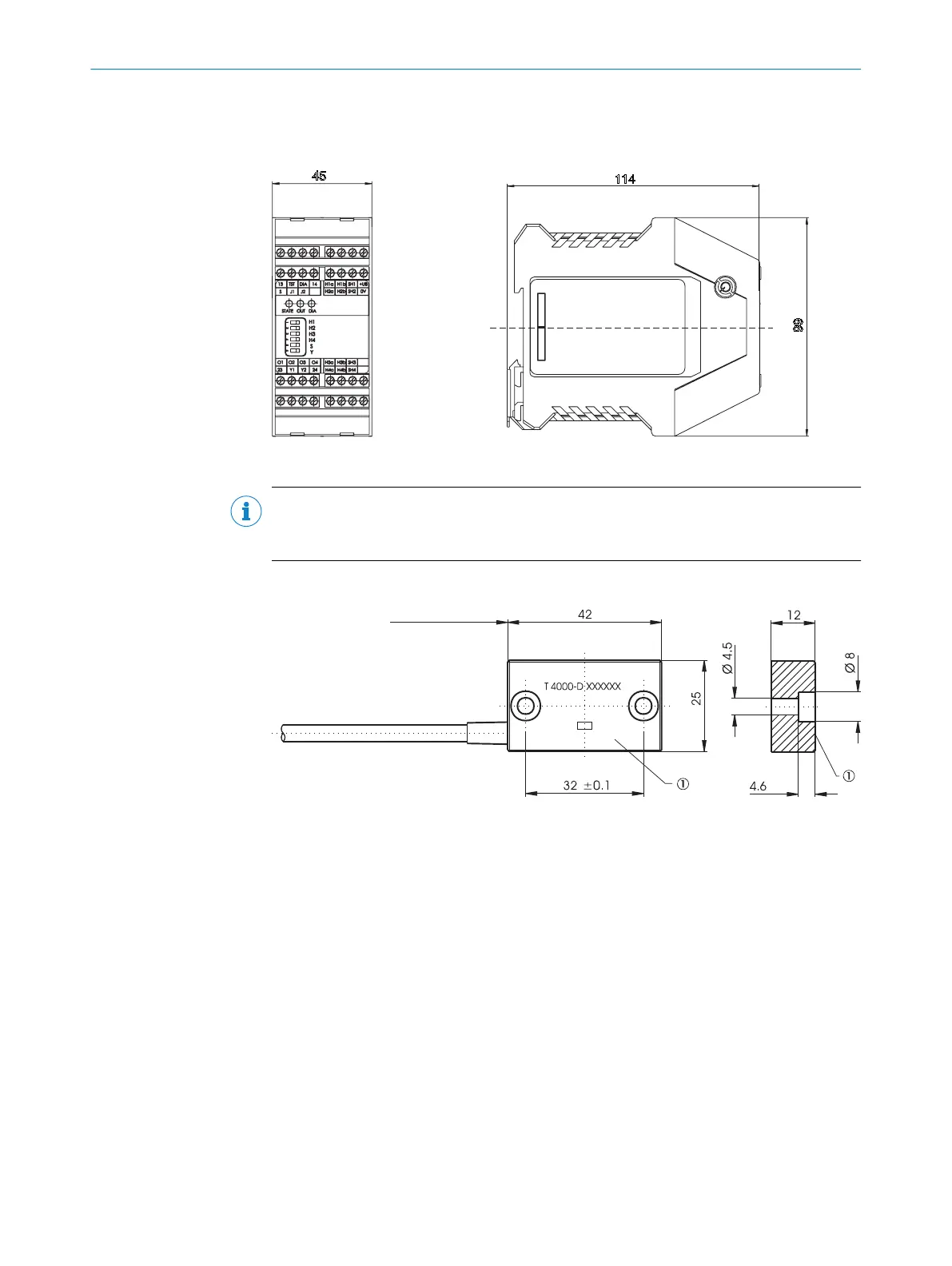

Figure 11: Dimensional drawing for evaluation units T4000-1RCA02 and T4000-1RCA04 (mm)
NOTE
T
he dimensions of the evaluation units T4000-1RCA02 and T4000-1RCA04 are identi‐
cal. The evaluation unit T4000-1RCA04 is shown.
Sensor T4000-DNA..P (with permanently connected cable)
Figure 12: Dimensional drawing of sensor T4000-DNA..P (mm)
1
Sensing face
