5.3 Mutual interference
NOTE
Optical sensors and other IR light sources can influence the measurement and detec‐
tion capabilities of the device.
The device has been designed to minimize the probability of mutual interference with
devices of the same type. To rule out even the slightest effects on the measurement
accuracy, the devices should be arranged such the laser beams are not received by
another device.

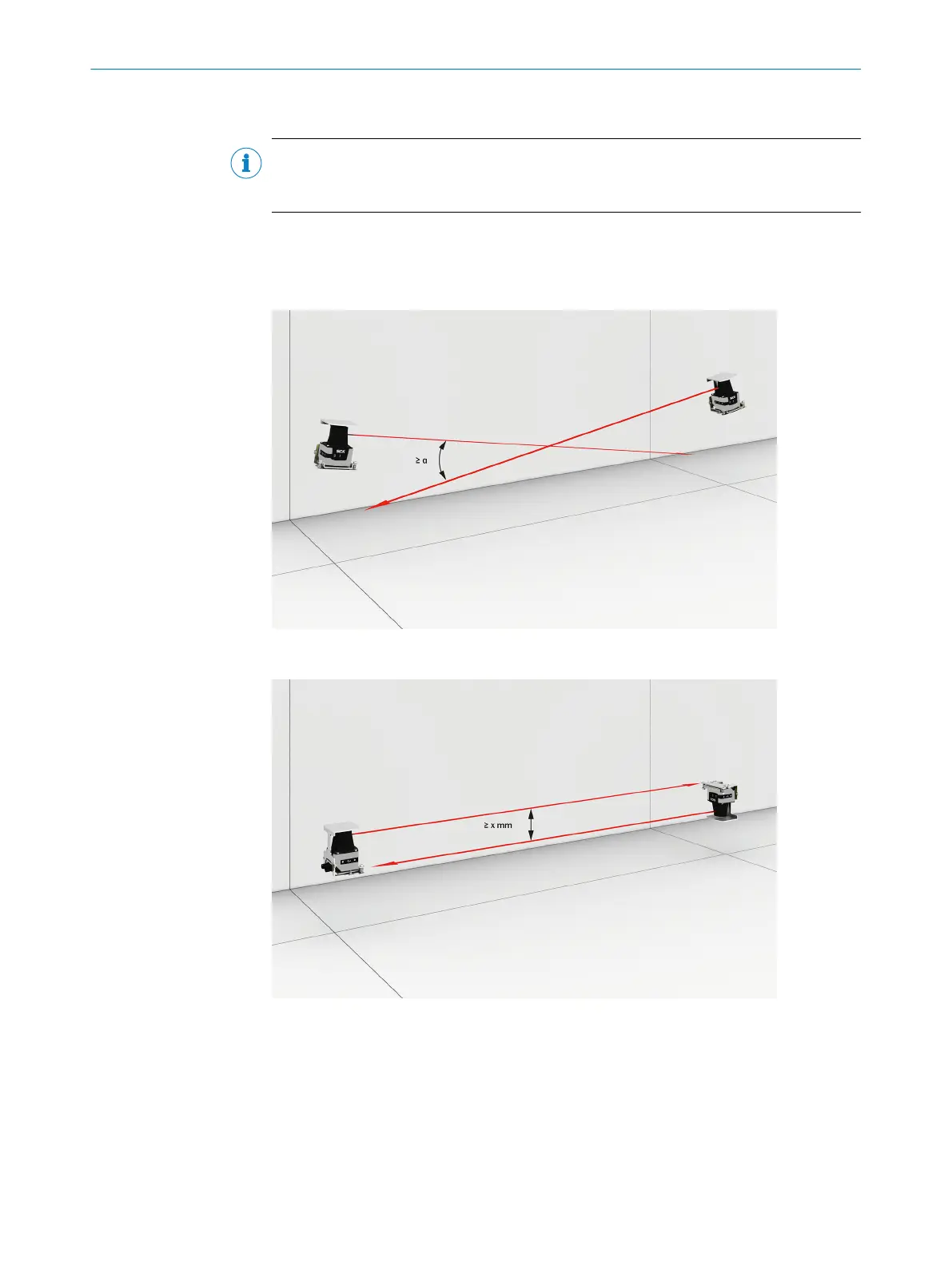

Figure 17: Angle ≥ 6°
Figure 18: Distance ≥ 200 mm
5
MOUNTING
