Switch setting Function
OFF CDM420-0006 and device disconnected from supply voltage.
Recommended setting for all connection work.
13.4.4 Connecting serial host interface RS-232 of the device in CDM420-0006
Device 1 CDM420-0006 Host
5
.
.
.
TxD
RxD
RxD
TxD
GND
GND
GND
12
1
9
7
6
34
T/TxD
35
R/RxD
36
GND
6
Shield
RS-232 RS-232
ON
OFF
S2 : RS 485
ON
OFF
S3: Term 422
S2
OFFON
2
3
3
1
7
2
6
5
4
8
13
14
17
15
9
10
12
16
11
110
15
6
11
5
5 4

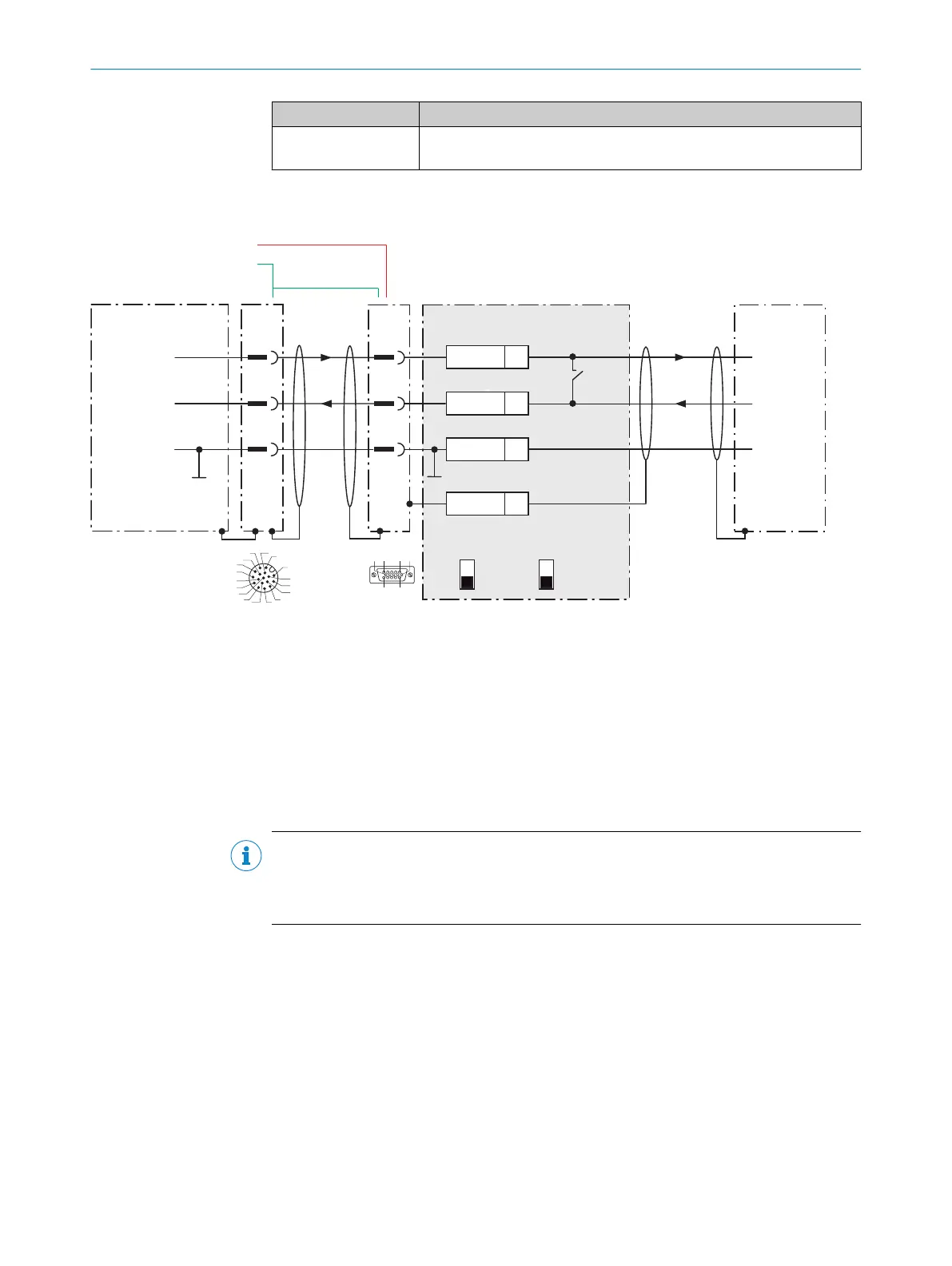

Figure 36: Wiring data interface RS-232 of the device in the connection module CDM420-0006
1
Device
2
Connecting cable for 15-pin male connector (not available)
3
Adapter cable (male connector, D-Sub-HD, 15-pin / female connector, M12, 17-pin, A-coded)
4
Connection module: female connector, D-Sub-HD, 15-pin
5
Male connector, M12, 17-pin, A-coded
NOTE
Control the RS-232 data interface in the device with the API functions. In order to acti‐
vate the RS-232 data interface, use an installed SensorApp which contains this func‐
tion.
13.4.5 Connecting serial host interface RS-422 of the device in CDM420-0006
13 ANNEX
66
